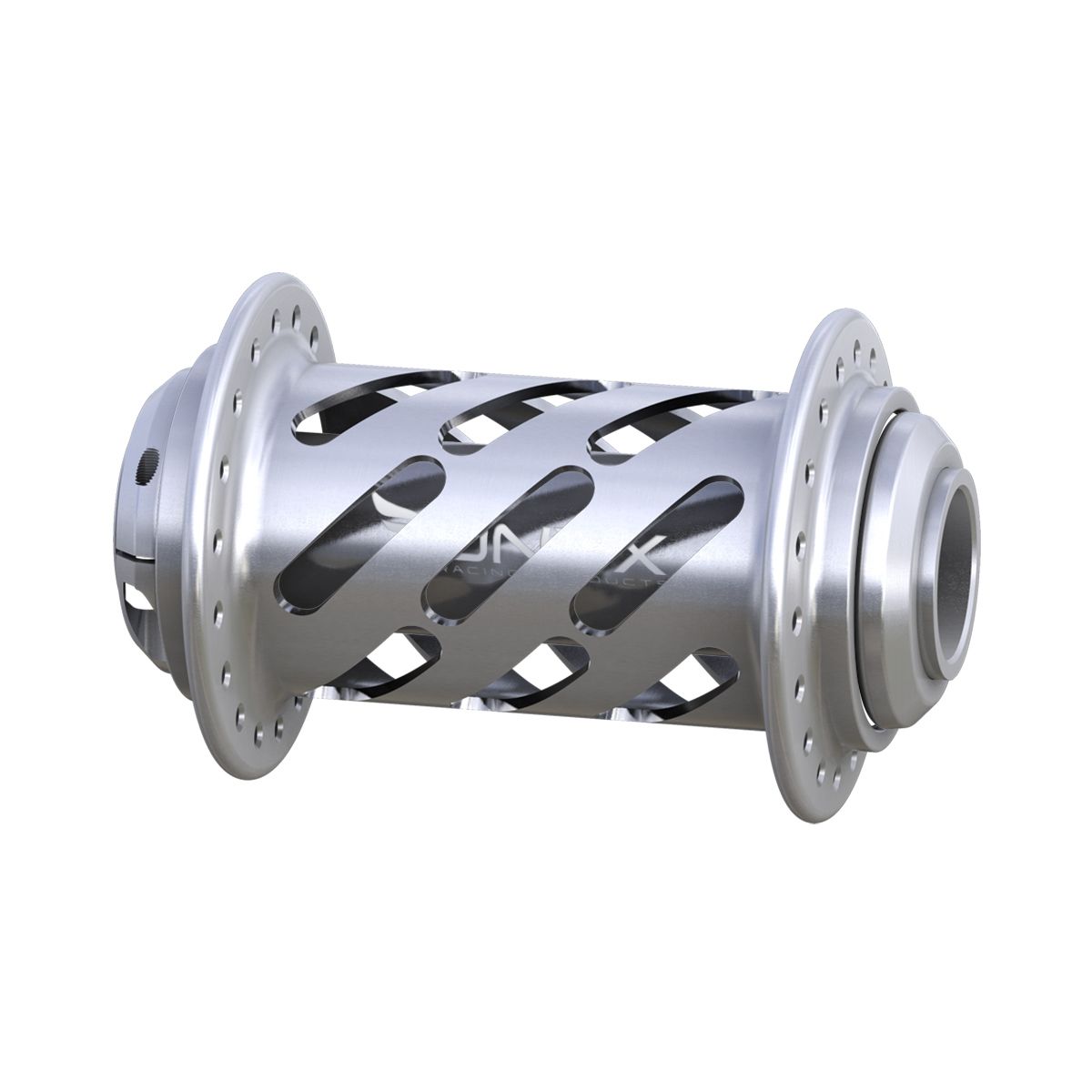

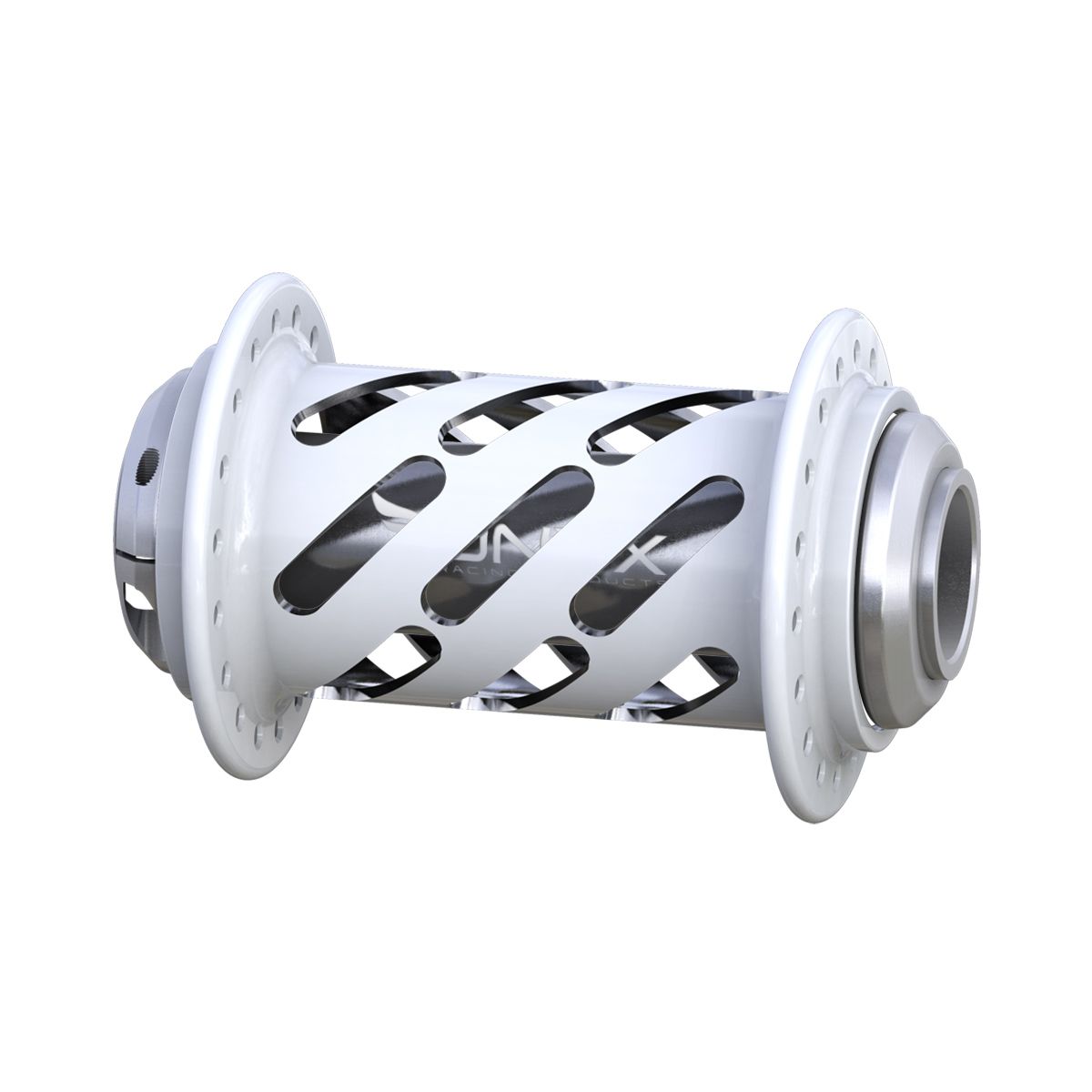

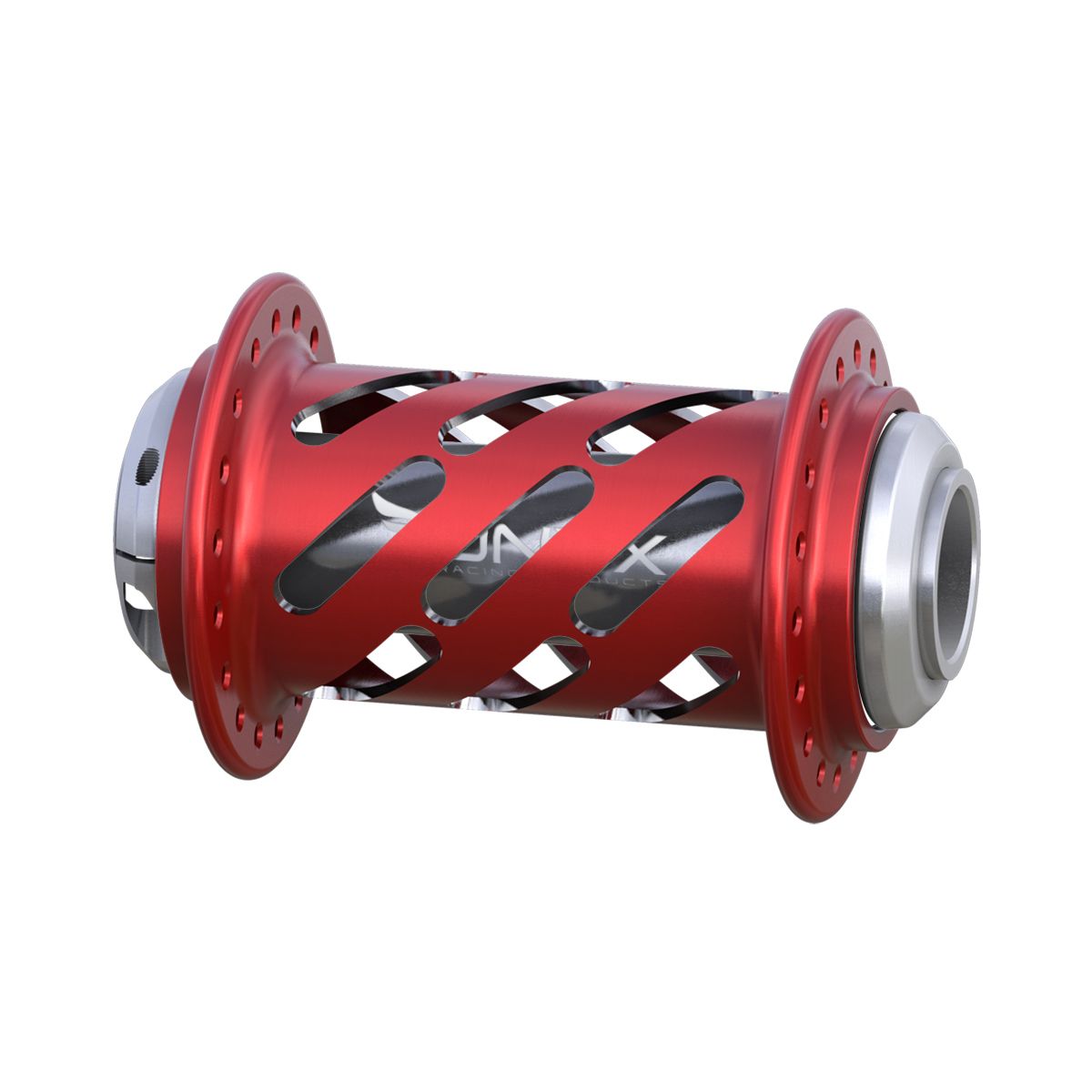

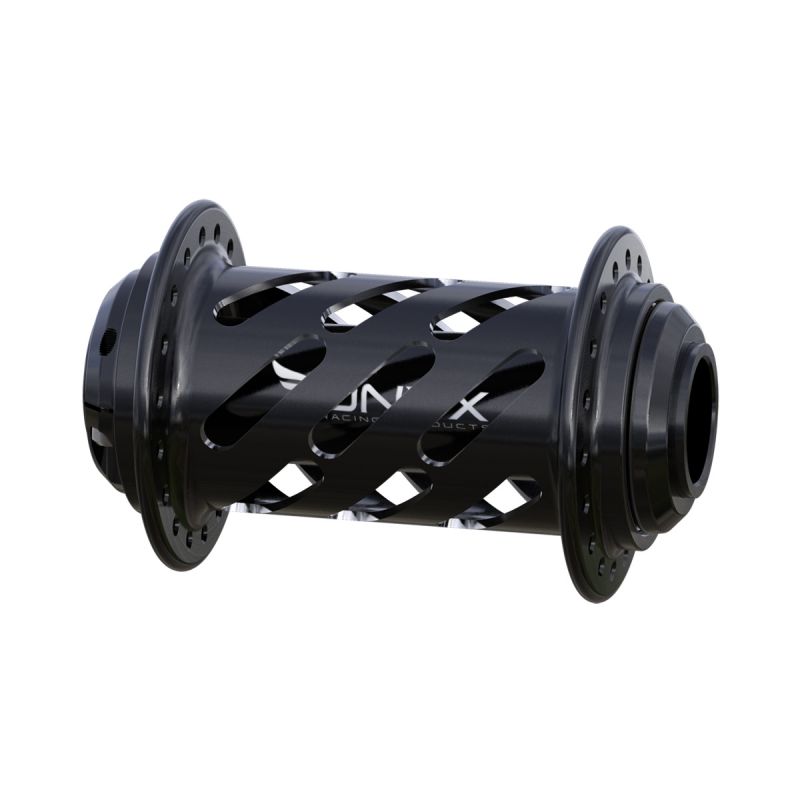

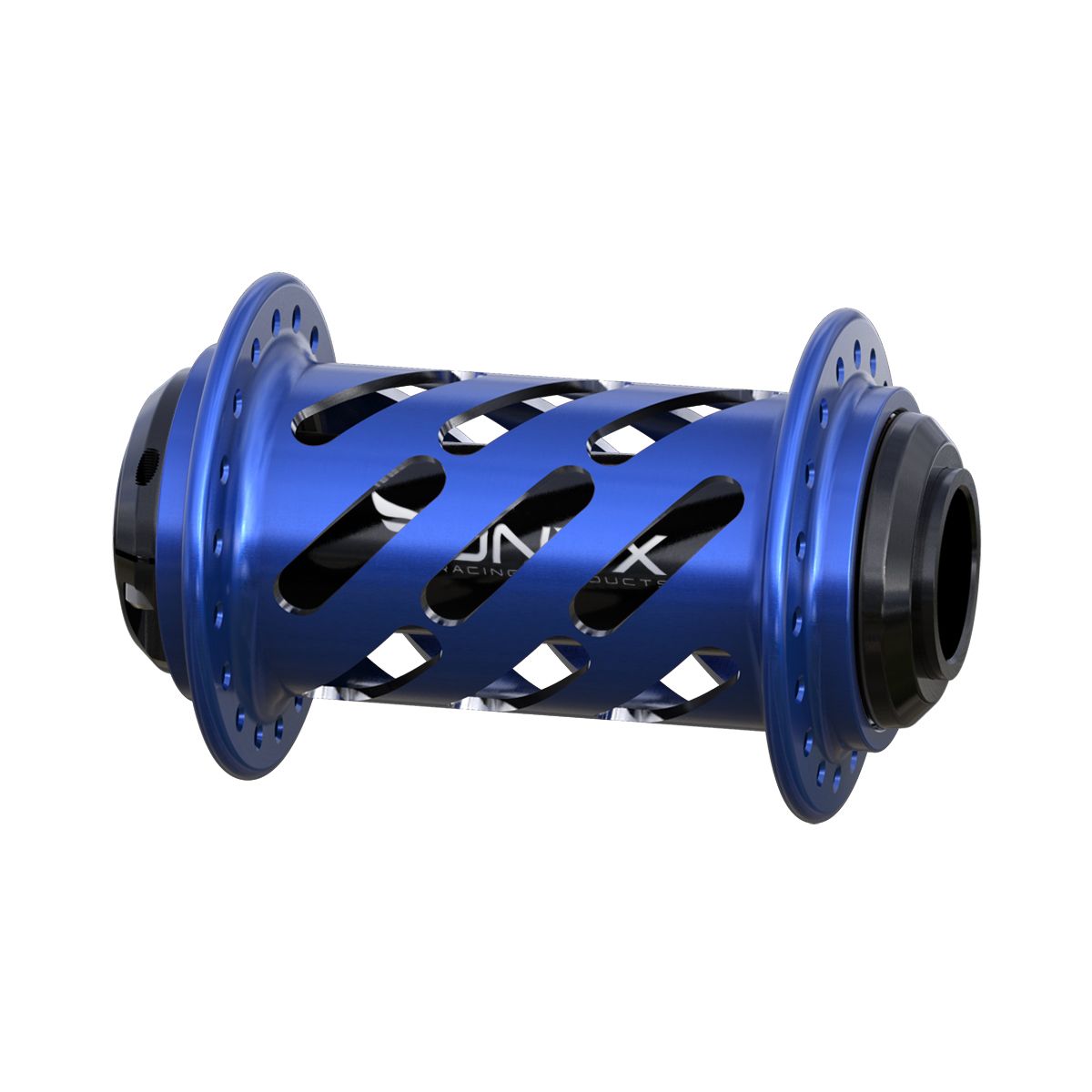

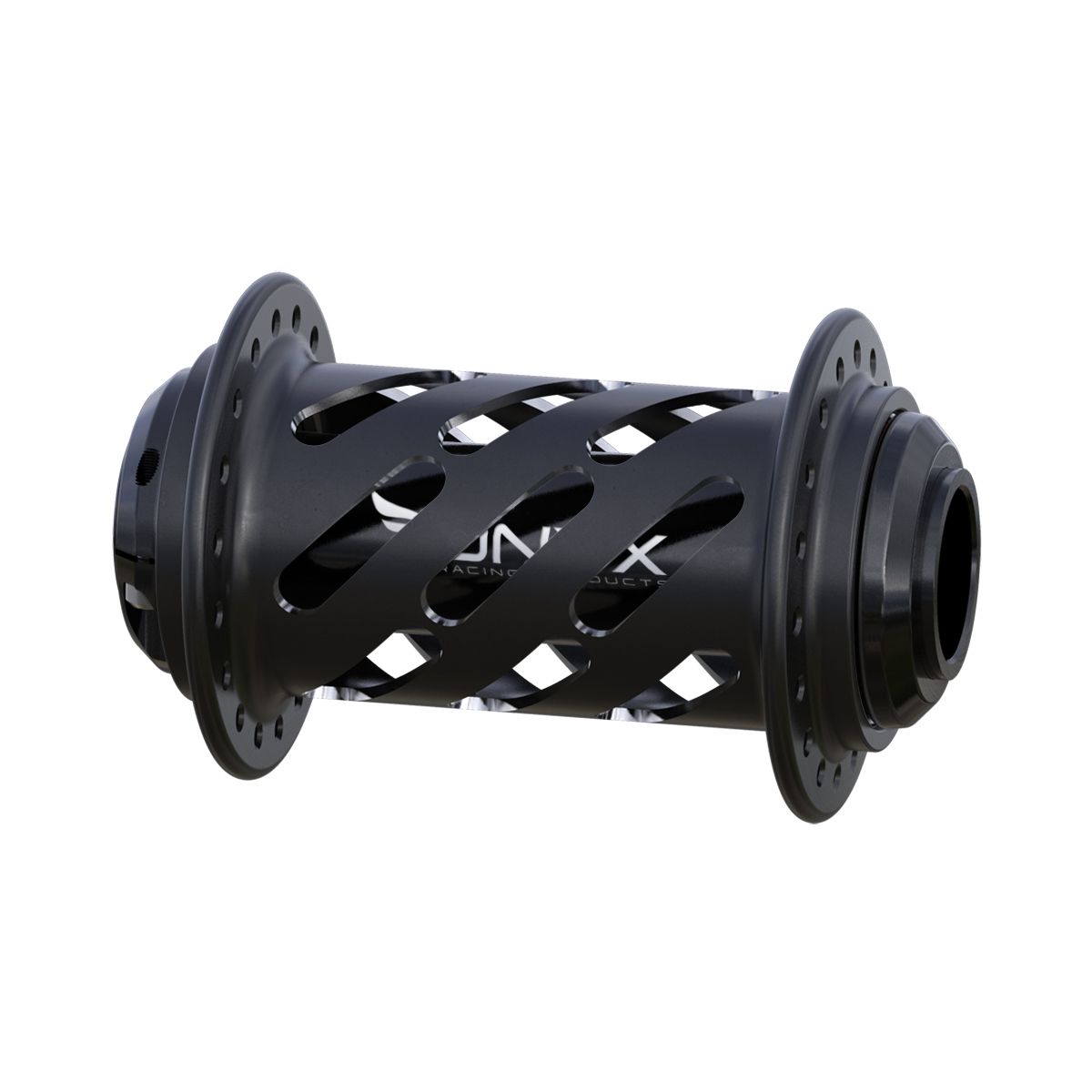

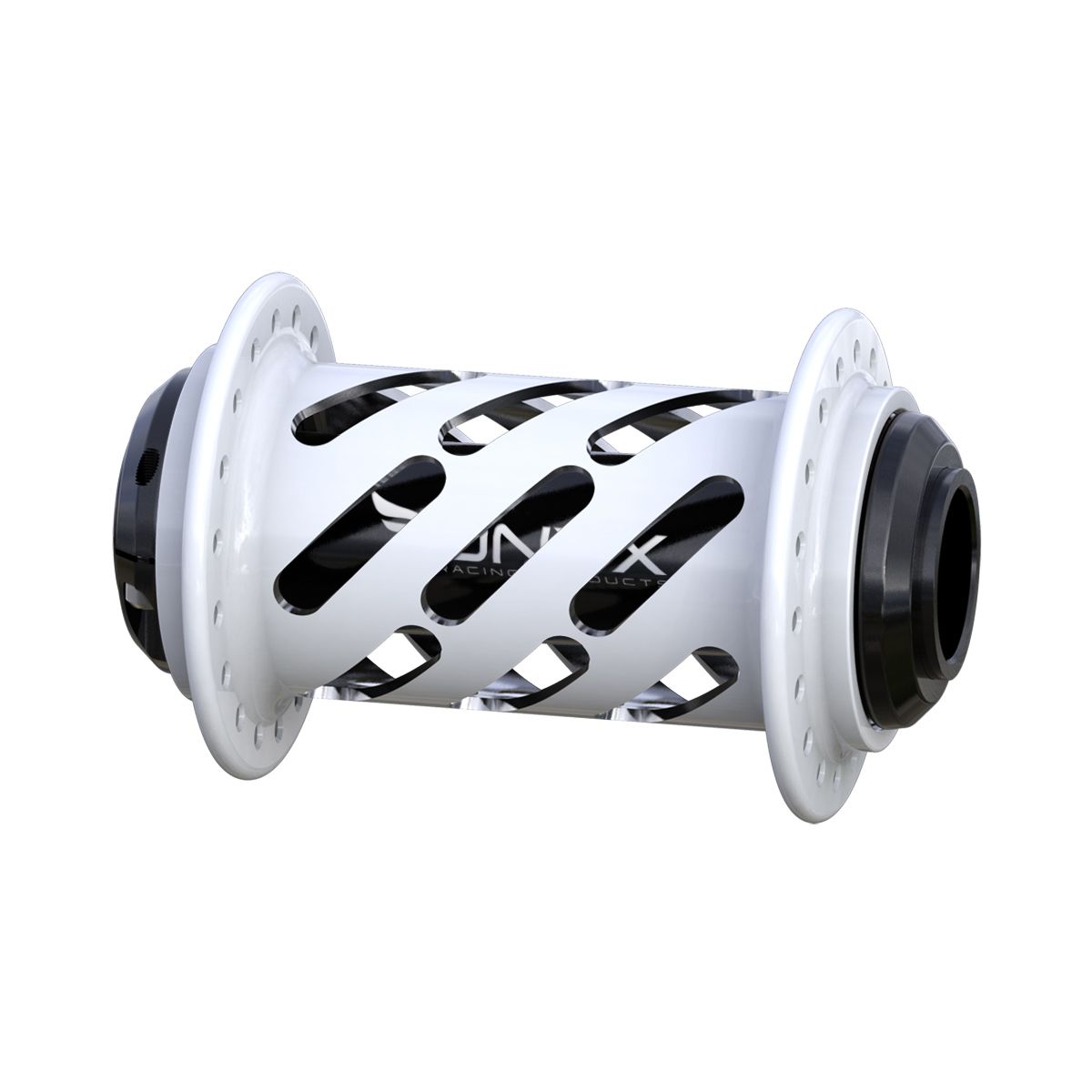

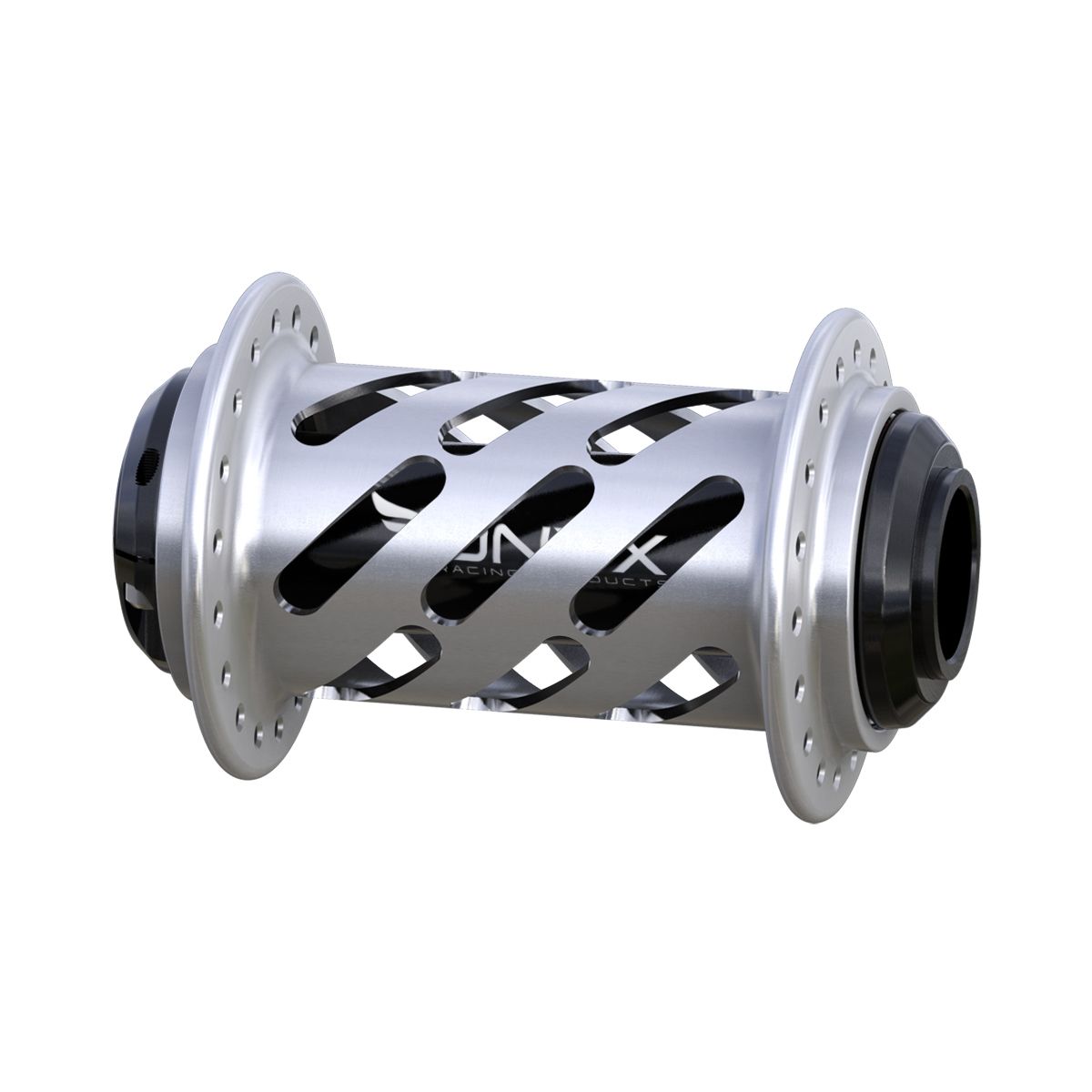

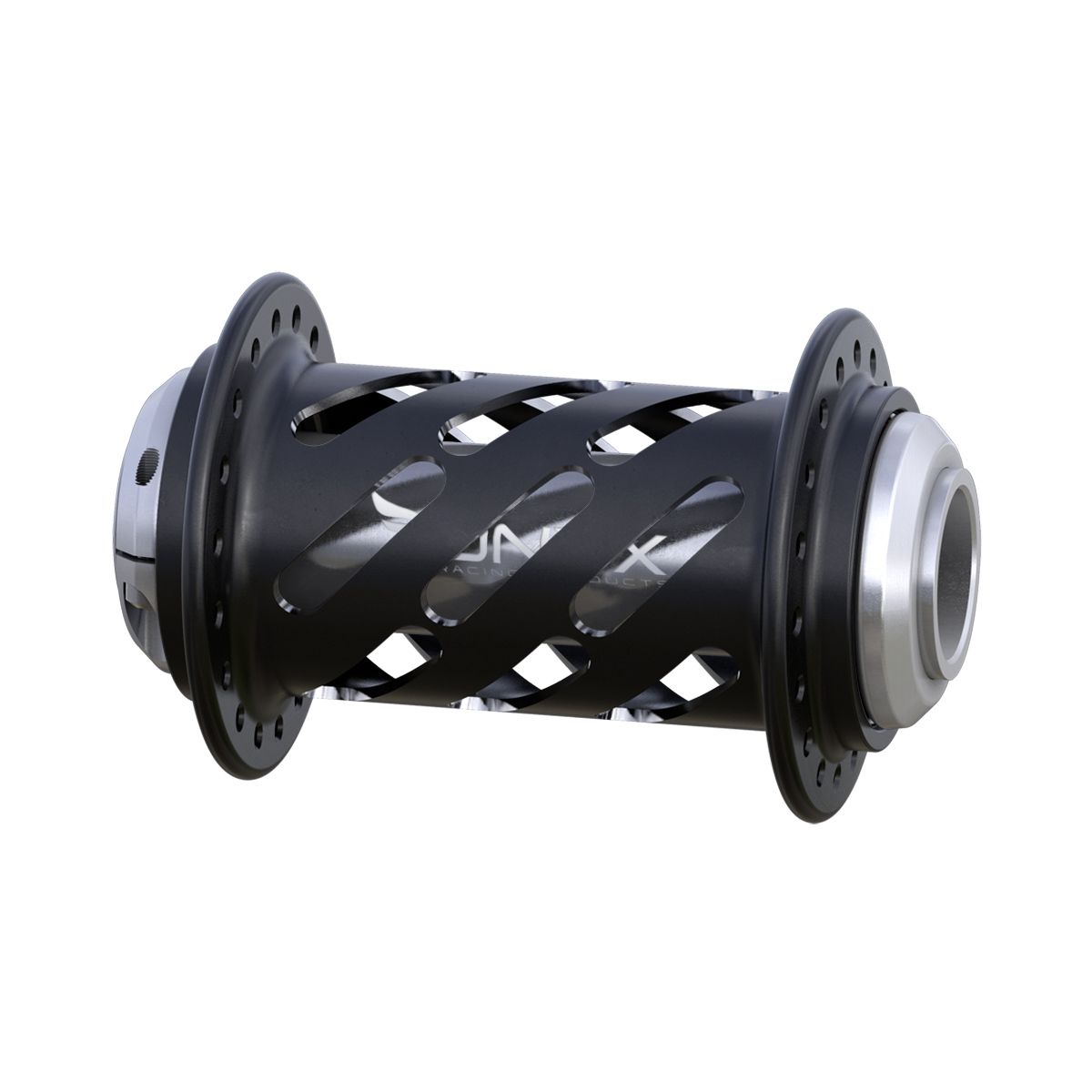

ONYX helix 20mm Front hub 36H

Intended for riders riding with a 20mm axle diameter fork, the ONYX Helix front hub offers BMX riders the famous quality of ONYX products made in the USA: high-end machined aluminum and hybrid-ceramic bearings which have a very low coefficient. friction and excellent power transfer.

• CNC machined and perforated 7075-T6 aluminum body
• Sealed hybrid-ceramic bearings
• Aluminum axle body
• Axle diameter: 20mm thru
• Width: 100mm
• Drilling: 36 holes
• Weight: 238g

Axle sold separately

NOTE: color shade may vary slightly depending on production run

ONYX hubs require regular maintenance to maintain full operation
ONYX Maintenance Videos


More details

269,99 € Tax incl.

Recommended retail price : 269,99 € TTC

Availability :

Reference Bar Code Colors Unit price Avail. Quantity
ONYHUBS011 151424420117 Black
269,99 €
ONYHUBS013 151424420131 White
269,99 €
ONYHUBS012 151424420124 Polished
269,99 €
ONYHUBS015 151424420155 Blue
269,99 €
ONYHUBS014 151424420148 Red
269,99 €
ONYHUBS016 151424420162 mat black
269,99 €


A - Hub Center To Flange Center, Non-Drive Side 34.8mm
B - Hub Center To Flange Center, Drive Side 34.8mm
C - Axle Width 100mm
Spoke Hole Circle Diameter, Drive Side 50mm
Spoke Hole Circle Diameter, Non-Drive Side 50mm
Spoke Hole Counts 36
Spoke Tension 120kgf Max



Wheel types Front
Axle Diameters 20mm
Spokes 36
