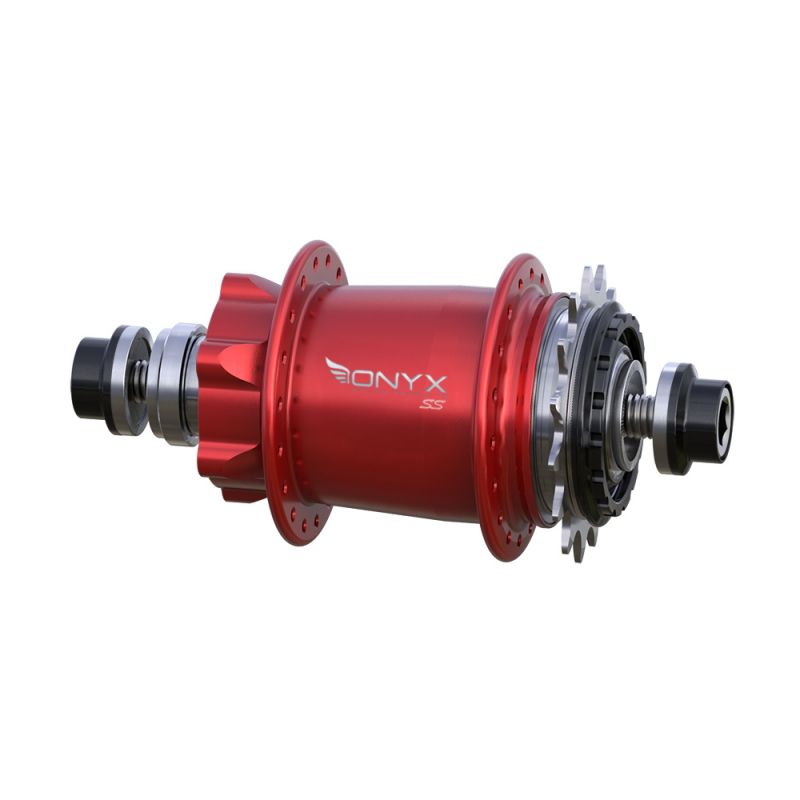

ONYX ultra SS ISO 10mm Rear hub 36H

Machined from high-end aluminum, the ONYX Ultra SS rear hub offers BMX riders the famous quality of ONYX products made in the USA. It is equipped with the ONYX instant engagement system offering you direct engagement without any friction when pedaling. It is mounted on hybrid-ceramic bearings which have a very low coefficient of friction and excellent power transfer. It is also equipped with a 6 screw ISO type disc holder for pilots who wish to switch to disc braking.

• CNC machined 7075-T6 aluminum body
• Sealed hybrid-ceramic bearings
• ISO disc rotor bracket
• Aluminum freehub body - ONYX SS standard
• ONYX Instant engagement
• Aluminum axle body
• BTR screw tightening
• Axle diameter: 10mm
• Width: 110mm
• Drilling: 36 holes
• Weight: 575g

Cog sold separately

NOTE: color shade may vary slightly depending on production run

ONYX hubs require regular maintenance to maintain full operation
ONYX Maintenance Videos


More details

679,99 € Tax incl.

Recommended retail price : 679,99 € TTC

Availability :

Reference Bar Code Colors Unit price Avail. Quantity
ONYHUBS301 151424423019 Black
679,99 €
ONYHUBS305 151424423057 Blue
679,99 €
ONYHUBS304 151424423040 Red
679,99 €
ONYHUBS303 151424423033 Polished
679,99 €
ONYHUBS302 151424423026 mat black
679,99 €
ONYHUBS306 151424423064 White
679,99 €


A - Hub Center To Flange Center, Non-Drive Side 20.27mm
B - Hub Center To Flange Center, Drive Side 28mm
C - Axle Width 110mm
Spoke Hole Circle Diameter, Drive Side 60mm
Spoke Hole Circle Diameter, Non-Drive Side 60mm
Spoke Hole Counts 36
Spoke Tension 120kgf Max



Wheel types Rear
Hub types Direct Engagement
Axle Diameters 10mm
Spokes 36
Braking types Disc
