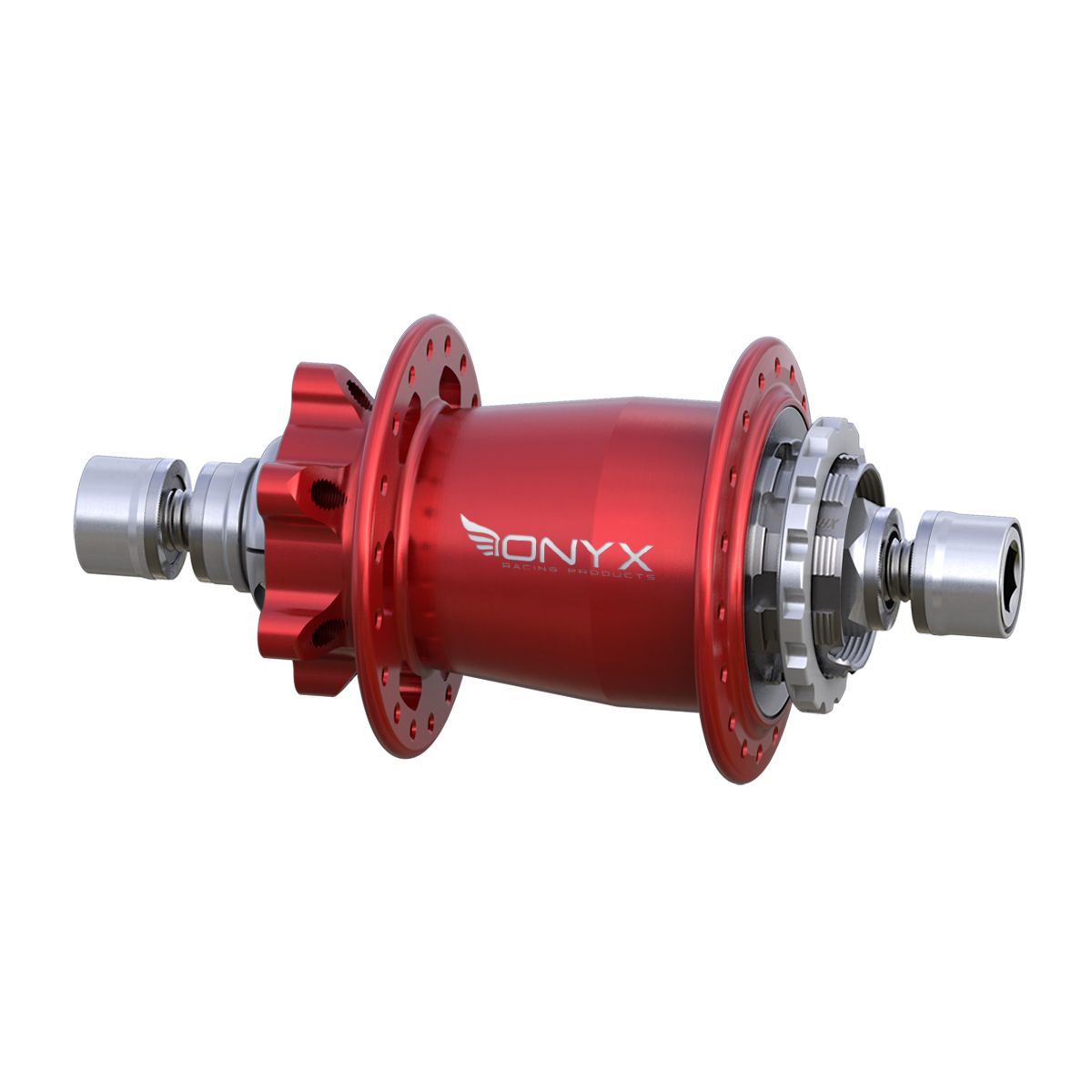

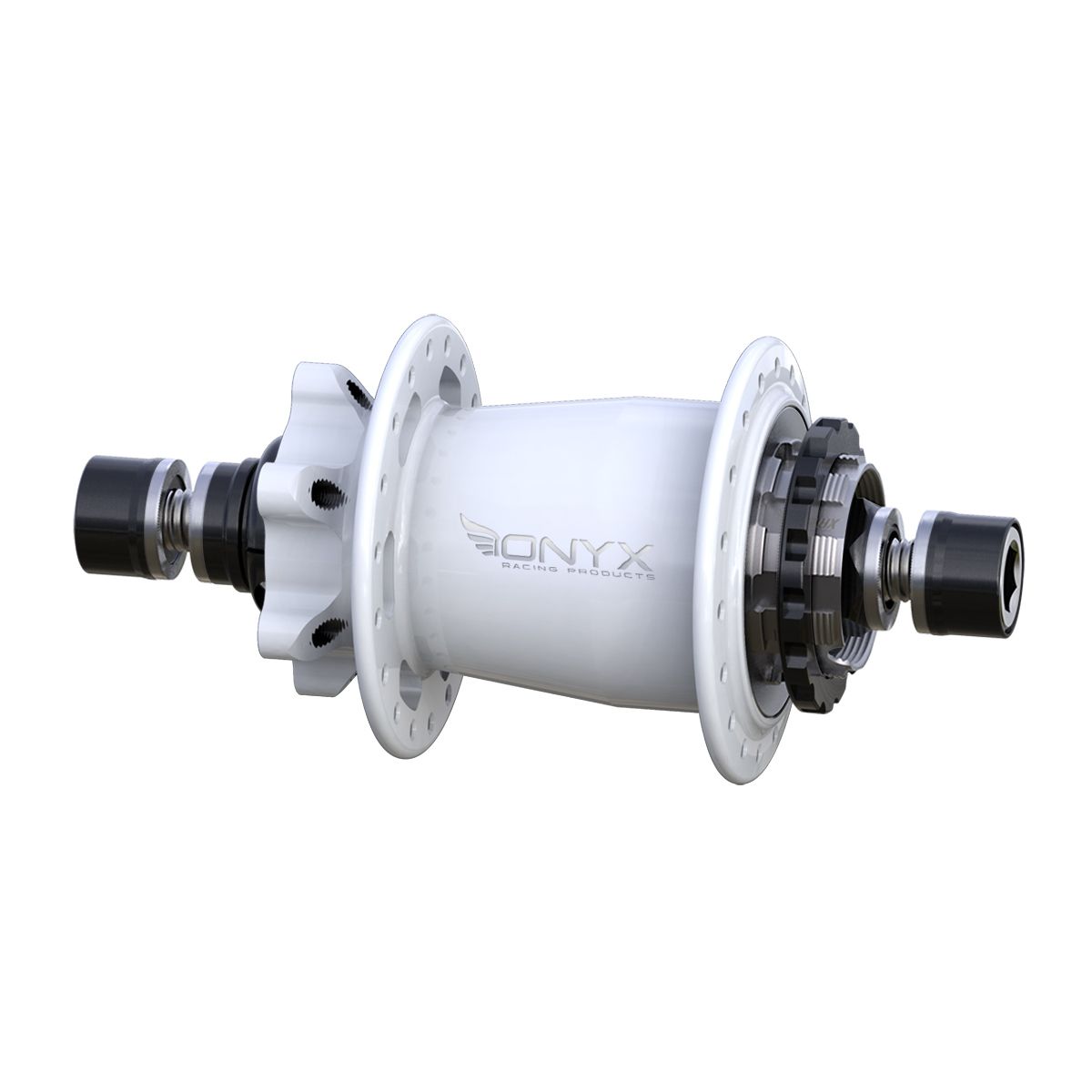

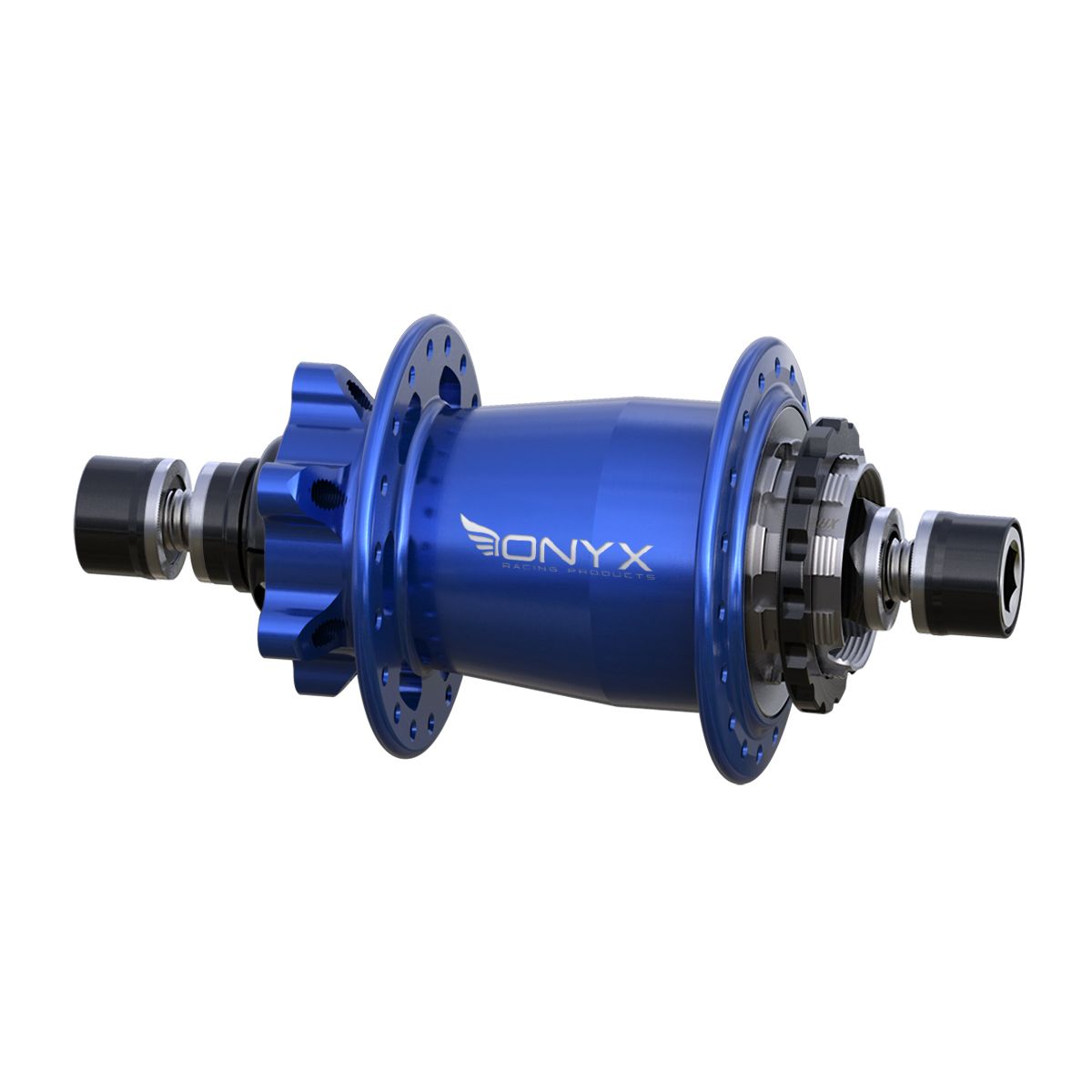

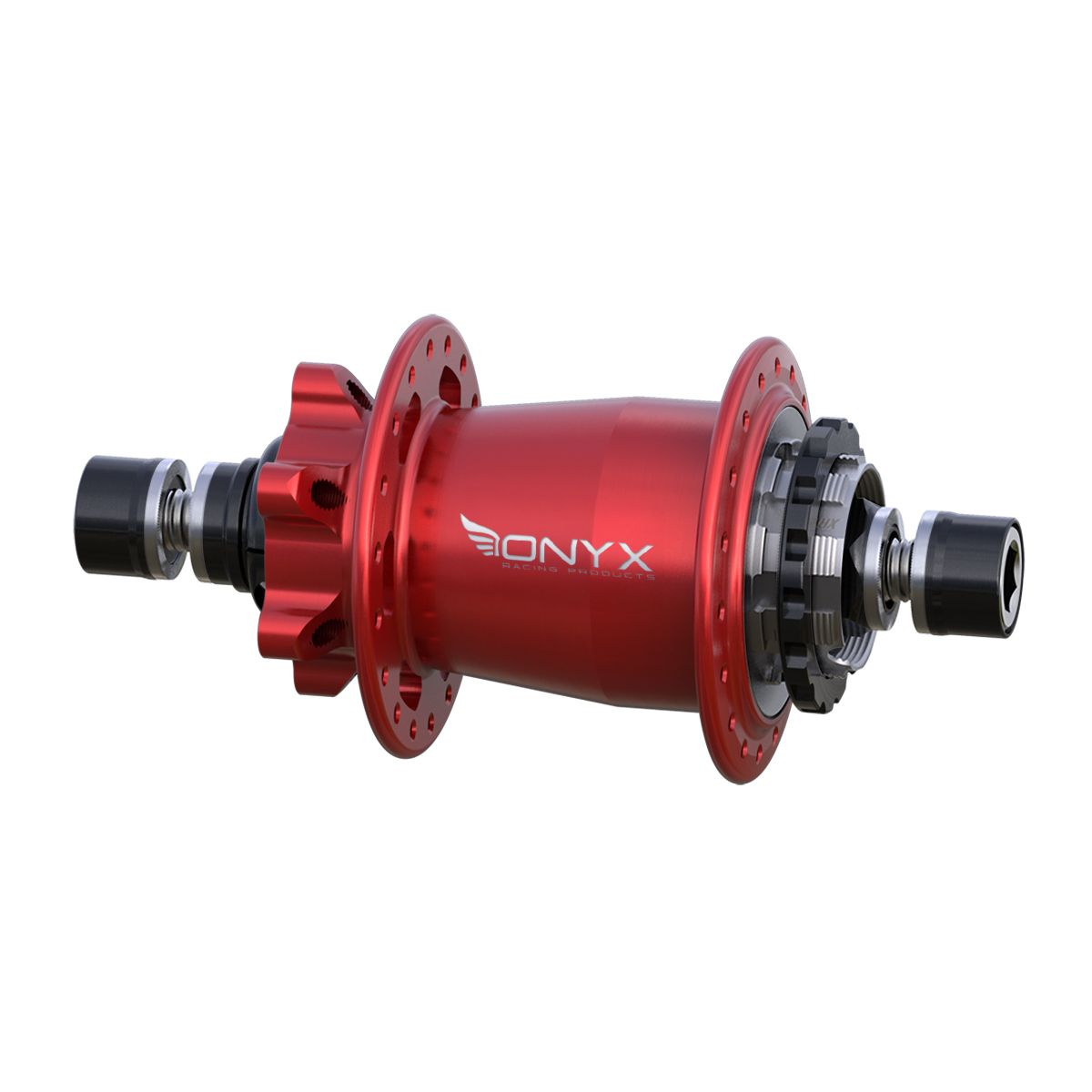

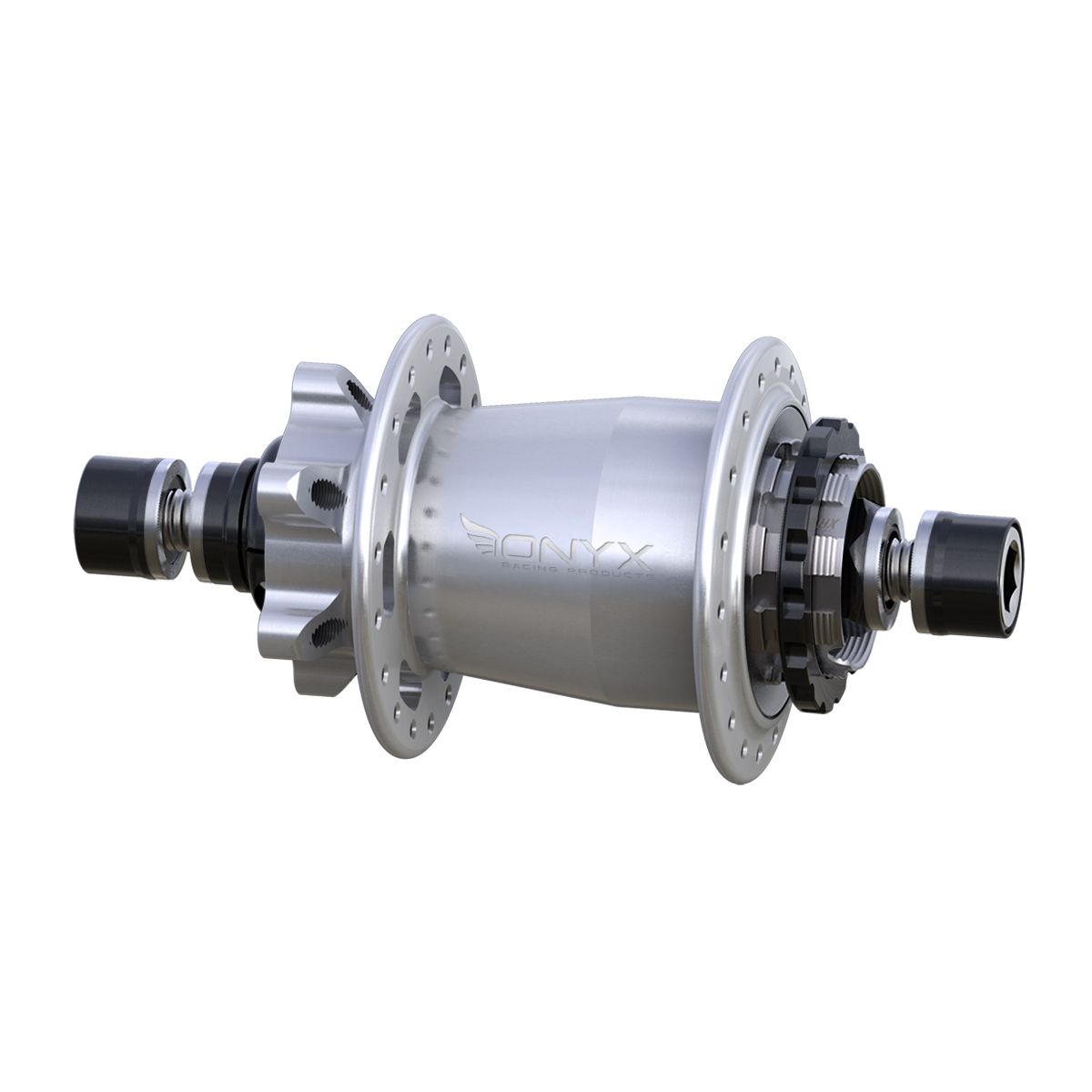

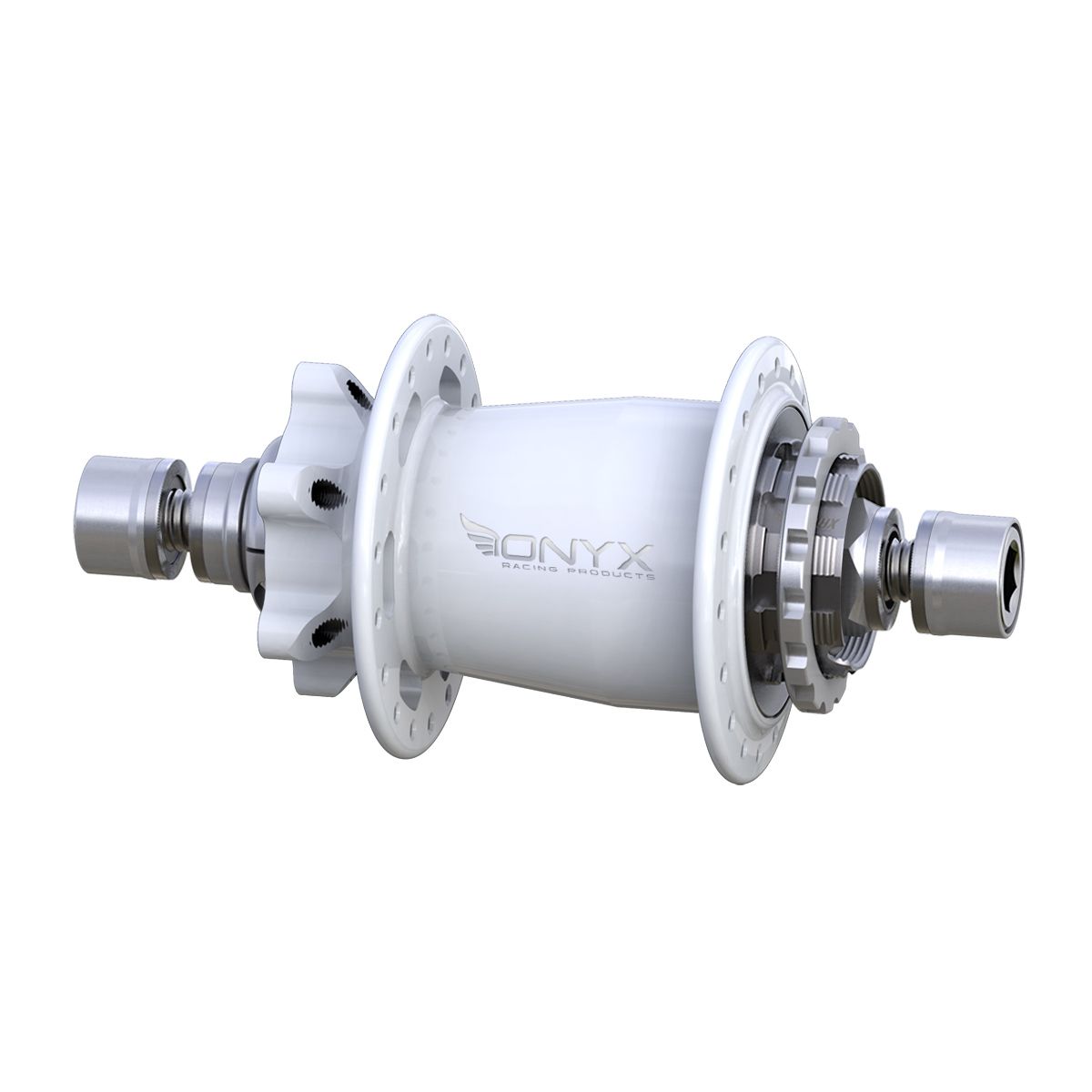

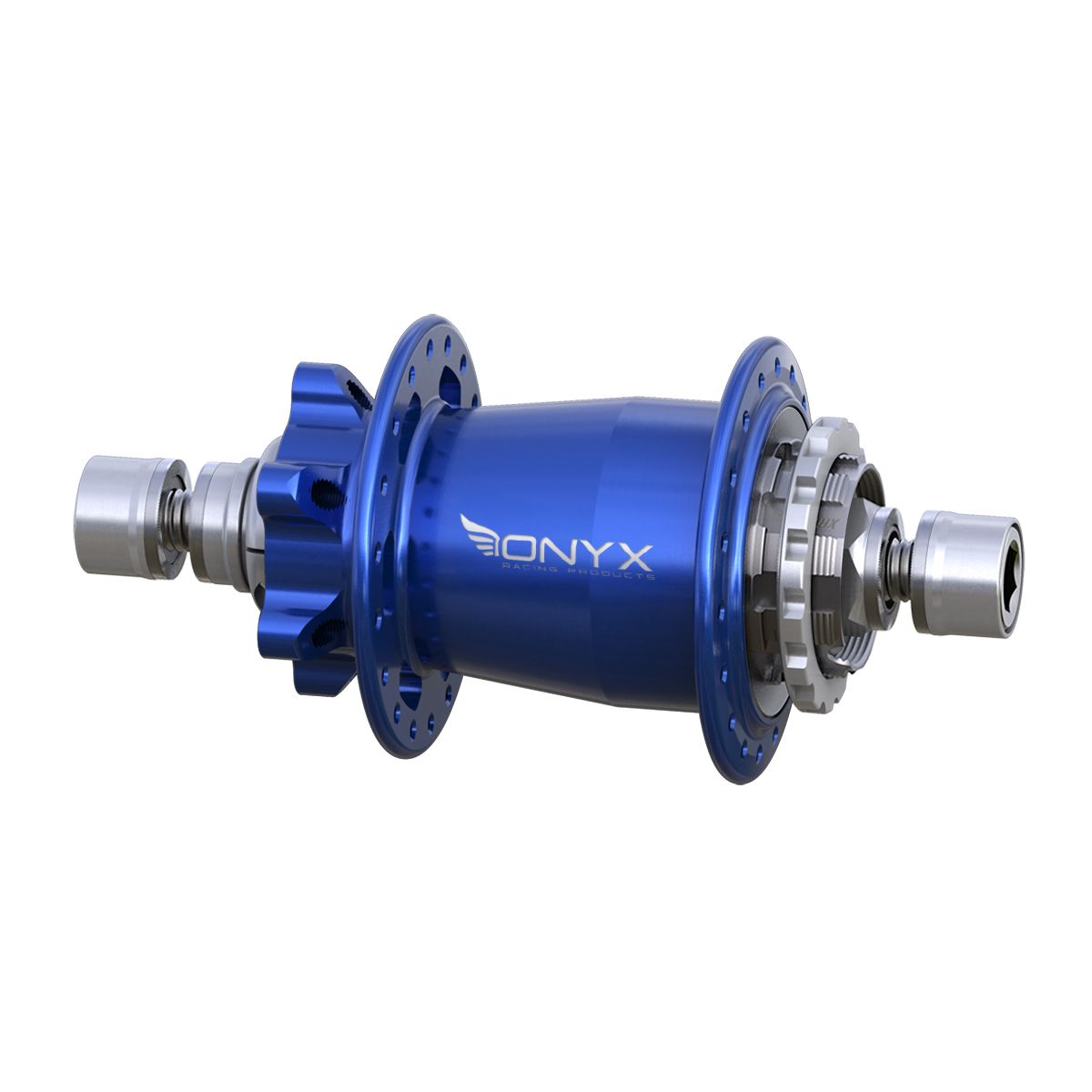

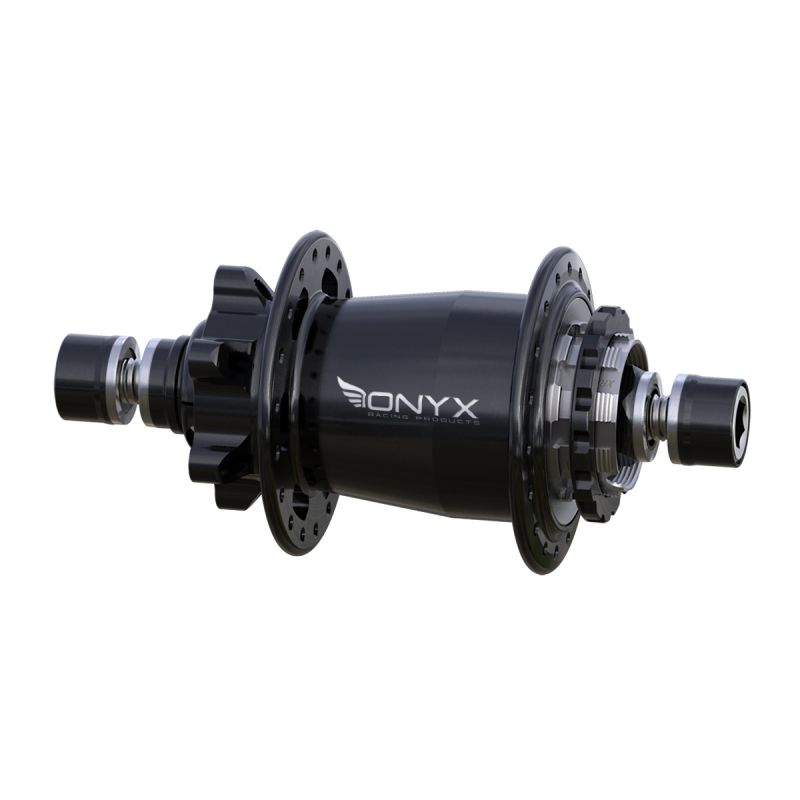

ONYX ultra ISO 10mm Rear hub 36H

Machined from high-end aluminum, the ONYX Ultra rear hub offers BMX riders the famous quality of ONYX products made in the USA. It is equipped with the ONYX instant engagement system offering you direct engagement without any friction when pedaling. It is mounted on hybrid-ceramic bearings which have a very low coefficient of friction and excellent power transfer. It is also equipped with a 6 screw ISO type disc holder for pilots who wish to switch to disc braking.

• CNC machined 7075-T6 aluminum body
• Sealed hybrid-ceramic bearings
• ISO disc rotor bracket
• Aluminum freehub body - Shimano standard
• ONYX Instant engagement
• Aluminum axle body
• BTR screw tightening
• Axle diameter: 10mm
• Width: 110mm
• Drilling: 36 holes
• Weight: 464g

Cog sold separately

NOTE: color shade may vary slightly depending on production run

ONYX hubs require regular maintenance to maintain full operation
ONYX Maintenance Videos


More details

640,00 € Tax incl.

Recommended retail price : 640,00 € TTC

Availability :

Reference Bar Code Colors Unit price Avail. Quantity
ONYHUBS071 151424420711 Black
640,00 €
ONYHUBS072 151424420728 Polished
640,00 €
ONYHUBS074 151424420742 Blue
640,00 €
ONYHUBS073 151424420735 Red
640,00 €
ONYHUBS077 151424420773 Neon orange
629,00 €


A - Hub Center To Flange Center, Non-Drive Side 20.14mm
B - Hub Center To Flange Center, Drive Side 33.23mm
C - Axle Width 110mm
Spoke Hole Circle Diameter, Drive Side 60mm
Spoke Hole Circle Diameter, Non-Drive Side 60mm
Spoke Hole Counts 36
Spoke Tension 120kgf Max



Wheel types Rear
Hub types Direct Engagement
Axle Diameters 10mm
Spokes 36
Braking types Disc
