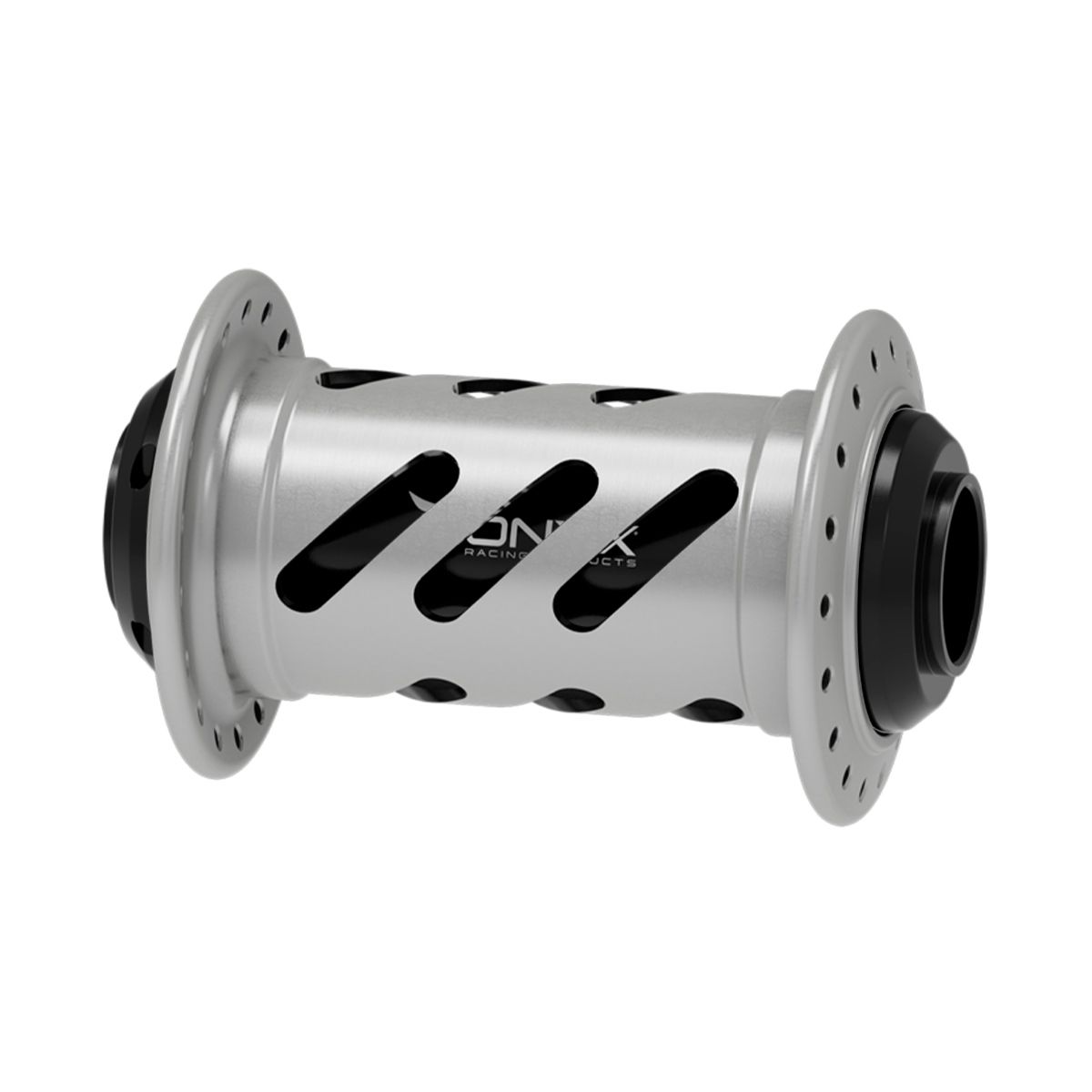

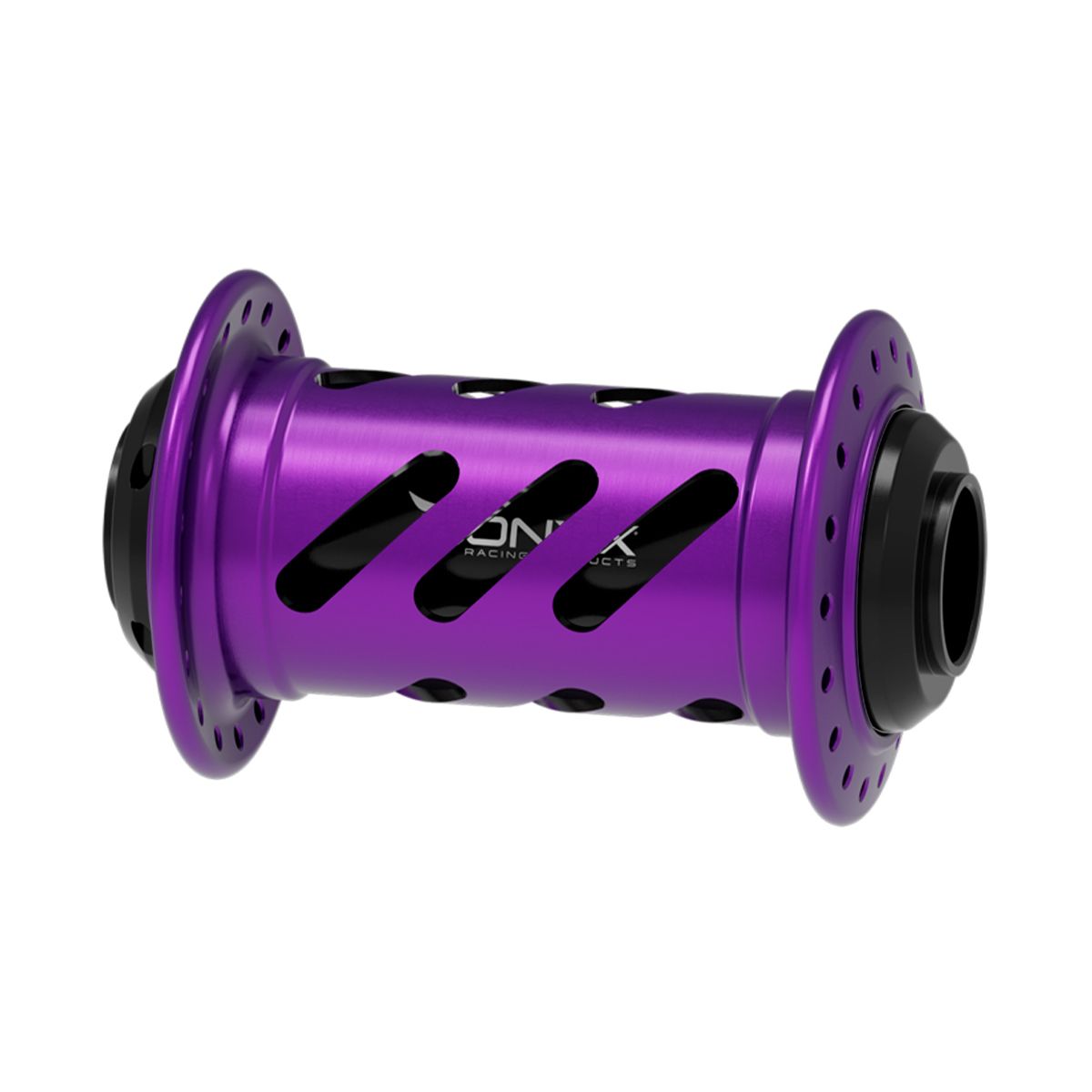

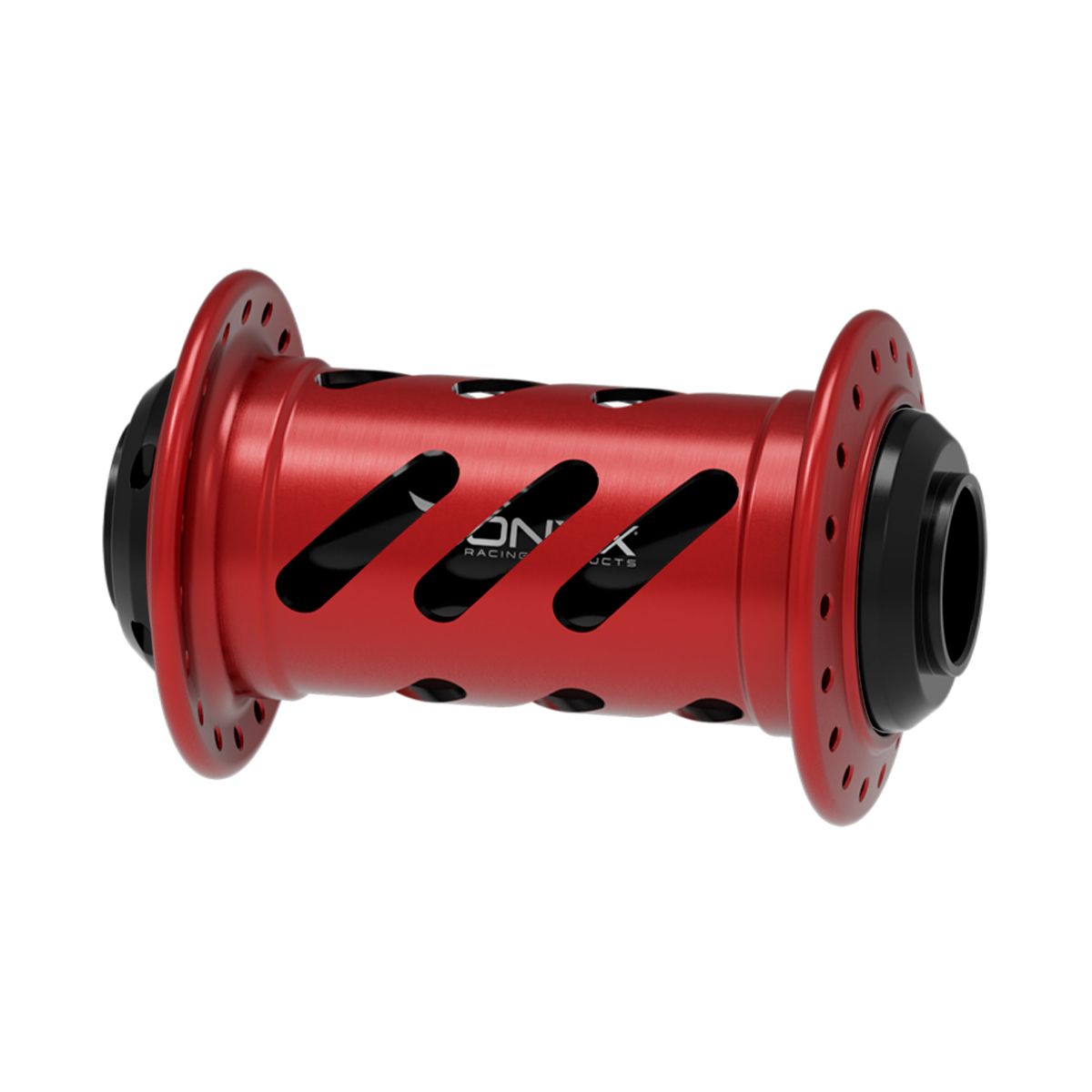

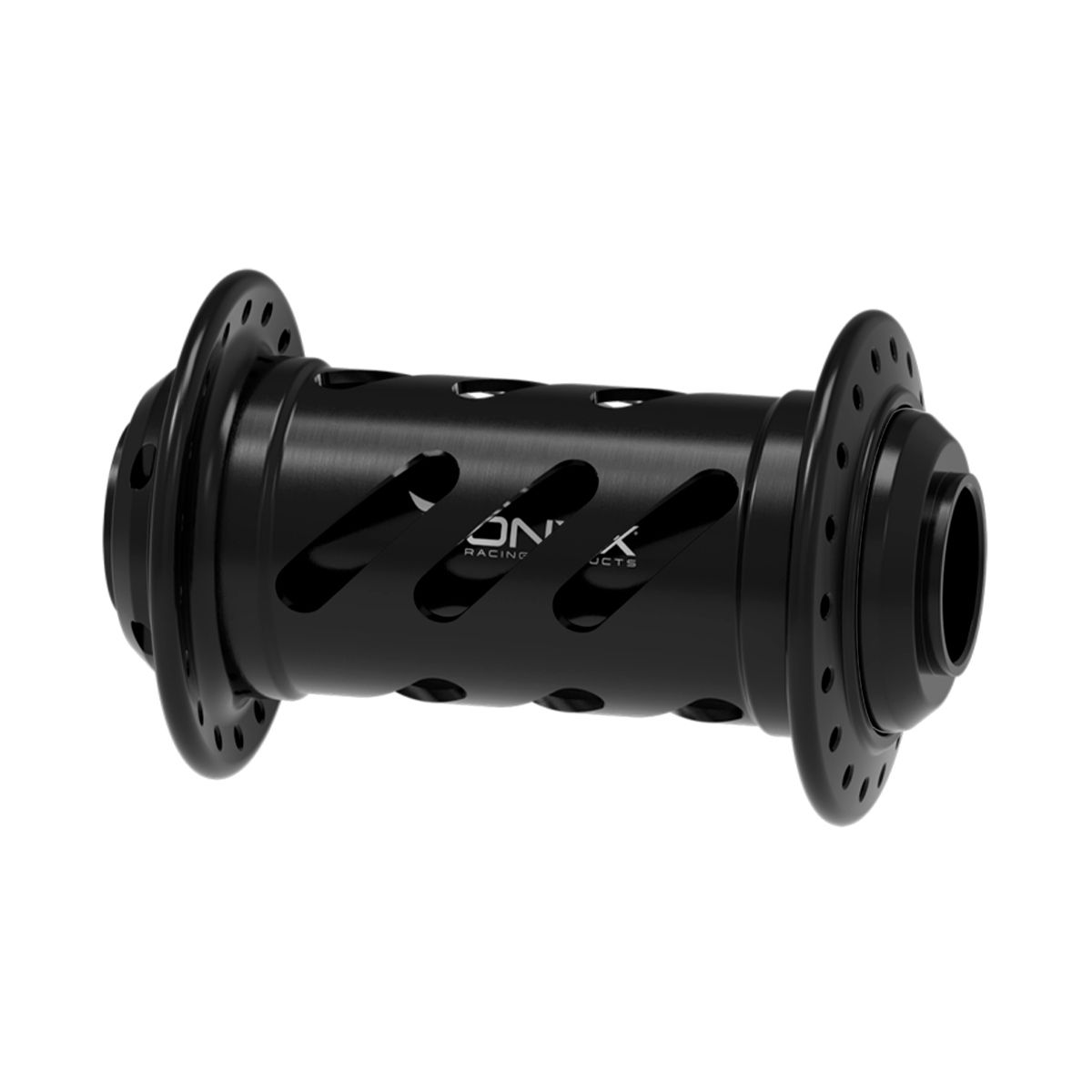

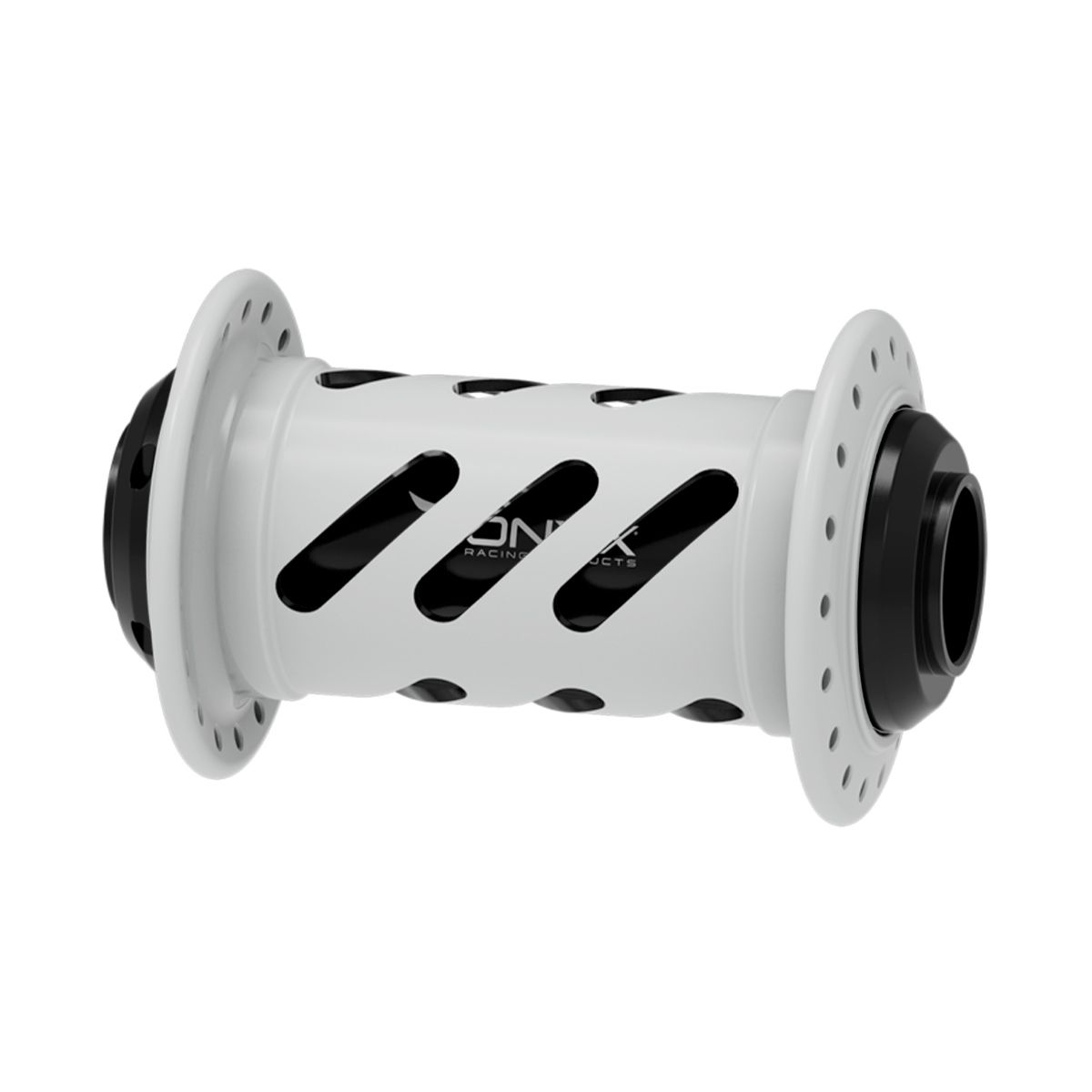

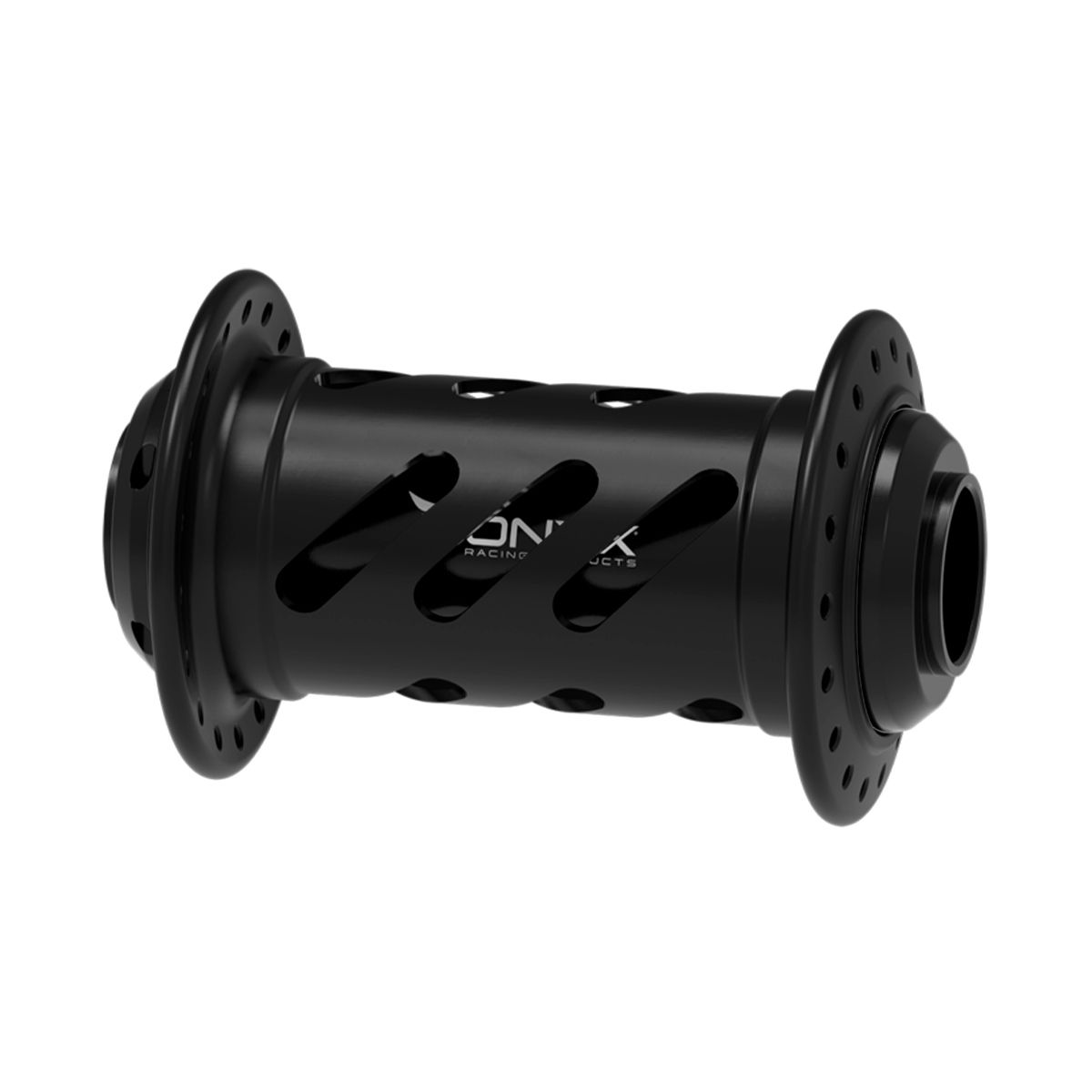

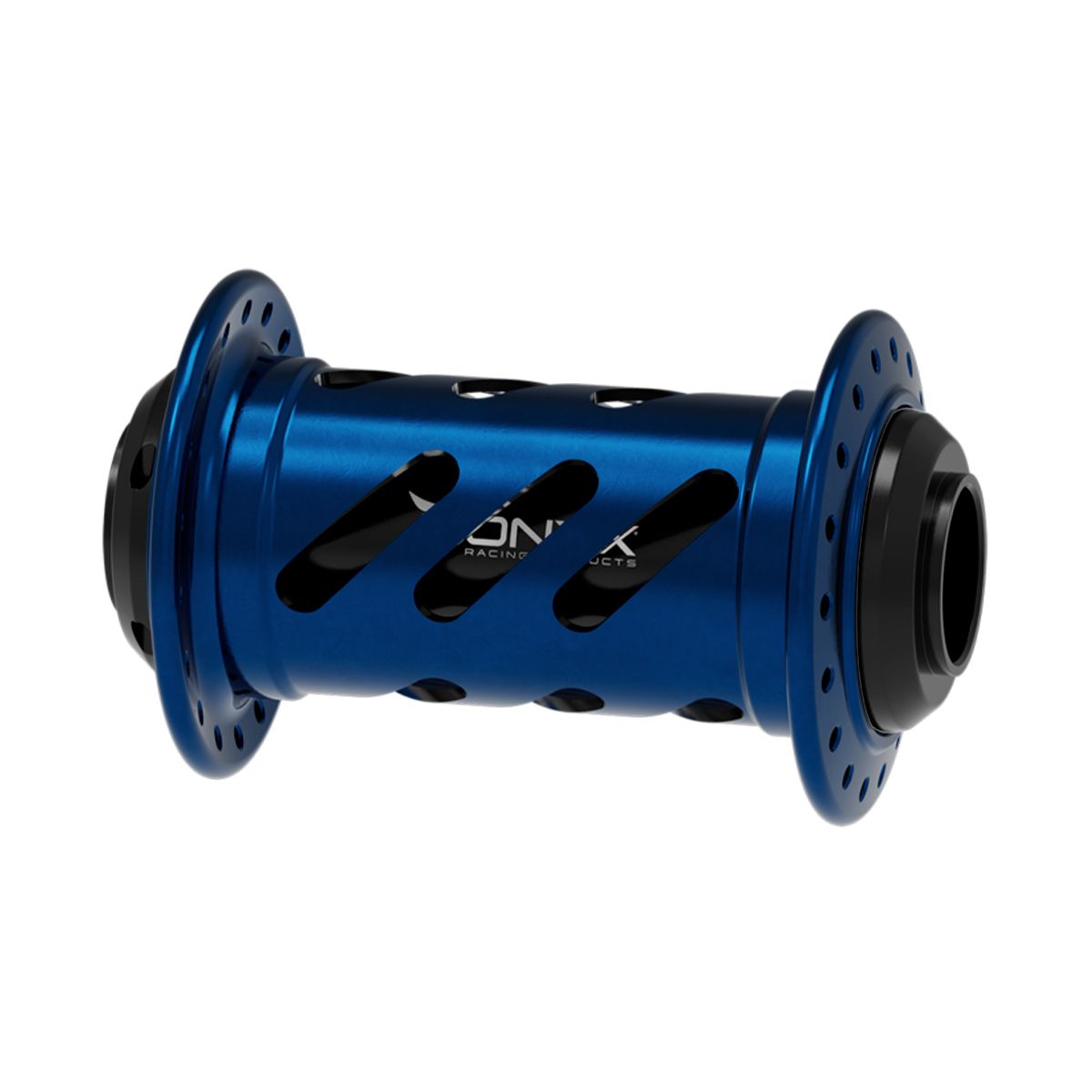

ONYX XL HELIX 20mm FRONT HUB 36H

259,99 € Tax incl.

Recommended retail price : 259,99 € TTC

Colors

Reference:

Availability:

Notify me when available

View Combination List

Buy in local shop

DESCRIPTION

Designed for riders using a fork with a 20mm axle, the new ONYX XL HELIX front hub offers BMX riders the renowned quality of US-made ONYX products: premium CNC-machined aluminum and hybrid-ceramic bearings that deliver a very low coefficient of friction and excellent power transfer.

SPECIFICATIONS:

CNC-machined and relieved 7075-T6 aluminum body
Sealed hybrid-ceramic bearings
Aluminum axle sleeve
Axle diameter: 20mm thru-axle
Width: 100mm
Spoke count: 36 holes
Weight: 238g

Axle sold separately

NOTE: color shade may vary slightly depending on production run

ONYX hubs require regular maintenance to maintain full operation
ONYX Maintenance Videos

ONYX WARRANTY

A - Hub Center To Flange Center, Non-Drive Side	38.13mm
B - Hub Center To Flange Center, Drive Side	38.13mm
C - Axle Width	100mm
Spoke Hole Circle Diameter, Drive Side	50.51mm
Spoke Hole Circle Diameter, Non-Drive Side	50.51mm
Spoke Hole Counts	36
Spoke Tension	120kgf Max

FEATURES

Wheel types	Front
Axle Diameters	20mm
Spokes	36

Reference	Bar Code	Unit price
ONYHUBS372	151424423859	259,99 €
ONYHUBS374	151424423873	259,99 €
ONYHUBS373	151424423866	259,99 €
ONYHUBS375	151424423880	259,99 €
ONYHUBS376	151424423897	259,99 €
ONYHUBS377	151424423903	259,99 €
ONYHUBS378	151424423910	259,99 €
