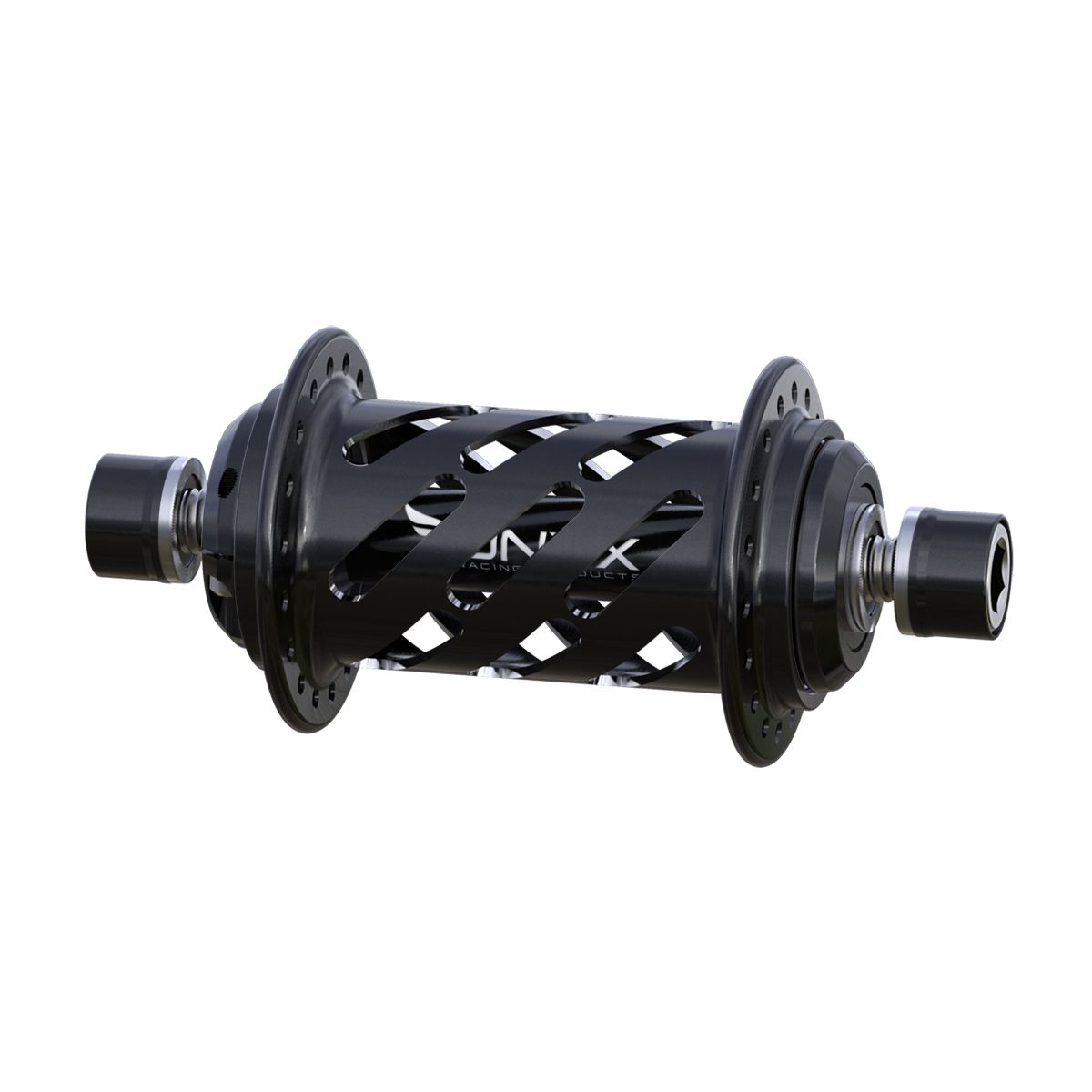

ONYX helix 10mm Front hub 28H

ONYX helix 10mm Front hub 36H

The ONYX Helix front hub offers BMX riders the famous quality of ONYX products made in the USA: high-end machined aluminum and hybrid-ceramic bearings that feature a very low coefficient of friction and excellent power transfer.

FEATURES :
• CNC machined and perforated 7075-T6 aluminum body
• Sealed hybrid-ceramic bearings
• Aluminum axle body
• BTR screw tightening
• Axle diameter: 10mm
• Width: 100mm
• Drilling: 28 holes
• Weight: 222g

NOTE: color shade may vary slightly depending on production run

ONYX hubs require regular maintenance to maintain full operation
ONYX Maintenance Videos

ONYX WARRANTY

More details



289,99 € Tax incl.

Recommended retail price : 289,99 € TTC

Availability :

Buy in local shop

Reference Bar Code Colors Unit price Avail. Quantity
ONYHUBS221 151424422210 Black
289,99 €



A - Hub Center To Flange Center, Non-Drive Side 34.8mm
B - Hub Center To Flange Center, Drive Side 34.8mm
C - Axle Width 100mm
Spoke Hole Circle Diameter, Drive Side 50mm
Spoke Hole Circle Diameter, Non-Drive Side 50mm
Spoke Hole Counts 28
Spoke Tension 120kgf Max

YOU MIGHT ALSO LIKE

FEATURES

Wheel types Front
Axle Diameters 10mm
Spokes 28
