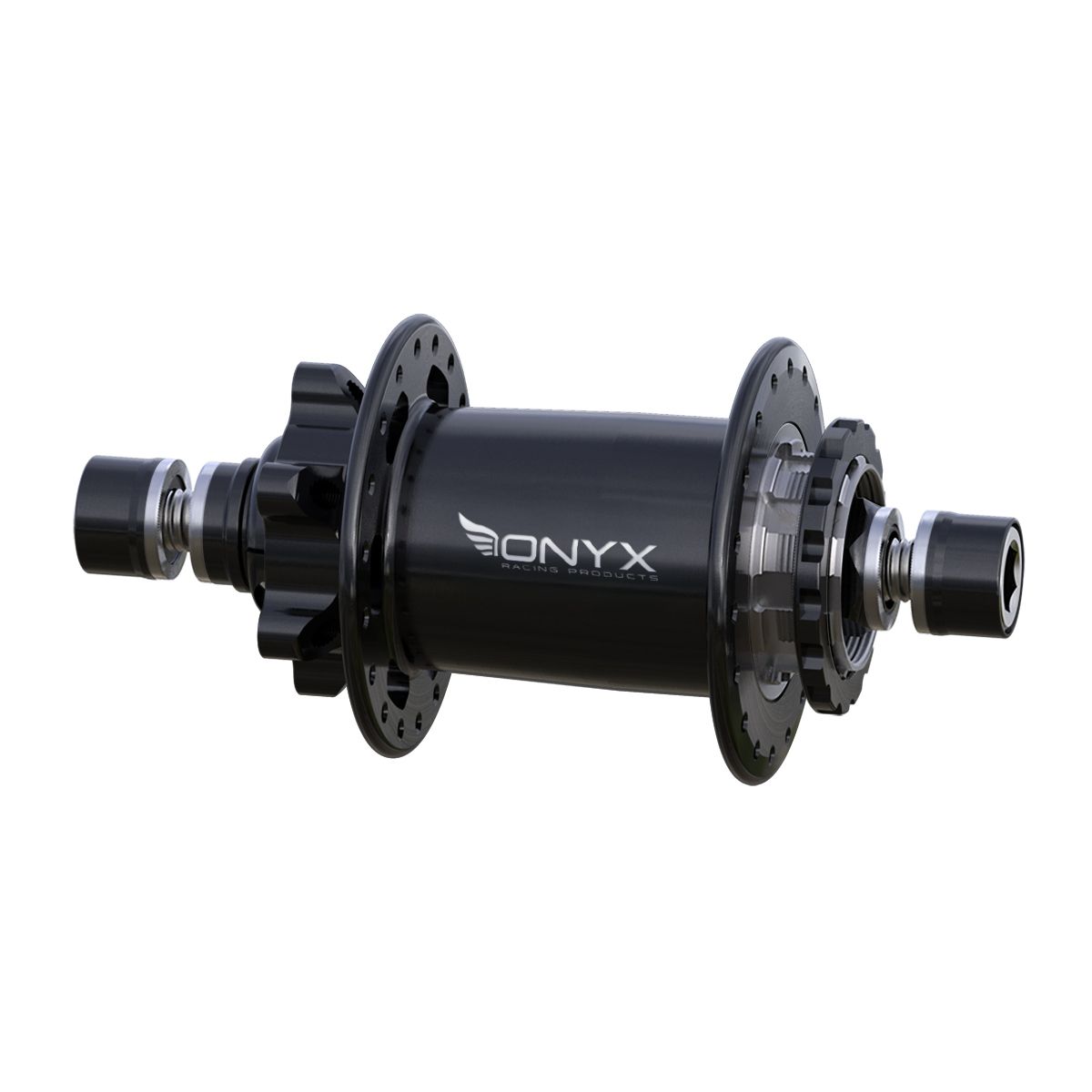

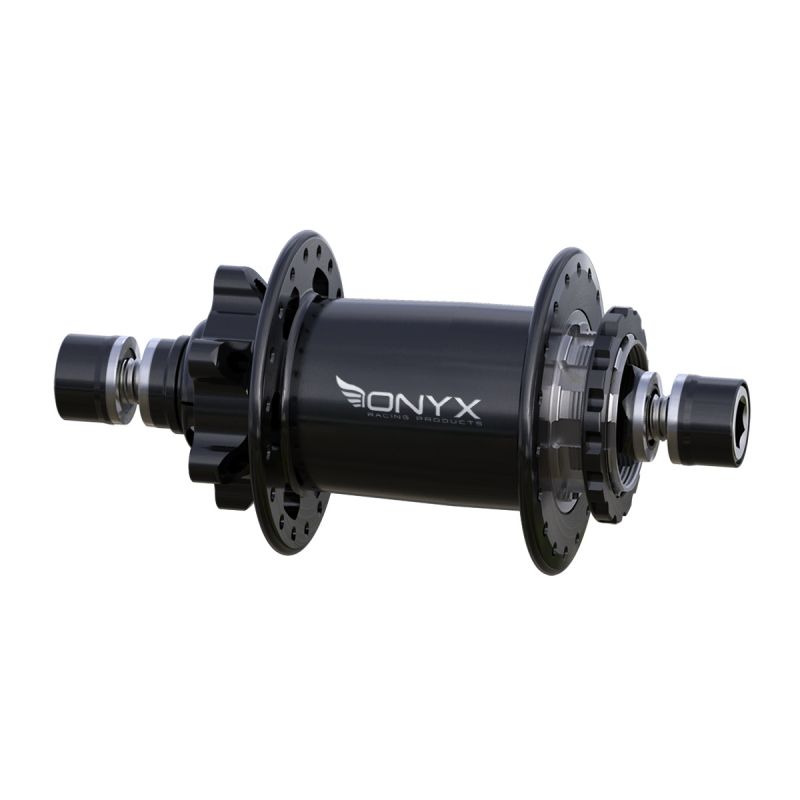

ONYX Pro ISO 10mm Rear hub 28H
ONYX Pro ISO 10mm Rear hub 28H

ONYX Pro ISO 10mm Rear hub 28H

Machined from high-end aluminum, the ONYX Pro rear hub offers BMX riders the famous quality of ONYX products made in the USA. It is equipped with the ONYX instant engagement system offering you direct engagement without any friction when pedaling. It is mounted on hybrid-ceramic bearings which have a very low coefficient of friction and excellent power transfer. It is also equipped with a 6 screw ISO type disc holder for pilots who wish to switch to disc braking.

FEATURES :
• CNC machined 7075-T6 aluminum body
• Sealed hybrid-ceramic bearings
• ISO disc rotor bracket
• Aluminum freehub body - Shimano standard
• ONYX Instant engagement
• Aluminum axle body
• BTR screw tightening
• Axle diameter: 10mm
• Width: 110mm
• Drilling: 28 holes
• Weight: 419g

Cog sold separately

NOTE: color shade may vary slightly depending on production run

ONYX hubs require regular maintenance to maintain full operation
ONYX Maintenance Videos

ONYX WARRANTY

More details



Availability :

569,00 € Tax incl.

Recommended retail price : 569,00 € TTC

Reference Bar Code Colors Unit price Availability Quantity Buy
ONYHUBS241 151424422418 Black
569,00 €



A - Hub Center To Flange Center, Non-Drive Side 22.15mm
B - Hub Center To Flange Center, Drive Side 35.22mm
C - Axle Width 110mm
Spoke Hole Circle Diameter, Drive Side 60mm
Spoke Hole Circle Diameter, Non-Drive Side 60mm
Spoke Hole Counts 28
Spoke Tension 120kgf Max

Compatible with
