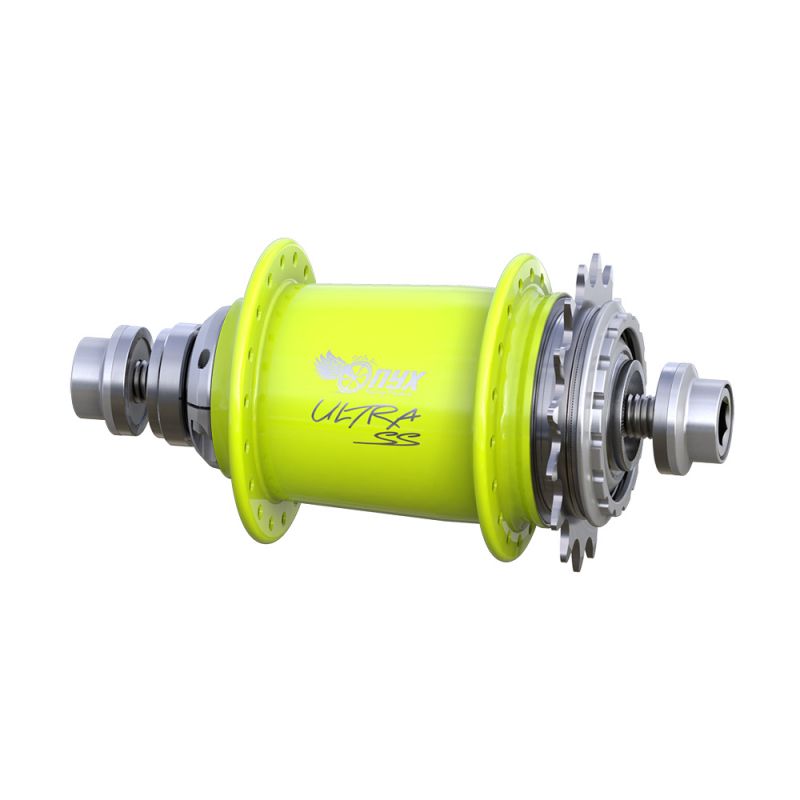

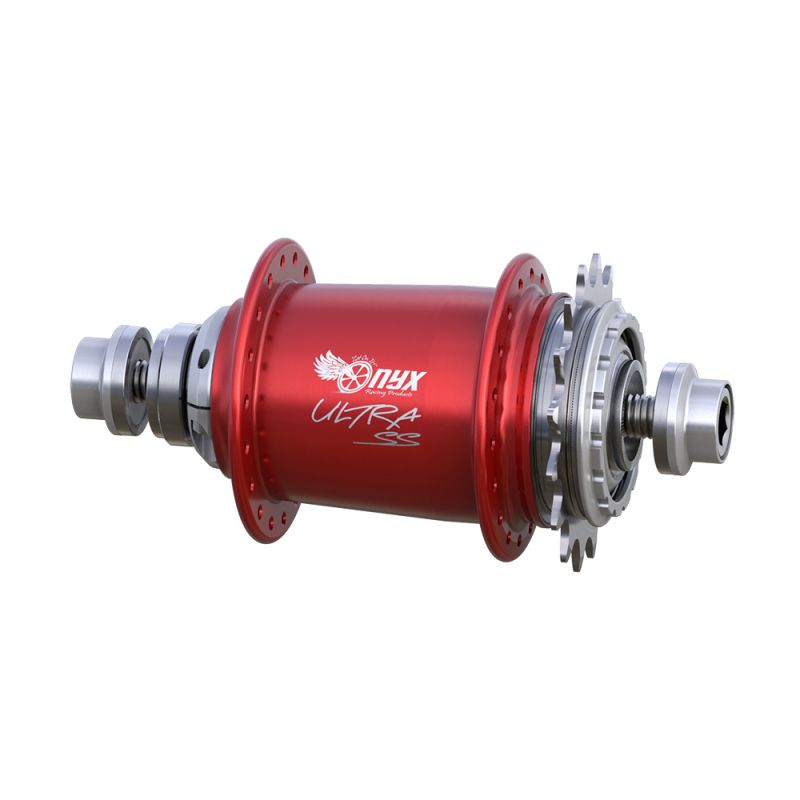

ONYX ultra SS 10mm Rear hub 36H

Machined from high-end aluminum, the ONYX Ultra SS rear hub offers BMX riders the famous quality of ONYX products made in the USA. It is equipped with the ONYX instant engagement system offering you direct engagement without any friction when pedaling. It is mounted on hybrid-ceramic bearings which have a very low coefficient of friction and excellent power transfer.

• CNC machined 7075-T6 aluminum body
• Sealed hybrid-ceramic bearings
• Aluminum freehub body - ONYX SS standard
• ONYX Instant engagement
• Aluminum axle body
• BTR screw tightening
• Axle diameter: 10mm
• Width: 110mm
• Drilling: 36 holes
• Weight: 564g

Cog sold separately

NOTE: color shade may vary slightly depending on production run

ONYX hubs require regular maintenance to maintain full operation
ONYX Maintenance Videos


More details

679,99 € Tax incl.

Recommended retail price : 679,99 € TTC

Availability :

Reference Bar Code Colors Unit price Avail. Quantity
ONYHUBS112 151424421121 Black
679,99 €
ONYHUBS113 151424421138 mat black
679,99 €
ONYHUBS114 151424421145 Polished
679,99 €
ONYHUBS115 151424421152 Red
679,99 €
ONYHUBS116 151424421169 Blue
679,99 €
ONYHUBS117 151424421176 neon yellow
669,00 €


A - Hub Center To Flange Center, Non-Drive Side 28mm
B - Hub Center To Flange Center, Drive Side 28mm
C - Axle Width 110mm
Spoke Hole Circle Diameter, Drive Side 60mm
Spoke Hole Circle Diameter, Non-Drive Side 60mm
Spoke Hole Counts 36
Spoke Tension 120kgf Max



Wheel types Rear
Hub types Direct Engagement
Axle Diameters 10mm
Spokes 36
