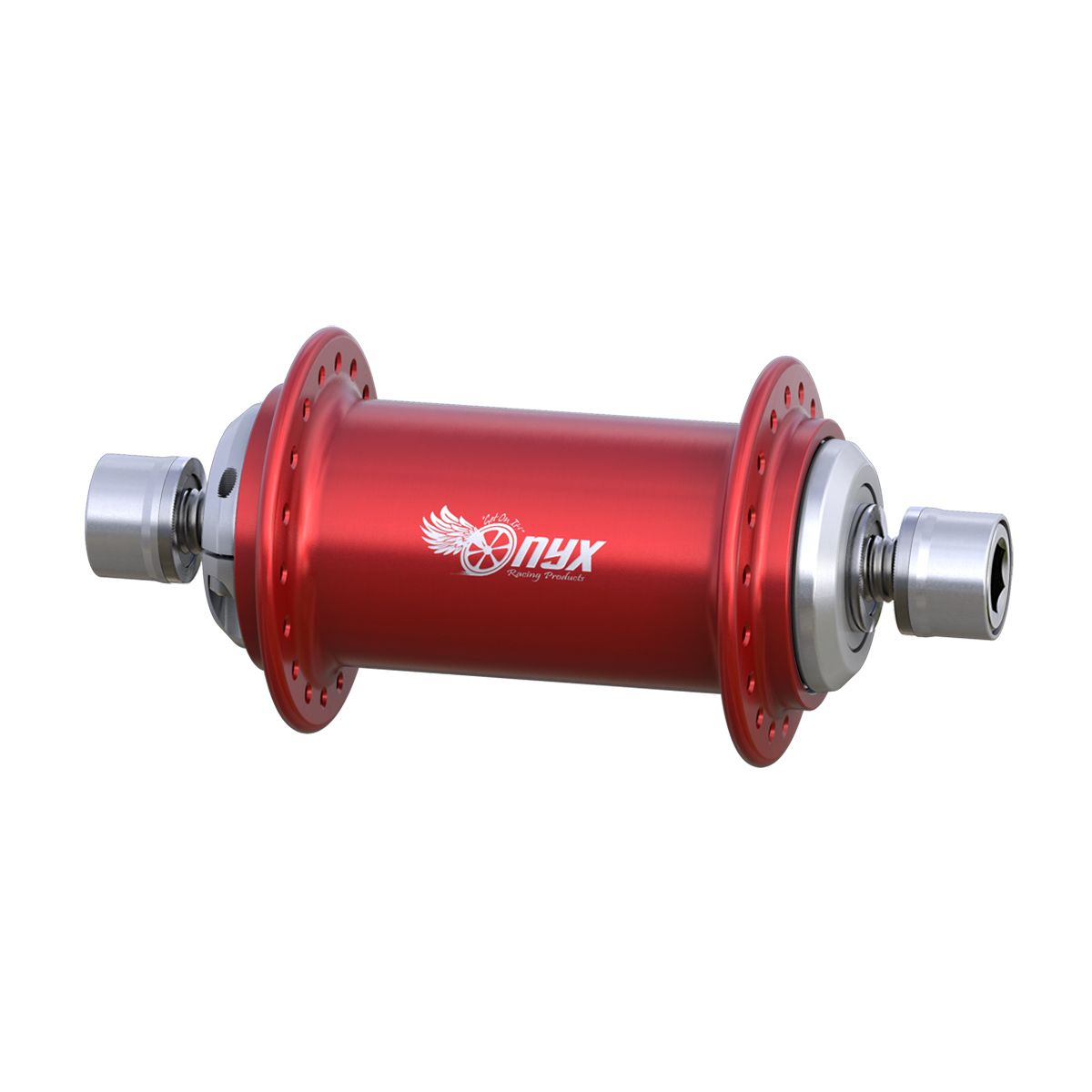

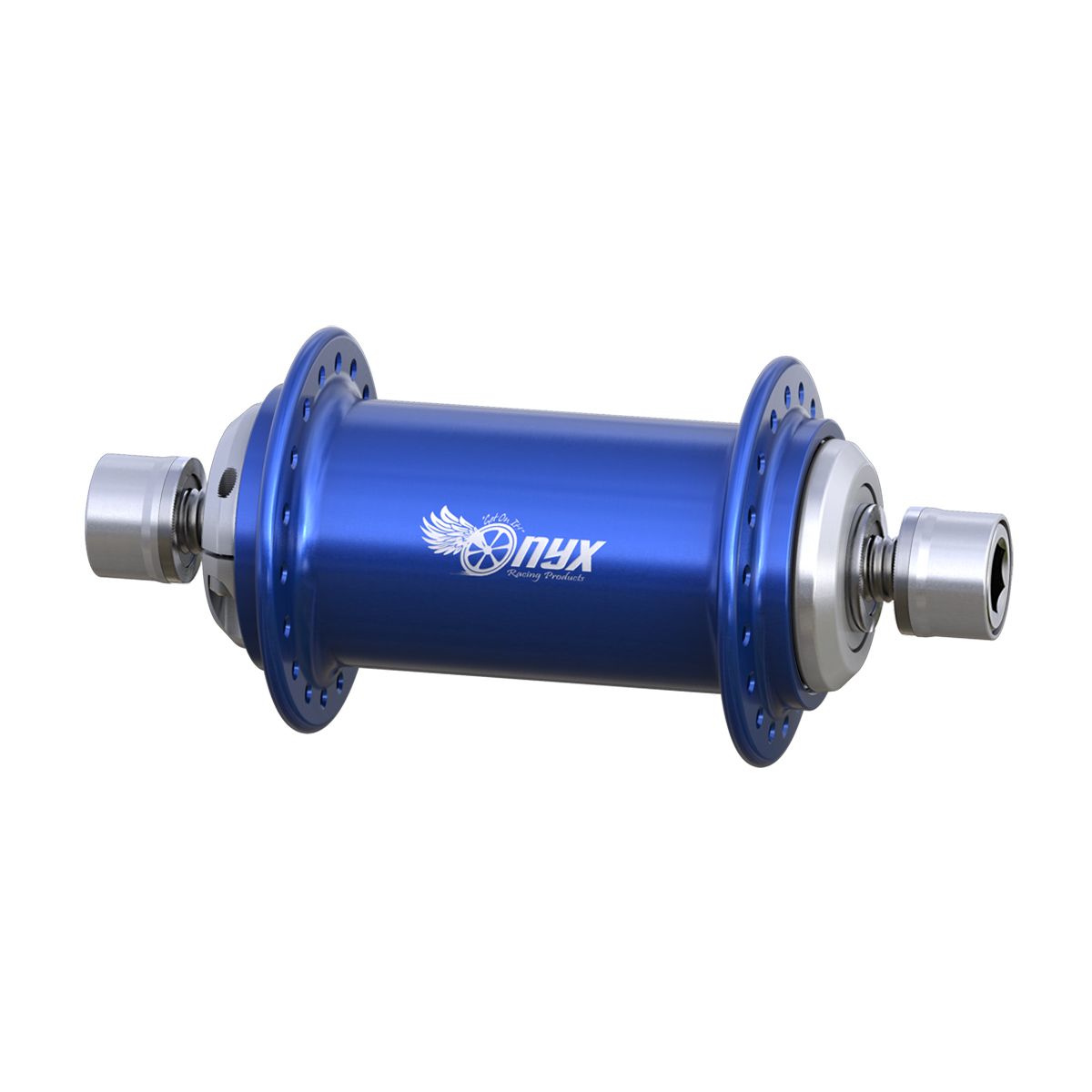

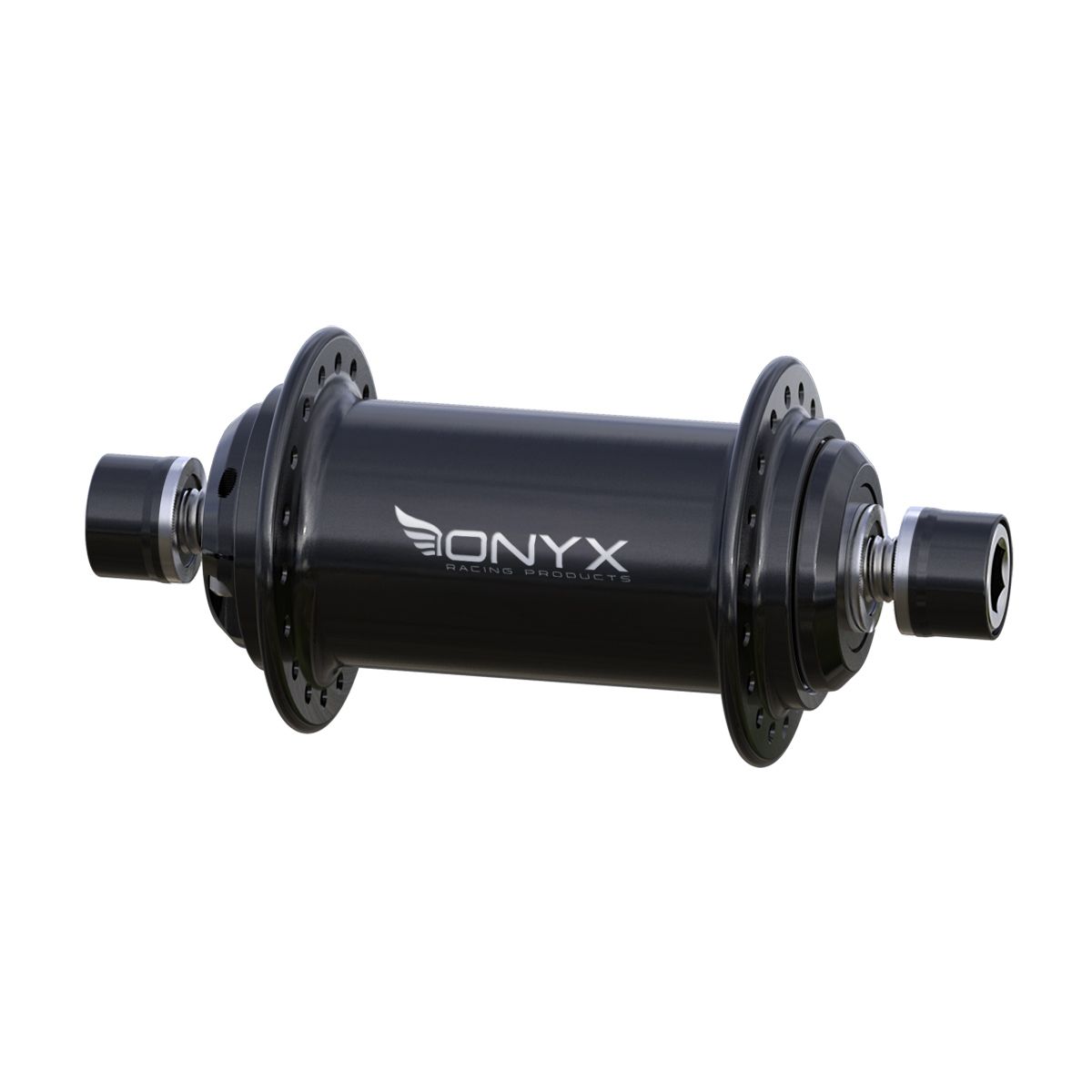

ONYX solid 10mm Front Hub 28H

The ONYX Solid front hub offers BMX riders the famous quality of ONYX products made in the USA: high-end machined aluminum and hybrid-ceramic bearings that feature a very low coefficient of friction and excellent power transfer.

• CNC machined 7075-T6 aluminum body
• Sealed hybrid-ceramic bearings
• Aluminum axle body
• BTR screw tightening
• Axle diameter: 10mm
• Width: 100mm
• Drilling: 28 holes
• Weight: 232g

NOTE: color shade may vary slightly depending on production run

ONYX hubs require regular maintenance to maintain full operation
ONYX Maintenance Videos


More details

289,99 € Tax incl.

Recommended retail price : 289,99 € TTC

Availability :

Reference Bar Code Colors Unit price Avail. Quantity
ONYHUBS231 151424422319 Black
289,99 €
ONYHUBS235 151424422357 Red
289,99 €
ONYHUBS236 151424422364 Blue
289,99 €


A - Hub Center To Flange Center, Non-Drive Side 34.8mm
B - Hub Center To Flange Center, Drive Side 34.8mm
C - Axle Width 100mm
Spoke Hole Circle Diameter, Drive Side 50mm
Spoke Hole Circle Diameter, Non-Drive Side 50mm
Spoke Hole Counts 28
Spoke Tension 120kgf Max



Wheel types Front
Axle Diameters 10mm
Spokes 28
