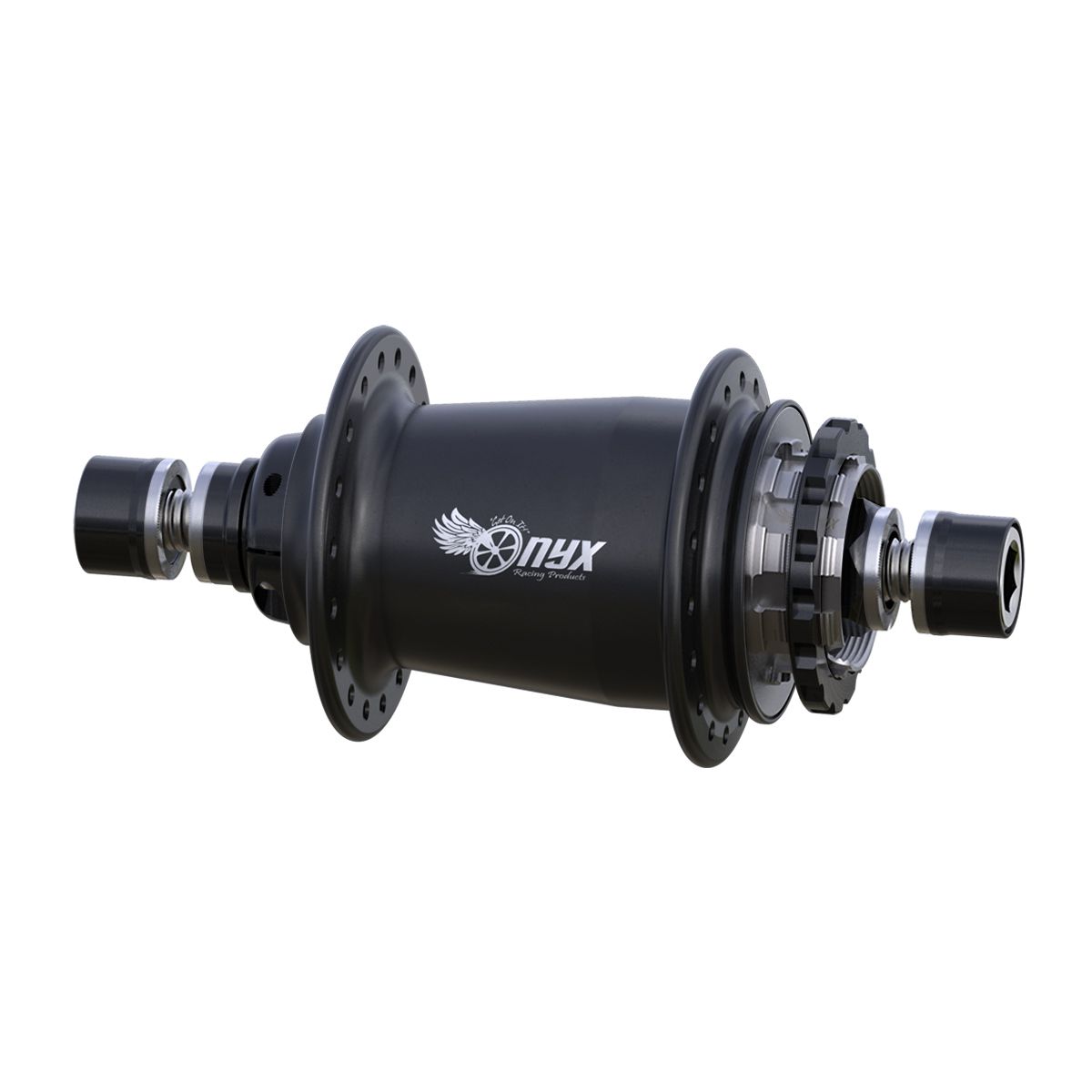

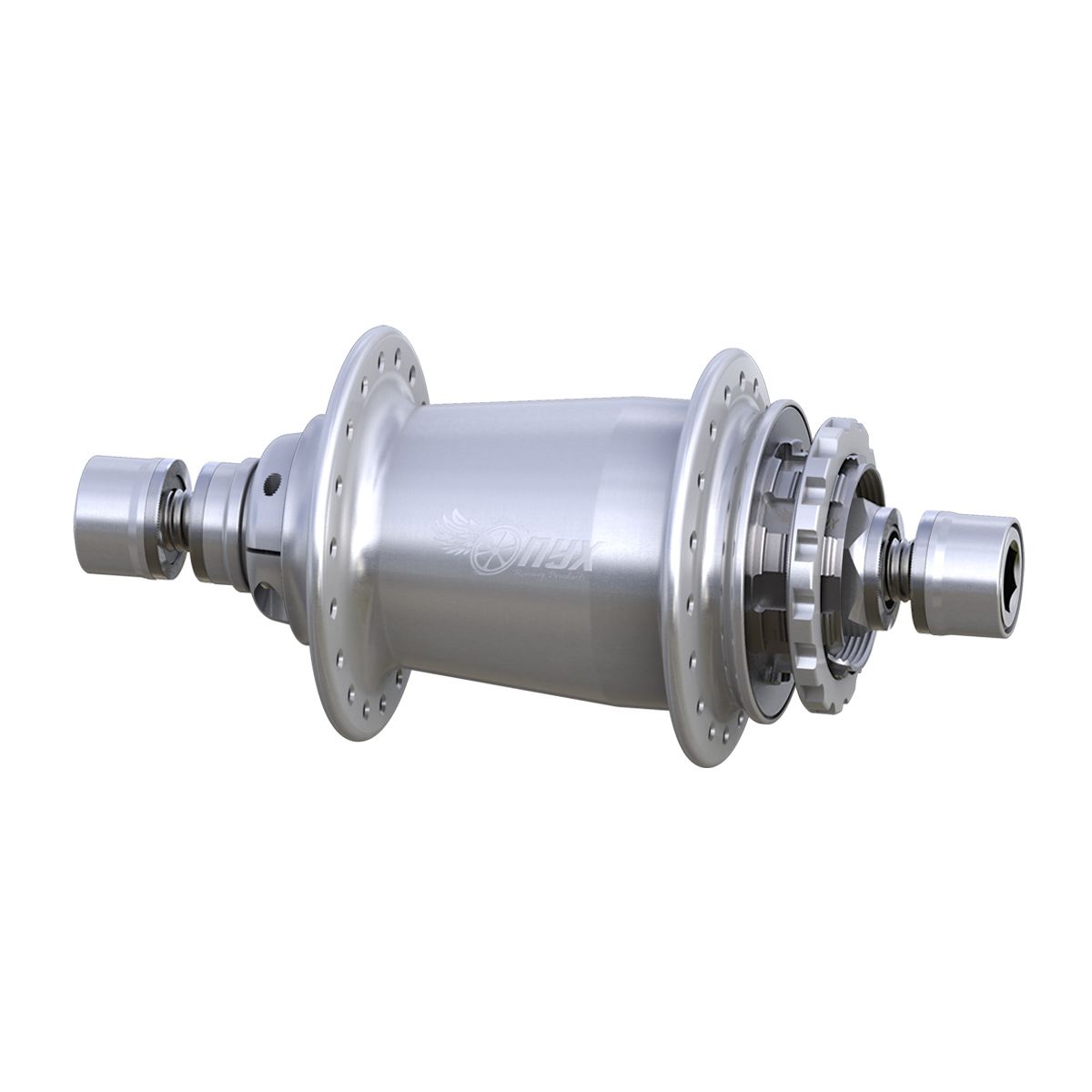

ONYX ultra 10mm Rear hub 36H

Machined from high-end aluminum, the ONYX Ultra rear hub offers BMX riders the famous quality of ONYX products made in the USA. It is equipped with the ONYX instant engagement system offering you direct engagement without any friction when pedaling. It is mounted on hybrid-ceramic bearings which have a very low coefficient of friction and excellent power transfer.

• CNC machined 7075-T6 aluminum body
• Sealed hybrid-ceramic bearings
• Aluminum freehub body - Shimano standard
• ONYX Instant engagement
• Aluminum axle body
• BTR screw tightening
• Axle diameter: 10mm
• Width: 110mm
• Drilling: 36 holes
• Weight: 457g

Cog sold separately

NOTE: color shade may vary slightly depending on production run

ONYX hubs require regular maintenance to maintain full operation
ONYX Maintenance Videos


More details

640,00 € Tax incl.

Recommended retail price : 640,00 € TTC

Availability :

Reference Bar Code Colors Unit price Avail. Quantity
ONYHUBS061 151424420612 Black
640,00 €
ONYHUBS063 151424420636 White
640,00 €
ONYHUBS062 151424420629 Polished
640,00 €
ONYHUBS065 151424420650 Blue
640,00 €
ONYHUBS064 151424420643 Red
640,00 €
ONYHUBS068 151424420681 mat black
640,00 €


A - Hub center to flange center, non-drive side 28.07mm
B - Hub center to flange center, drive side 27.91mm
C - Axle width 110mm
Spoke hole circle diameter, drive side 55mm
Spoke hole circle diameter, non-drive side 55mm
Spoke hole counts 36
Spoke tension 120kgf Max



Wheel types Rear
Hub types Direct Engagement
Axle Diameters 10mm
Spokes 36
