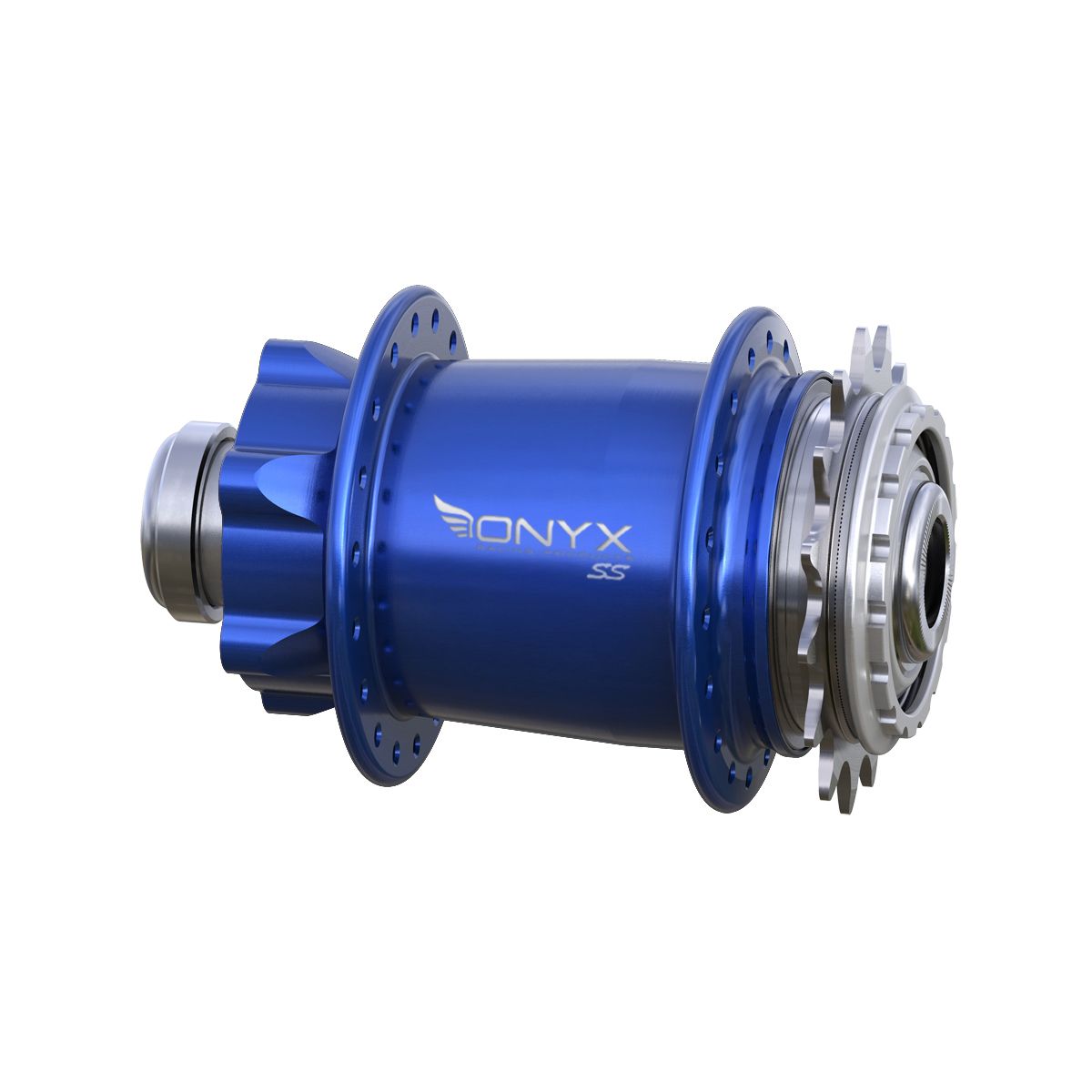

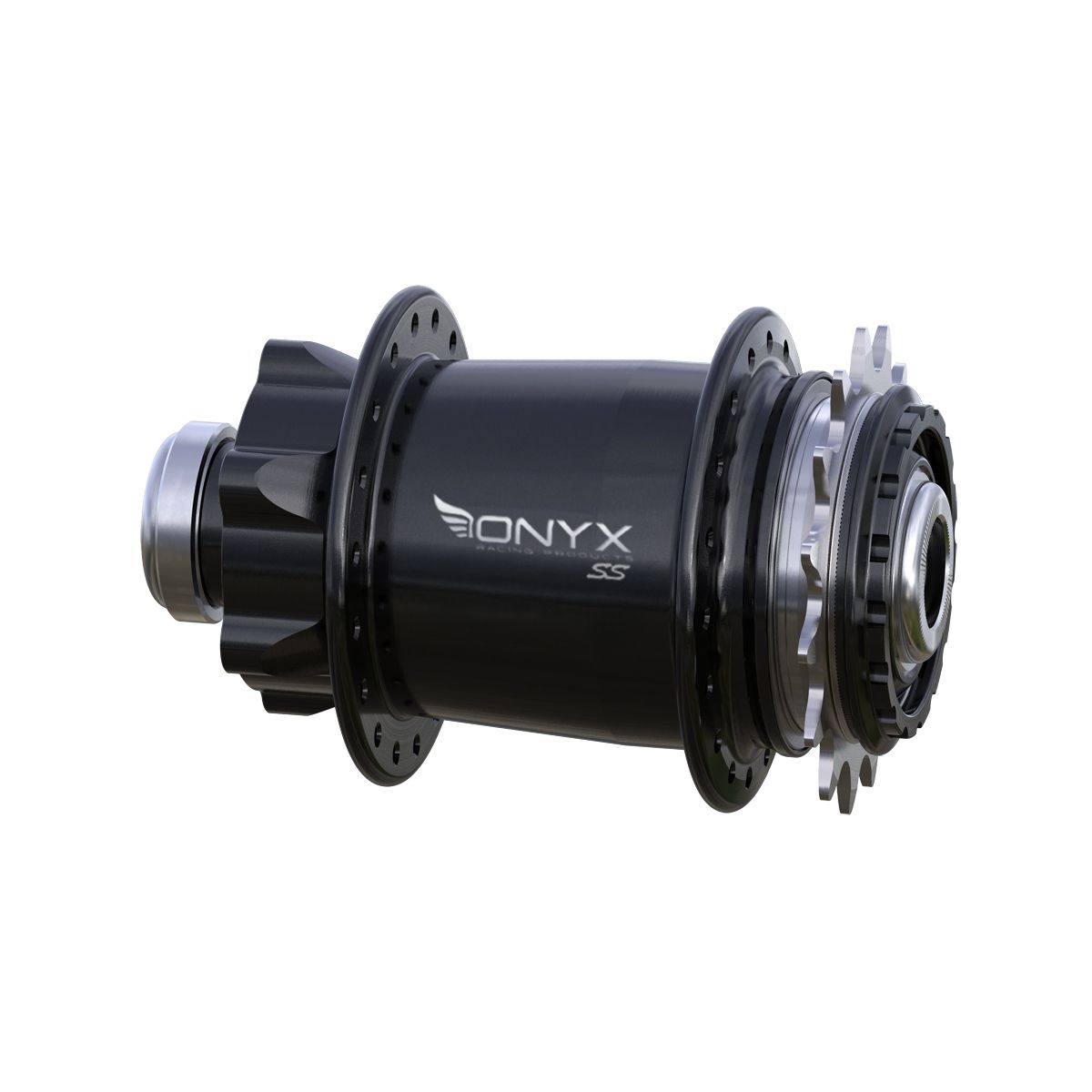

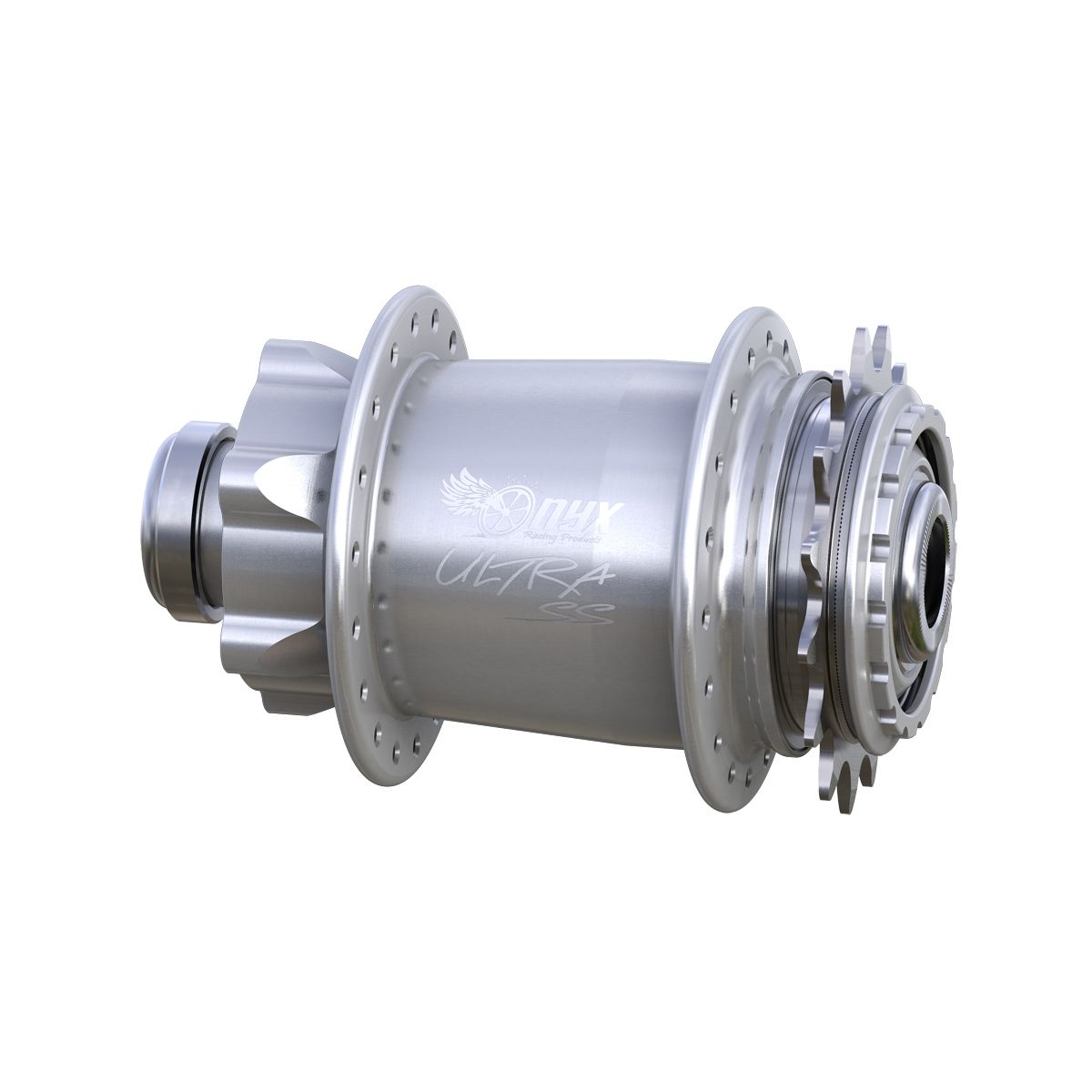

ONYX ultra SS ISO 15mm Rear hub 36H

Machined from high-end aluminum, the ONYX Ultra SS rear hub offers BMX riders the famous quality of ONYX products made in the USA. It is equipped with the ONYX instant engagement system offering you direct engagement without any friction when pedaling. It is mounted on hybrid-ceramic bearings which have a very low coefficient of friction and excellent power transfer. It is intended for riders using a frame that offers the option of mounting a 15mm diameter axle at the rear. It is also equipped with a 6 screw ISO type disc holder for pilots who wish to switch to disc braking.

FEATURES :
• CNC machined 7075-T6 aluminum body
• Sealed hybrid-ceramic bearings
• ISO disc rotor bracket
• Aluminum freehub body - ONYX SS standard
• ONYX Instant engagement
• Aluminum axle body
• Axle diameter: 15mm thru
• Width: 110mm
• Drilling: 36 holes
• Weight: 536g

Axle and cog sold separately

NOTE: color shade may vary slightly depending on production run

ONYX hubs require regular maintenance to maintain full operation
ONYX Maintenance Videos

ONYX WARRANTY

More details



679,99 € Tax incl.

Recommended retail price : 679,99 € TTC

Availability :

Reference Bar Code Colors Unit price Avail. Quantity
ONYHUBS332 151424423323 Black
679,99 €
ONYHUBS333 151424423330 Polished
679,99 €
ONYHUBS334 151424423347 Red
679,99 €
ONYHUBS335 151424423354 Blue
679,99 €



A - Hub Center To Flange Center, Non-Drive Side 20.27mm
B - Hub Center To Flange Center, Drive Side 28mm
C - Axle Width 110mm
Spoke Hole Circle Diameter, Drive Side 60mm
Spoke Hole Circle Diameter, Non-Drive Side 60mm
Spoke Hole Counts 36
Spoke Tension 120kgf Max

YOU MIGHT ALSO LIKE

FEATURES

Wheel types Rear
Hub types Direct Engagement
Axle Diameters 15mm
Spokes 36
Braking types Disc
