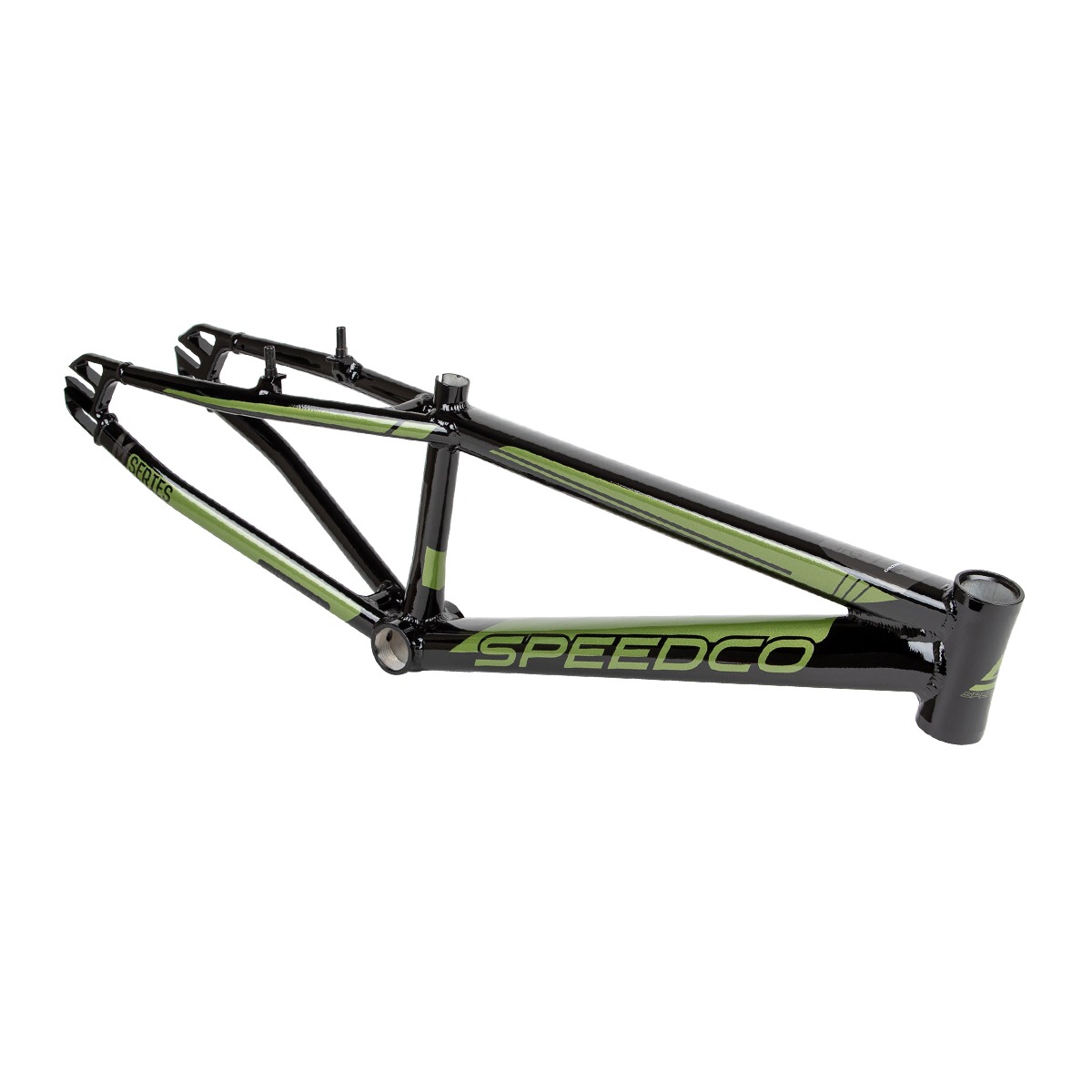

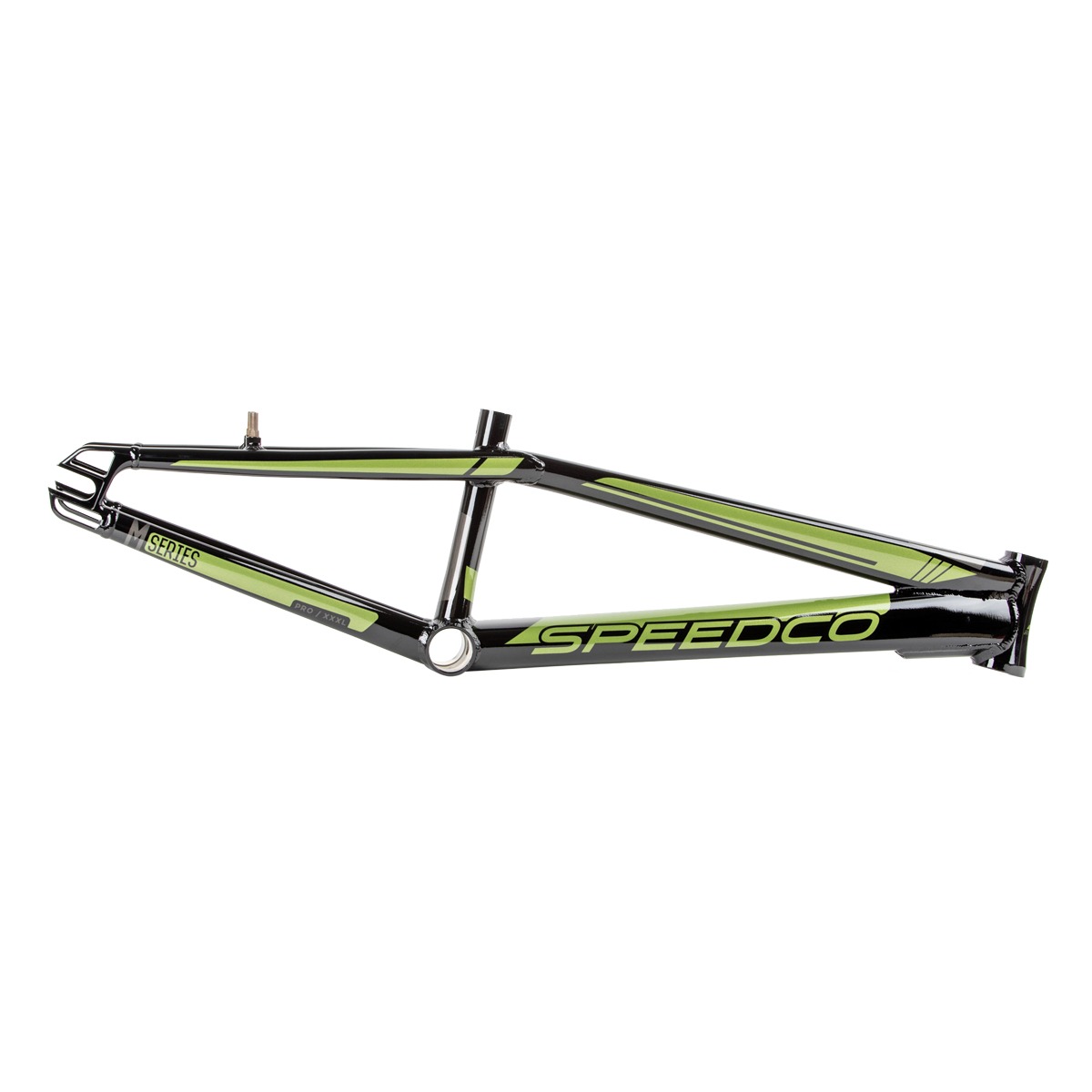

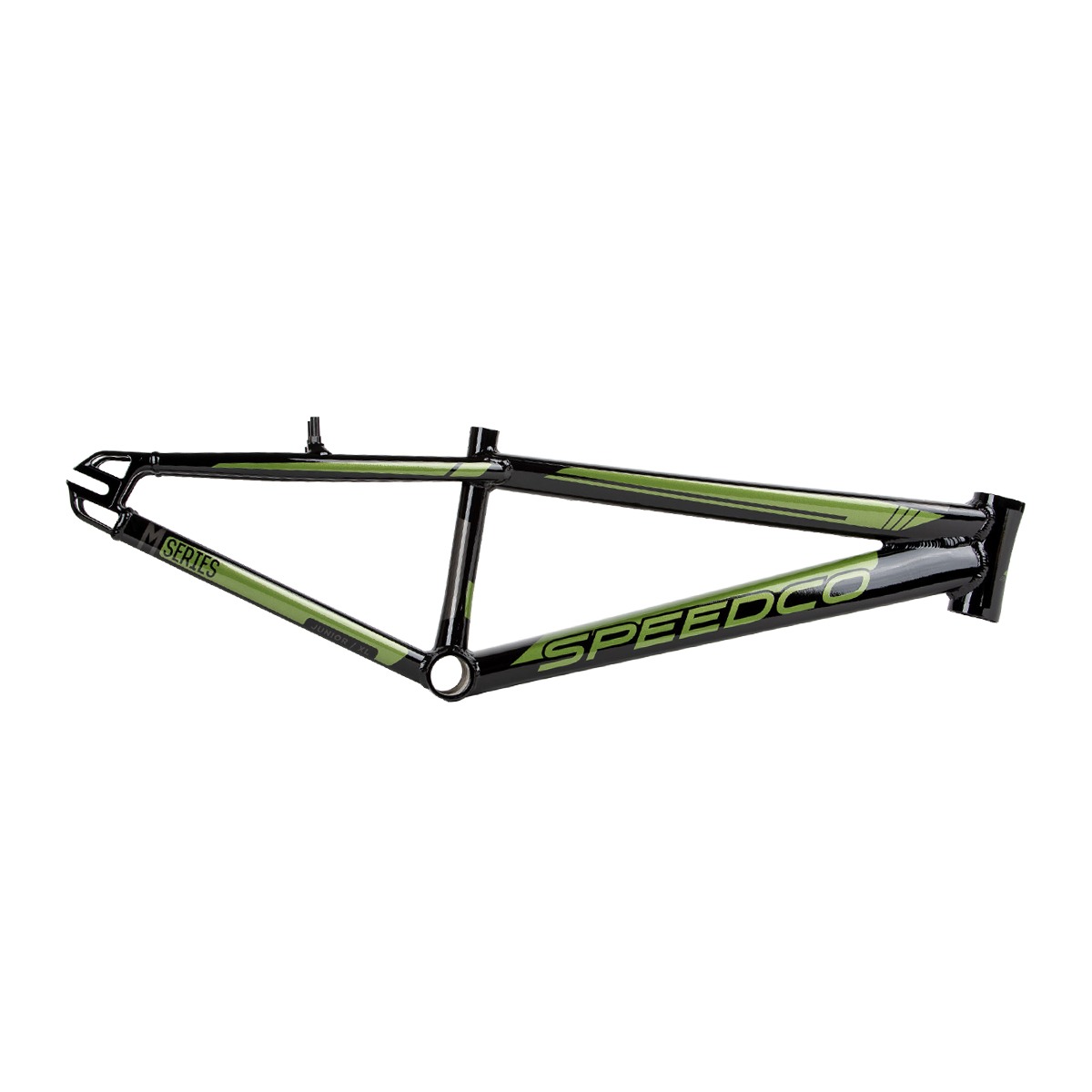

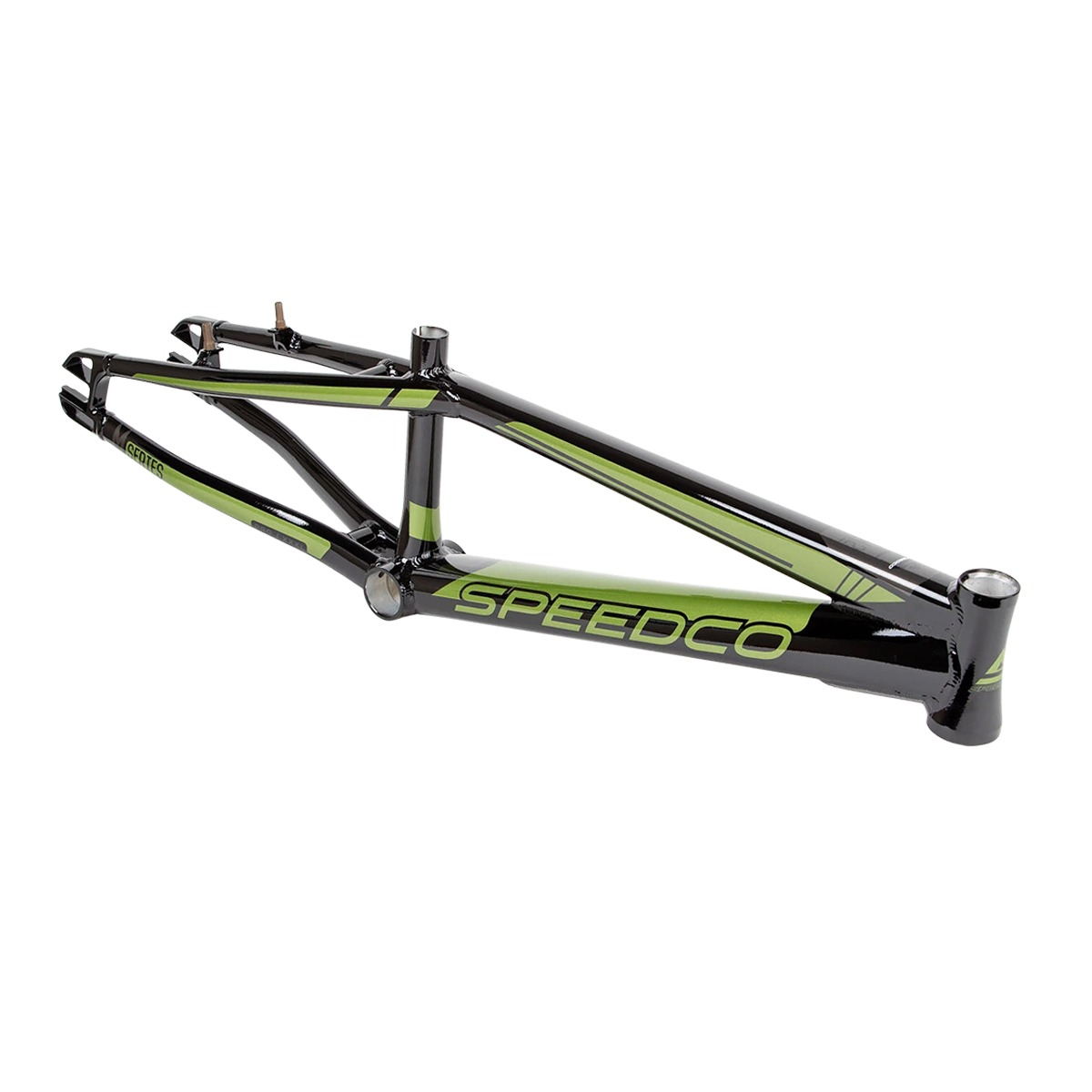

SPEEDCO M2 Frame black/olive
SPEEDCO M2 Frame black/olive
SPEEDCO M2 Frame black/olive SPEEDCO M2 Frame black/olive

SPEEDCO M2 Frame black/olive

The M2 aluminum frame was designed by SPEEDCO to aesthetically reproduce the Velox with the same characteristics: conical bush, BB86 box, integrated chain tensioner system. The M2 is the pinnacle of power and efficiency in an aluminum frame.

SPECS :
Pro and Cruiser sizes
• 7005 Aluminum double butted frame
• Tapered headset 1-1/8'' - 1.5''
• BB86 bottom bracket
• 10/15mm Dropouts
Sold with chain tensionners 10 and 15mm

Expert XL size
• 7005 Aluminum double butted frame
•  1-1/8 '' headset
• Euro BSA 68/73 bottom bracket
• 10mm Dropouts

More details



Availability :

579,00 € Tax incl.

Recommended retail price : 579,00 € TTC

Reference Bar Code Colors Frame Sizes Unit price Availability Quantity Buy
SPEFRAM069 Black/Olive Expert XL
579,00 €
SPEFRAM074 Black/Olive Pro
579,00 €
SPEFRAM084 Black/Olive Pro XL
579,00 €
SPEFRAM095 Black/Olive Pro XL +
579,00 €
SPEFRAM105 Black/Olive Pro XXL
579,00 €
SPEFRAM114 Black/Olive Pro XXXL
579,00 €
SPEFRAM124 Black/Olive Pro Cruiser
579,00 €
SPEFRAM133 Black/Olive Pro XL Cruiser
579,00 €
SPEFRAM142 Black/Olive Pro XXL Cruiser
579,00 €

The M2 Pro frame was designed to aesthetically replicate our flagship model, the Velox Carbon. With all the same features, such as tapered head-tube, BB86 bottom bracket, massive tapered down-tube, and the Integrated Tension dropout system; the M2 is the pinnacle of power & efficiency in an aluminum frame.

GEOMETRIES :

cadre

Sizes TT CS min HA OD HS SA SP BB BB type Wheels Weight
Expert XL 20″ 14″ 73° integrated OD 1-1/8″ 70° 22,2 mm 11″ Euro 20x1-3/8″
20x1.50
1,33 Kg
Pro 20,5″ 14,75″ 74° integrated tapered OD 1-1/8″ 1,5″ 72° 27,2 mm 11,5″ Press fit 20x1.75 1,67 Kg
Pro XL 21″ 14,75″ 74° integrated tapered OD 1-1/8″ 1,5″ 72° 27,2 mm 11,5″ Press fit 20x1.75 1,70 Kg
Pro XL+ 21,35″ 14,75″ 74° integrated tapered OD 1-1/8″ 1,5″ 72° 27,2 mm 11,5″ Press fit 20x1.75 1,72 Kg
Pro XXL 21,75″ 15,2″ 74° integrated tapered OD 1-1/8″ 1,5″ 72° 27,2 mm 11,5″ Press fit 20x1.75 1,75 Kg
Pro XXXL 22″ 15,2″ 74° integrated tapered OD 1-1/8″ 1,5″ 72° 27,2 mm 11,5″ Press fit 20x1.75 1,79 Kg
Cruiser Pro 21″ 15,4″ 73° integrated tapered OD 1-1/8″ 1,5″ 69,5° 27,2 mm 12″ Press fit 24x1.75 1,75 Kg
Cruiser Pro XL 21,75″ 15,4″ 73° integrated tapered OD 1-1/8″ 1,5″ 69,5° 27,2 mm 12″ Press fit 24x1.75 1,79 Kg
Cruiser Pro XXL 22,75″ 15,4″ 73° integrated tapered OD 1-1/8″ 1,5″ 69,5° 27,2 mm 12″ Press fit 24x1.75 1,86 Kg
