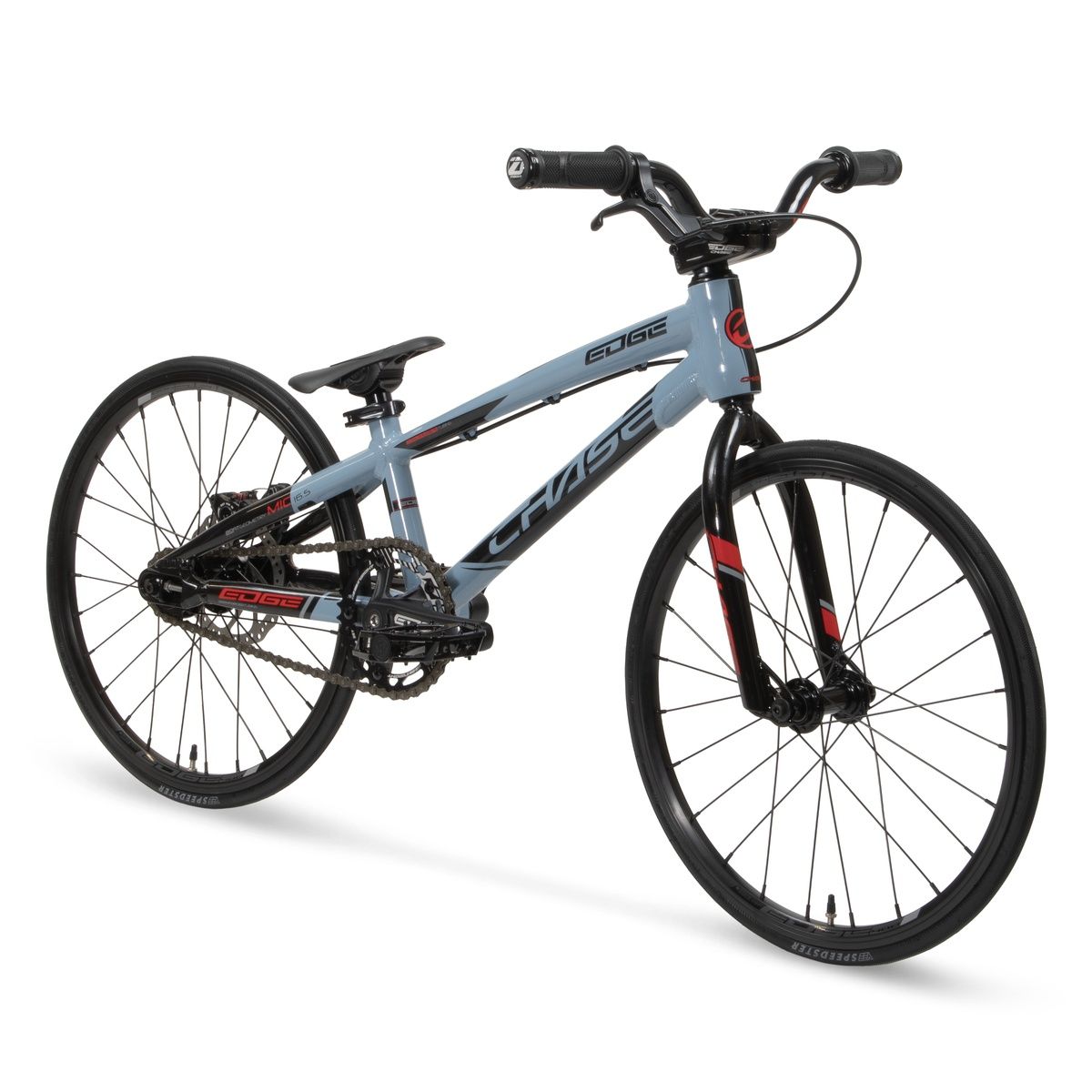

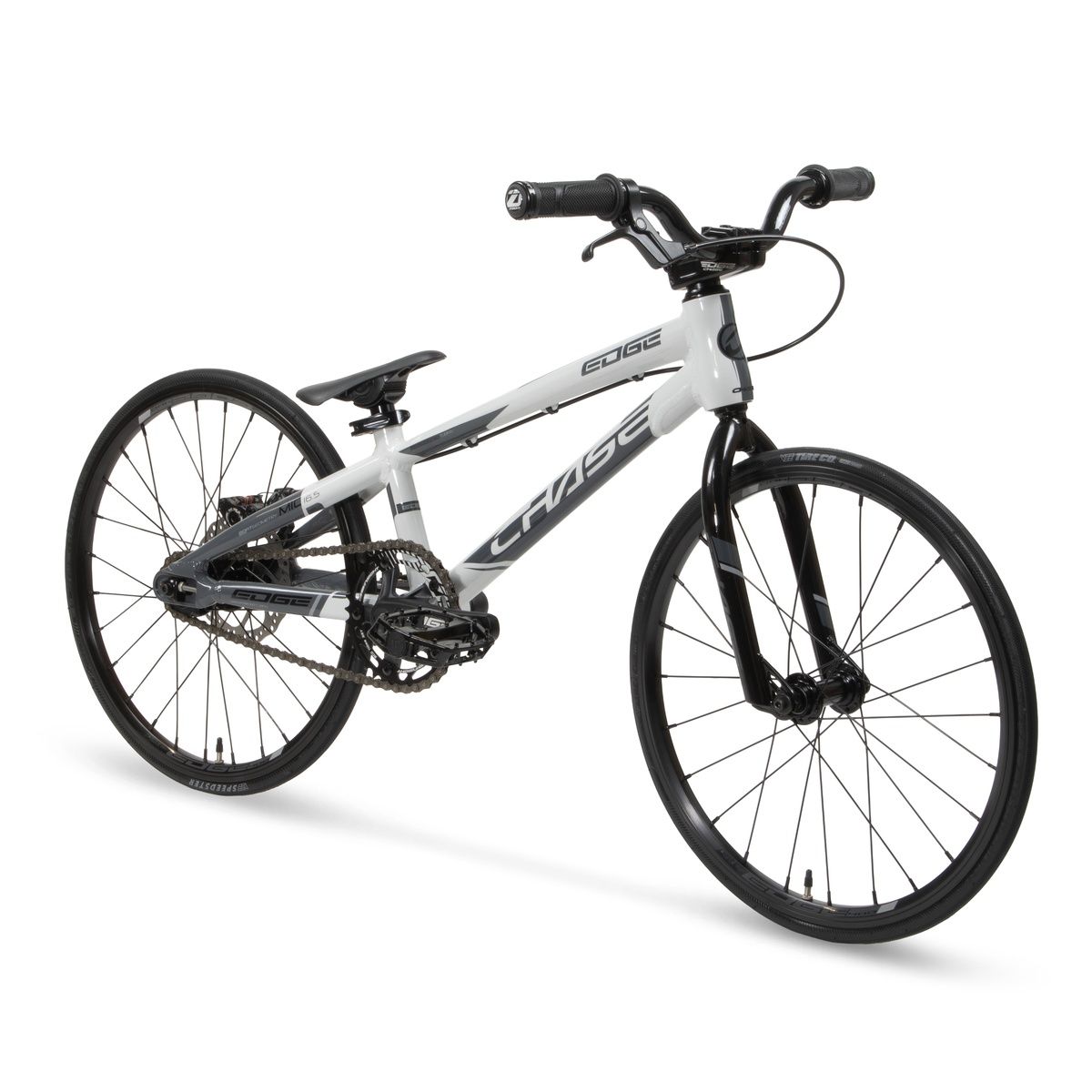

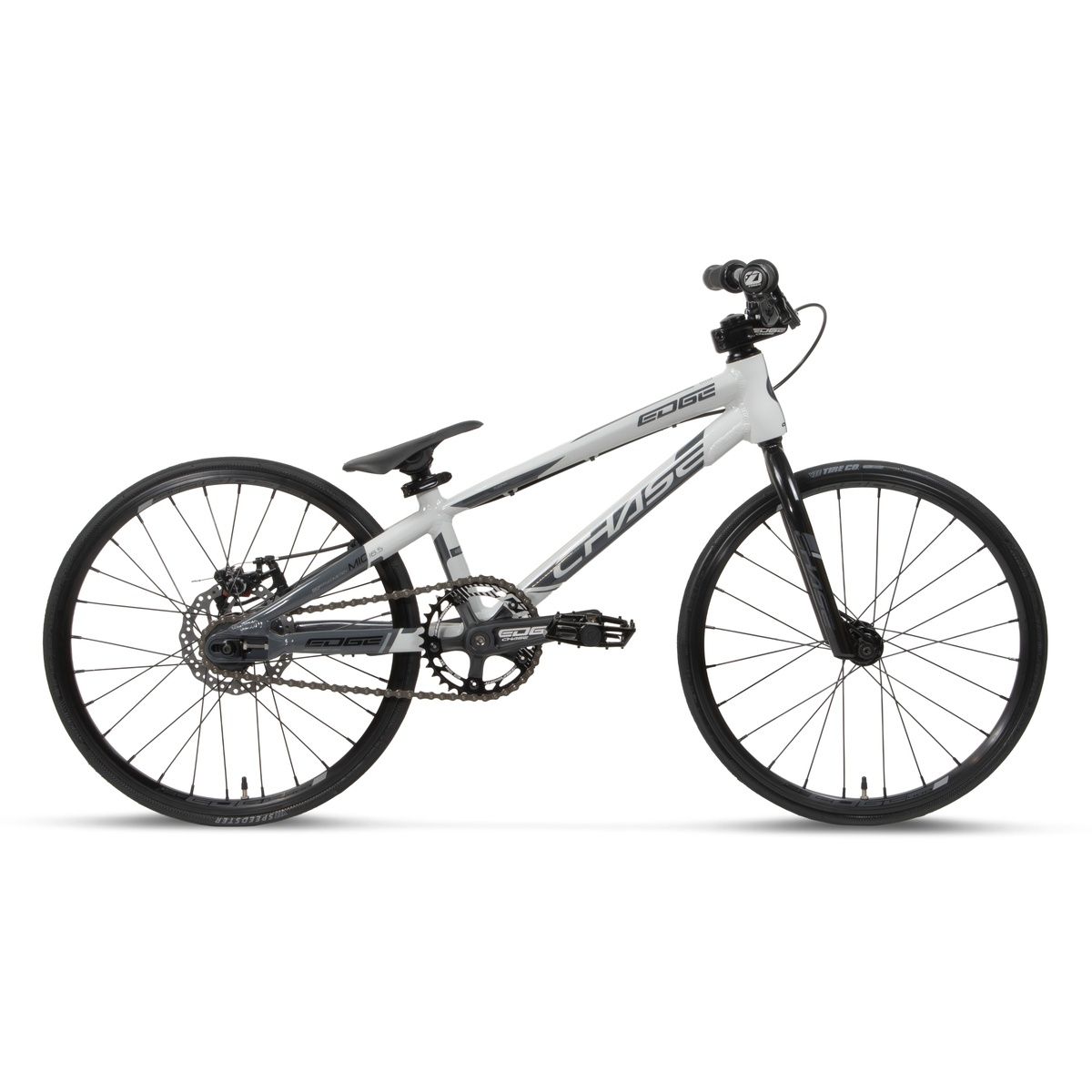

CHASE EDGE MICRO

699,99 € Tax incl.

Recommended retail price : 699,99 € TTC

Quantity

Colors

Reference:

Availability:

View Combination List

Buy in local shop

DESCRIPTION

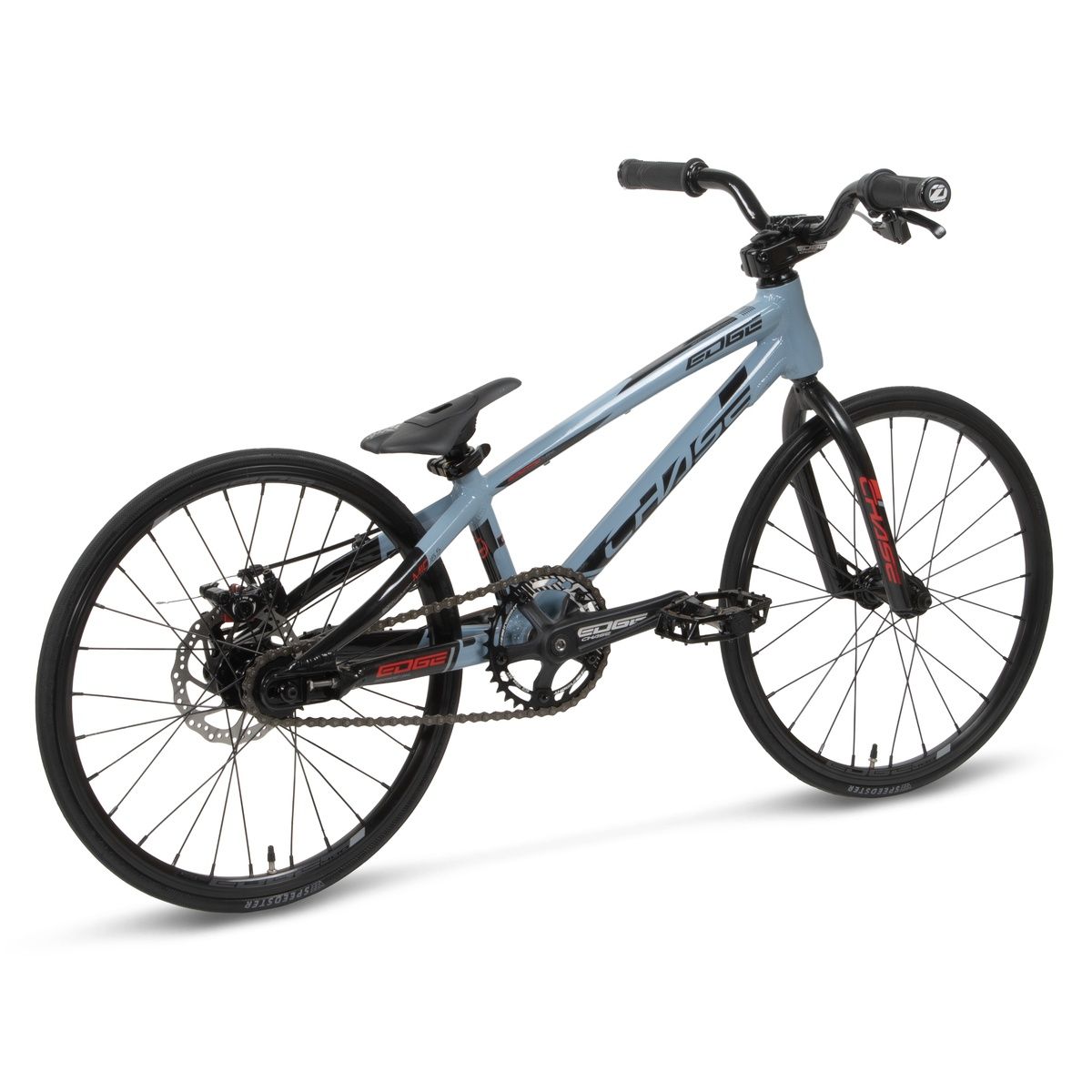

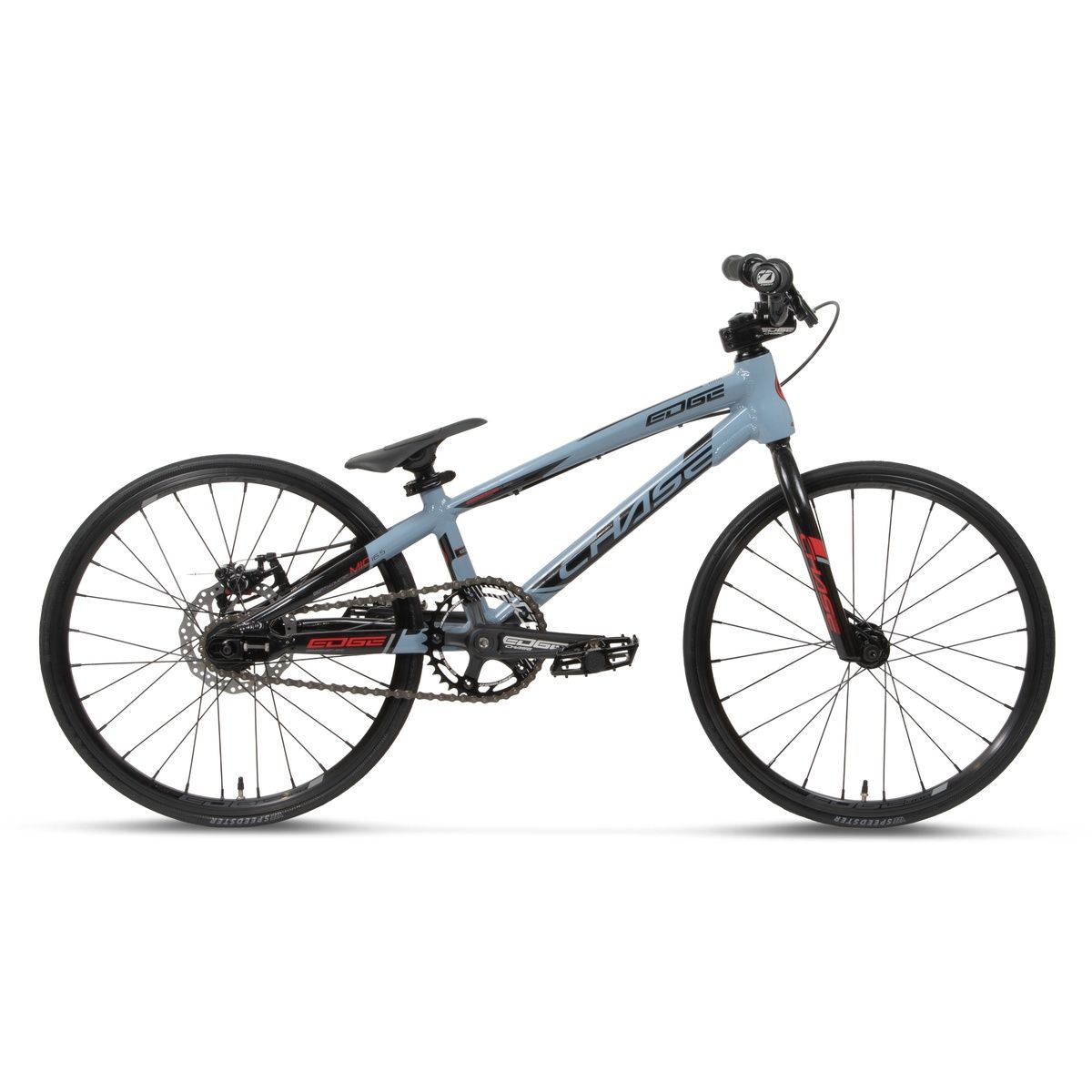

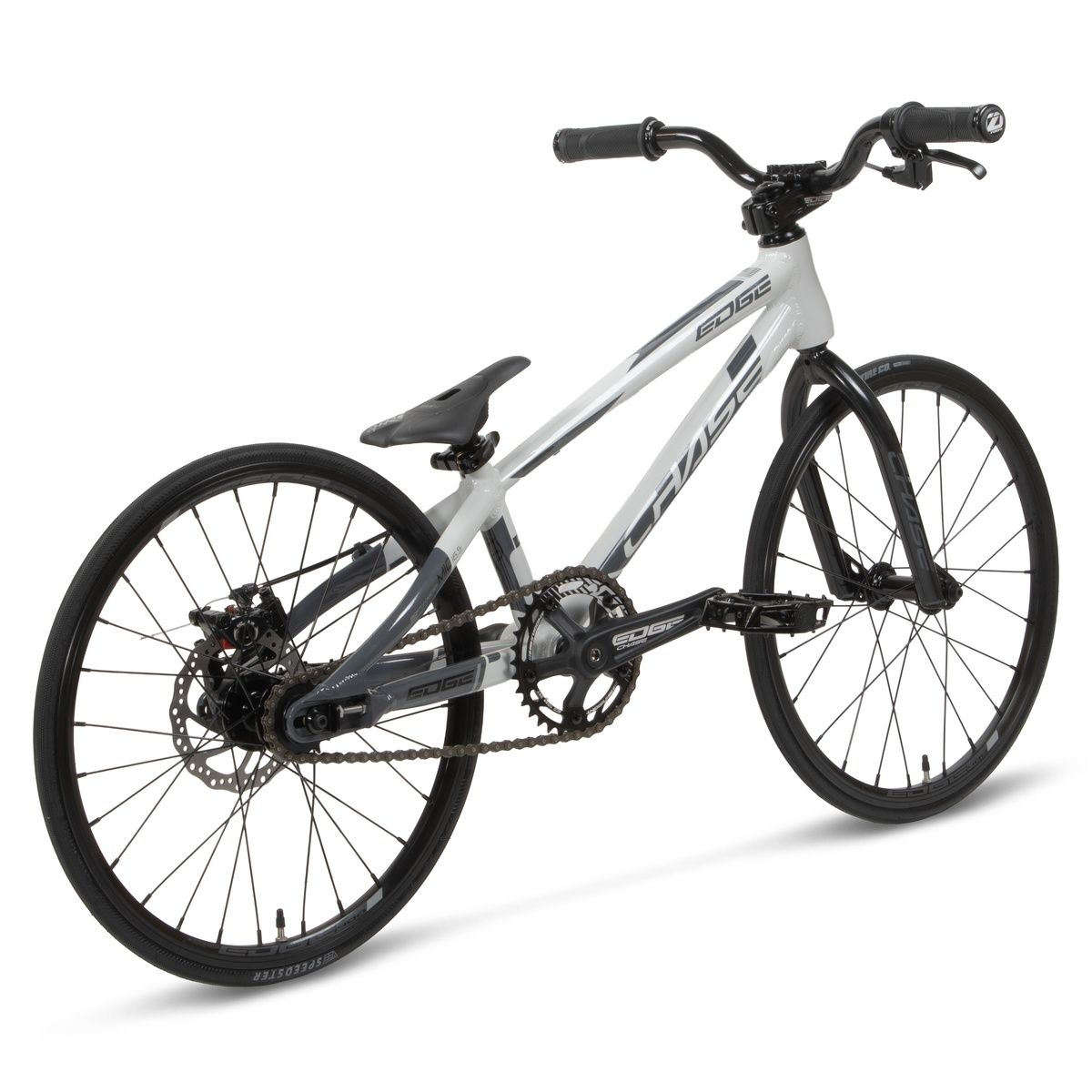

The all new CHASE Edge is a race ready BMX machine, ideal for riders ready to get serious about BMX racing and take it to the next level.
Just when you didn't think it was possible, the new Edge has been improved, as now it is equipped with Shimano Hydraulic disc brakes (Junior size & above), all new Chase 24mm 2 piece Alloy Cranks (Expert XL & Above) , updated gearing and crank sizes, a 2 tone paint and graphics design, and an closed rear dropout system with integrated chain tensioner system,. The Edge frame also features hydroformed, triple butted, 6061 aluminum tubes with an integrated head tube. Other featured parts on the Edge include 4130 chromoly fork and handlebars, double wall rims with triple engagement rear cassette rear hub, and TIOGA tires. The combination of all these components arguably makes the CHASE Edge one of the most advanced race BMX bikes available today.

FRAME: CHASE Edge Micro 16.25″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: CHASE Edge Micro, Full Cr-mo, 1″ Steer Tube
STEM: CHASE Edge 40mm
HANDLEBAR: CHASE Edge 2.25″
HEADSET: Integrated Sealed Bearing
CHAINRING: INSIGHT 35T 5 Bolts BCD 110mm
CRANKSET: CHASE Edge Alloy 130mm, 113mm squared axle BB
HUBS: CHASE Edge Mini, 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
RIMS: CHASE Edge 100 Double Wall 18″x1″, 24H Front, 28H Rear
TIRES: VEE RUBBER Speedster 18″x1″ Front and Rear
BRAKES: Mechanical, 140mm Disc Rotor, Shimano B01S Compatible Pads, Lock Disc Adaptor
SEAT: INSIGHT Mini Pivotal

RECOMMENDED SIZE: 1m00 – 1m15
WEIGHT: 6.99Kg without pedal

SIZES CHART

SPECIFICATIONS :

FRAME	CHASE Edge Micro 16.25″ Top Tube, 6061 T6 Alloy Triple Butted Hydroformed, Integrated Head Tube, Enclosed Rear Dropouts And Chain Tensioner System
FORK	CHASE Edge Micro Full Cr-mo, 1″ Steer Tube With Tapered Blades
HEADSET	Integrated IS 42/42 Reductor 1″, Sealed Bearing
HANDLEBAR	Chase Edge Cr-Mo 2.25″ Rise, 20″ Wide, 8° Back Sweep & 2° Up Sweep
GRIPS	INSIGHT C.O.G.S 115mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM	CHASE Edge 40mm 6061 T6 Alloy Laser Etched Logo
BB	Euro Square 113mm Sealed Bearing
CHAINRING	Insight 35 Tooth 5 Bolt 110mm 1/2″X3/32″ 3mm Alloy Ring
CRANK	CHASE Edge 3 Piece Crank 130mm Alloy Arm, Cr-Mo Chainring Bolts
PEDAL	Mini Platform 9/16" Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing
CHAIN	KMC Z1 narrow 1/2″x3/32″
COG	16T steel
FRONT HUB	Mini 24H, Sealed Bearing, 10mm Axle, M6 Bolts
REAR HUB	Mini ISO 28H, Sealed Bearing, 10mm Axle, M6 Bolts, Steel Cassette Body With 3 Pawls At Triple Angle Engagement For 24T Ratchets
SPOKES	Front 182mm, Rear 173/174mm, 14 Gauge, Steel
NIPPLES	16mm, 14 Gauge, Brass
FRONT RIM	Chase Edge Alloy 100 Double Wall 24H 18″X1″ Presta Valve
REAR RIM	Chase Edge Alloy 100 Double Wall 24H 18″X1″ Presta Valve
FRONT TIRE	Vee Rubber Speedster 18″X1″ Wire Bead
REAR TIRE	Vee Rubber Speedster 18″X1″ Wire Bead
TUBES	18″x1.00″ Presta Valve

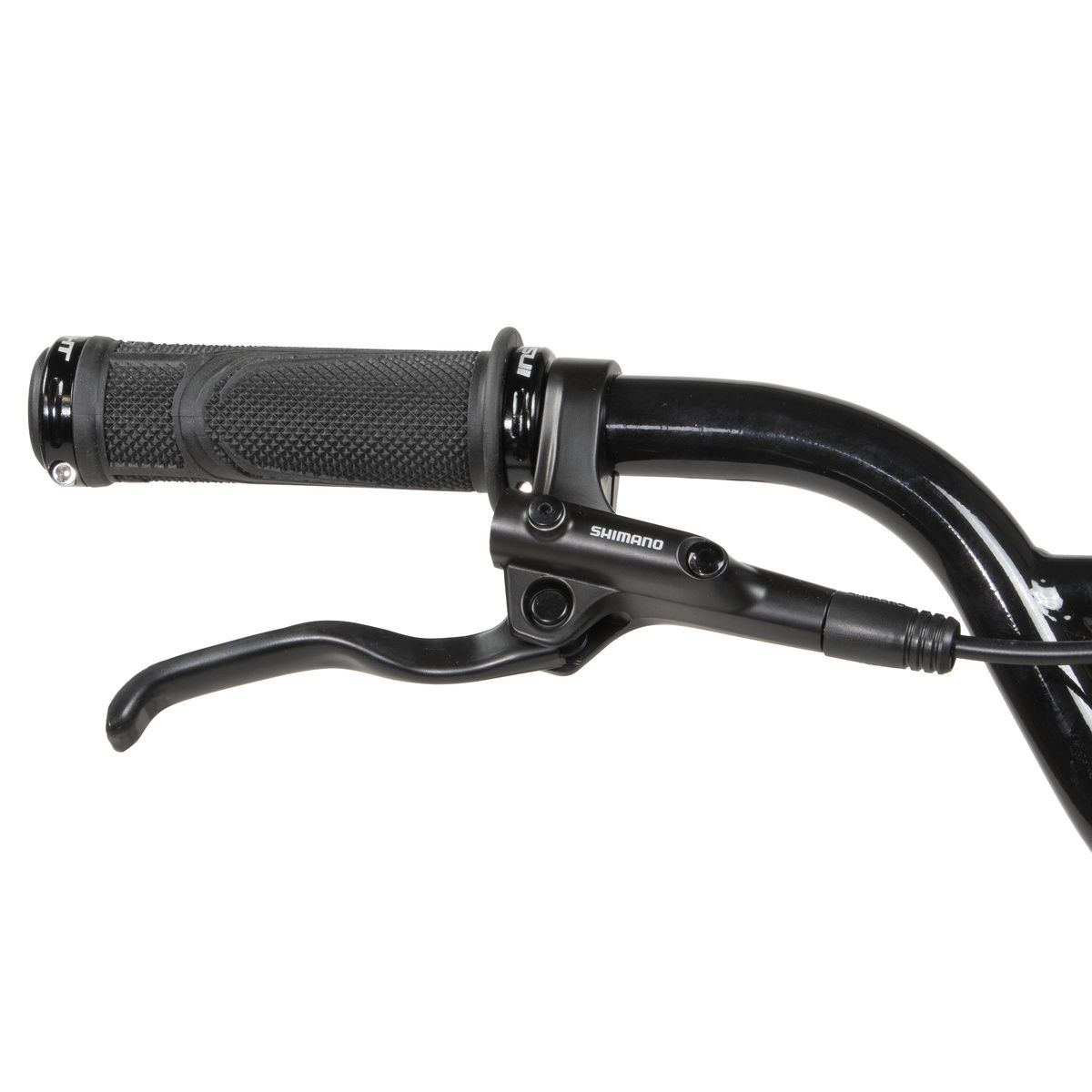

BRAKE LEVER	Junior/Expert Alloy

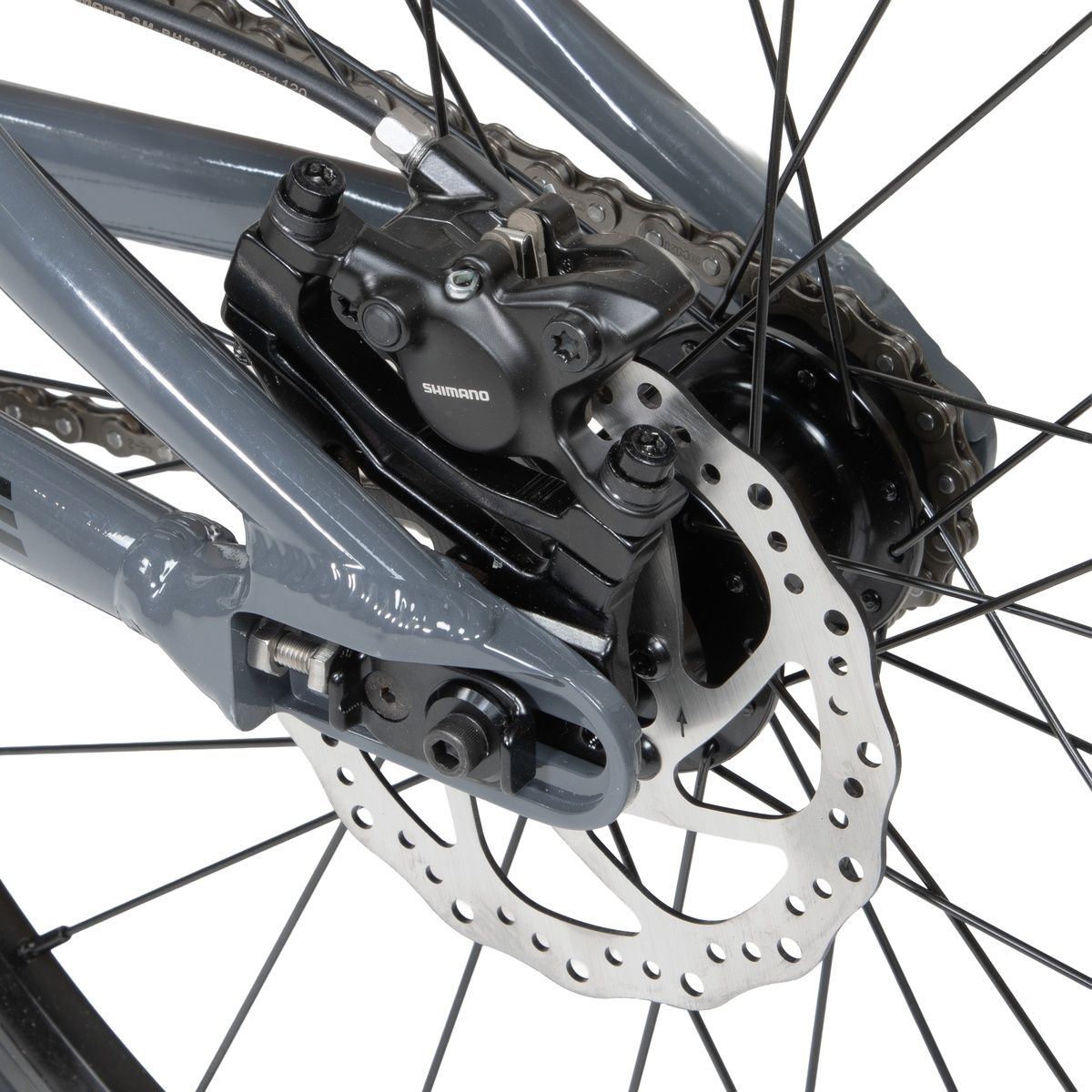

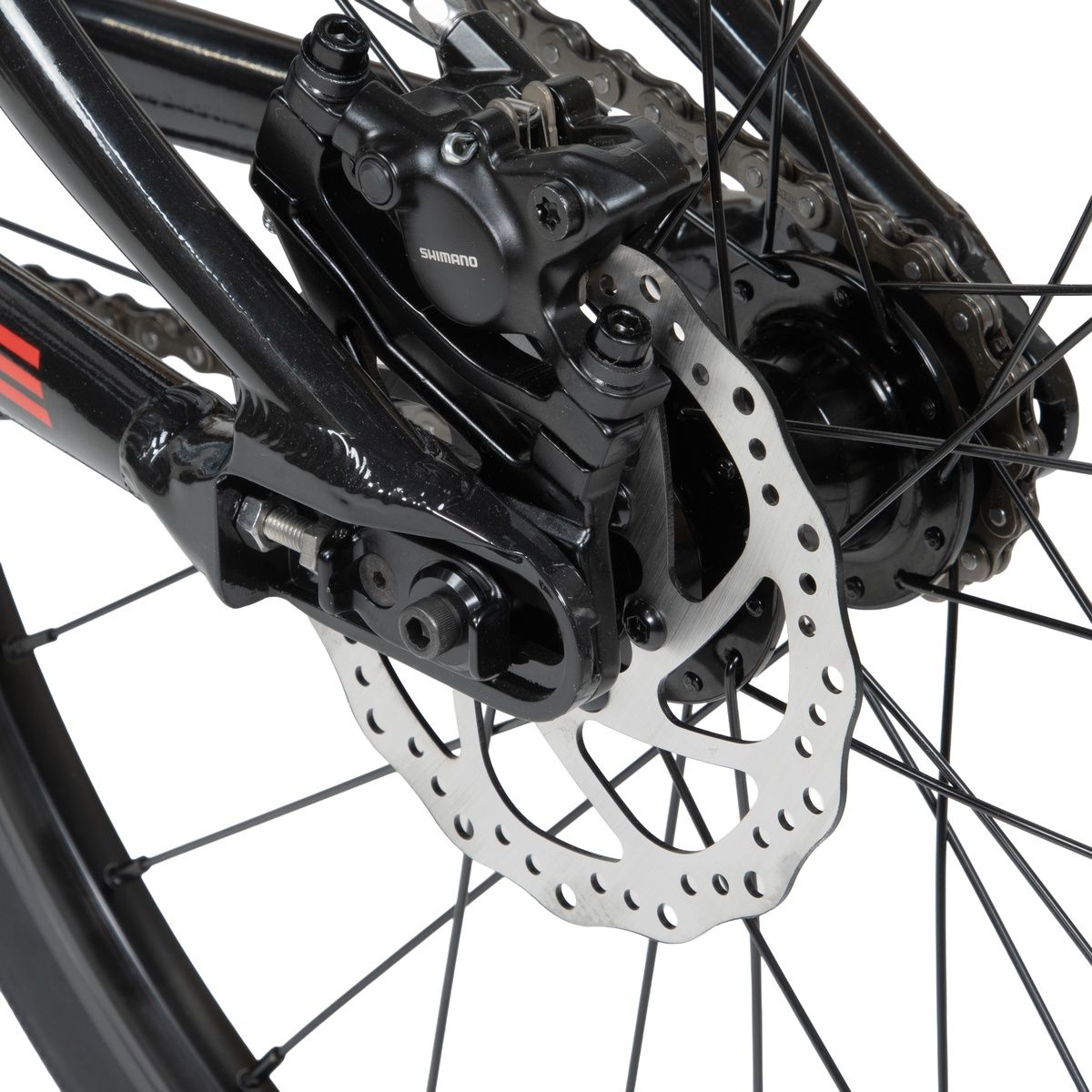

BRAKE CALIPER	Mechanical, 140mm Disc Rotor, Shimano B01S Compatible Pads, Lock Disc Adaptor

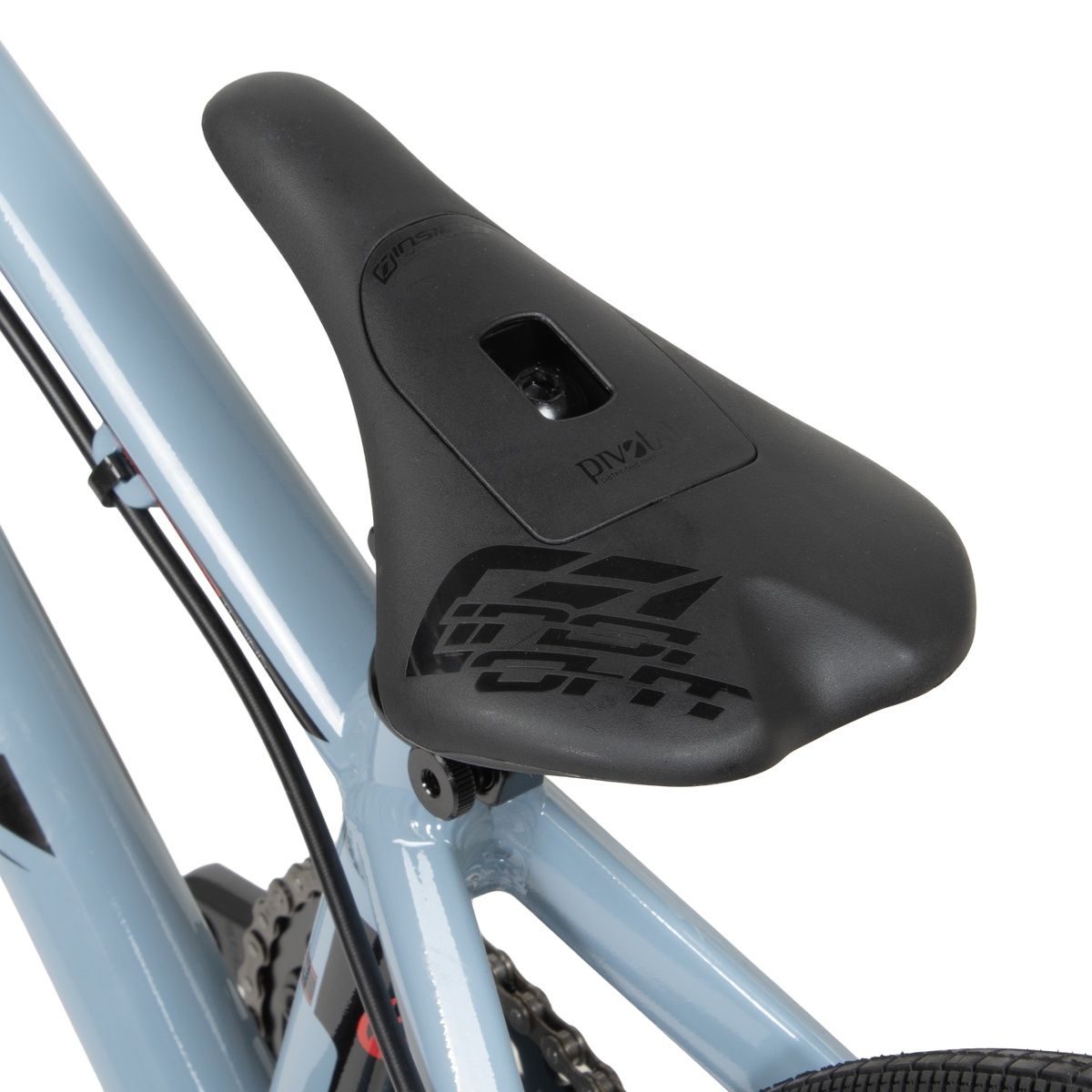

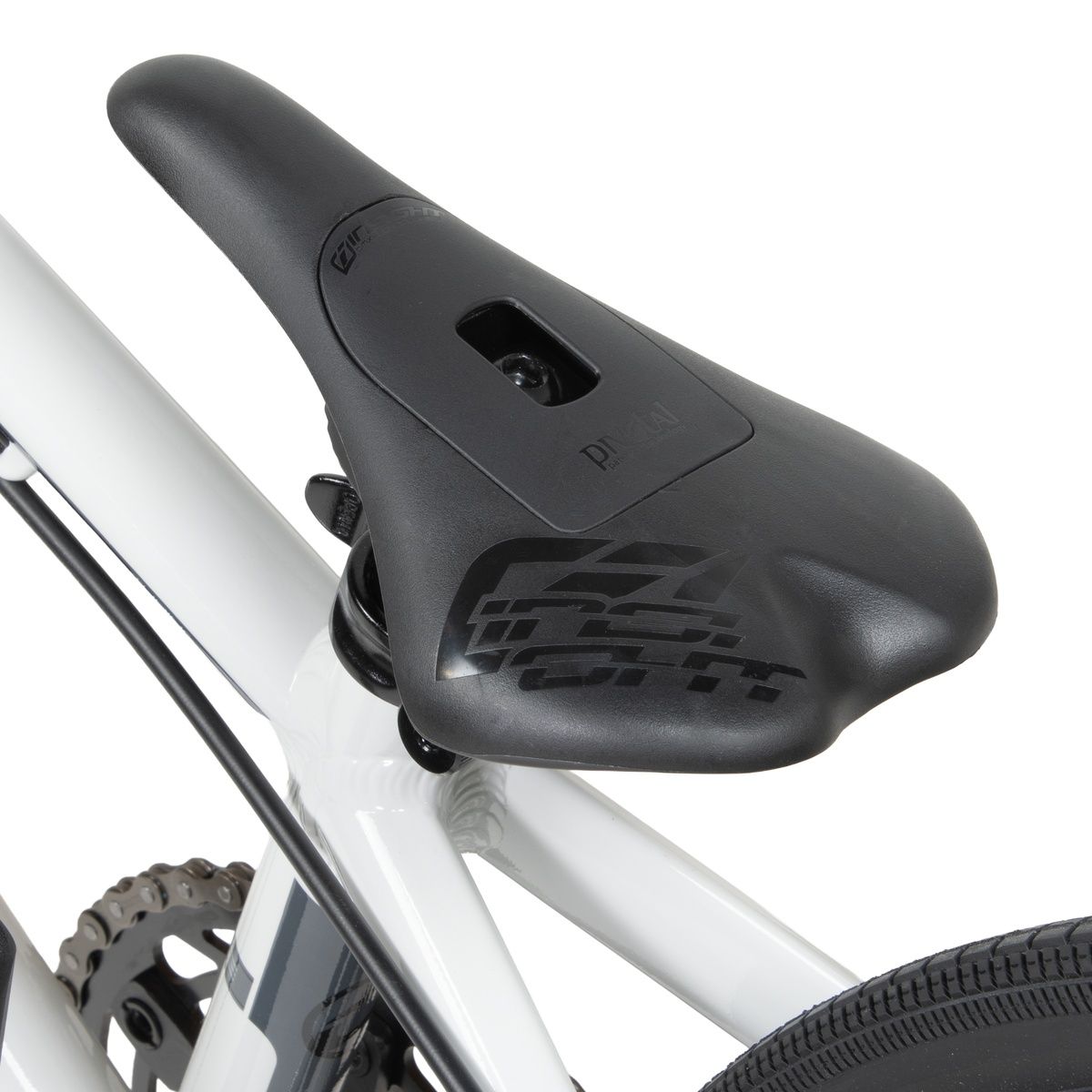

SADDLE	Insight Mini Pivotal Nylon Plastic Body With Cr-Mo Bolt
SEAT POST	Chase Edge QR Alloy 28.6mm
SEAT CLAMP	Chase Edge QR Alloy 28.6mm
CHAIN TENSIONNER	Integrated Built-In With New Lock Disc Adaptor

GEOMETRIES :

Sizes	TT	CS min	LR	HA	SA	HT	SPL	BBH	WB	Wheels
Micro	16.25" 412.75 mm	10.85" 275.6 mm	1.8" 46 mm	71°	69°	4" 100 mm	8" 203.5 mm	10.25" 254 mm	732 mm	18x1"
Mini	17.25" 438.15 mm	12.25" 312 mm	1.8" 46 mm	72°	70°	4.33" 110 mm	8.8" 225 mm	10.6" 269.2 mm	800 mm	20x1-1/8"
Junior	18.75" 476.25 mm	12.5" 317.5 mm	1.8" 46 mm	73°	72°	4.33" 110 mm	8.8" 225 mm	10.6" 269.2 mm	859.9 mm	20x1-1/8"
Expert	19.75" 501.65 mm	13" 330.2 mm	1.8" 46 mm	73°	72°	4.33" 110 mm	8.8" 225 mm	11" 279.4 mm	883.8 mm	20x1-3/8"
Expert XL	20" 508 mm	13.5" 353 mm	1.8" 46 mm	73°	72°	4.7" 120 mm	8.8" 225 mm	11.5" 292.1 mm	903 mm	20x1.50"
Pro	20.5" 520.7 mm	14" 355.6 mm	1.8" 46 mm	74°	72°	4.7" 120 mm	9.4" 238 mm	11" 279.4 mm	938 mm	20x1.75"
Pro XL	21" 533.4 mm	14.15" 359.4 mm	1.8" 46 mm	74°	72°	4.7" 120 mm	9.3" 238 mm	11.5" 292.1 mm	945.2 mm	20x1.75"
Pro XXL	21.5" 546.1 mm	14.15" 359.4 mm	1.8" 46 mm	74°	72°	4.7" 120 mm	9.3" 238 mm	11.5" 292.1 mm	969.5 mm	20x1.75"
Cruiser	21.5" 546.1 mm	14.5" 368.3 mm	1.8" 46 mm	74°	71°	4.7" 120 mm	10.6" 270 mm	12" 304.8 mm	964.5 mm	24x1.75"

Complete Bike specs are subject to change throughout the year due to parts upgrades or parts shortages and changes that are made out through our production cycle to improve the quality of the complete bikes. Photo & listed Specs may slightly differer due to this.
