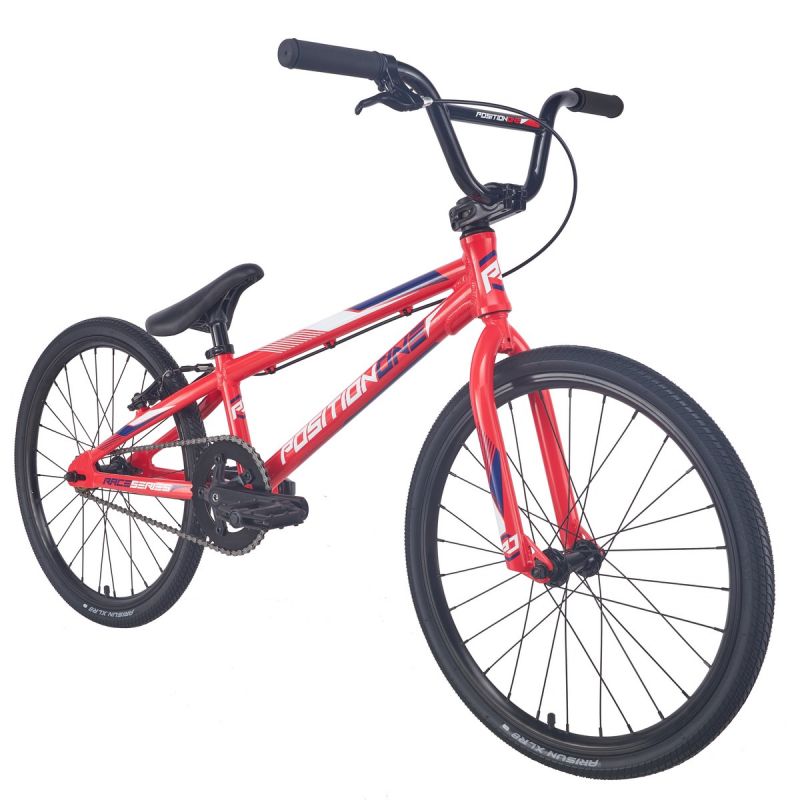

The POSITION ONE Race were specially created to introduce beginners to BMX Race thanks to a range of studied geometry, thus offering you the best value for money in an entry-level BMX. Equipped with a 6061 aluminum frame with integrated steering, it is equipped with a chromoly fork and handlebars, a 3-piece crankset, double-wall rims, V-Brake braking and ARISUN XLR8 tires.

FEATURES :

  • Aluminum 6061-T6 frame
  • Integrated headtube 1-/8"
  • Full Chromoly fork and handlebar
  • 3-piece Alumnium crankset 165mm
  • 42T 5 point Steel Chainring
  • Double wall rims 20x1-3/8"
  • Euro bottom bracket
  • Freewheel rear hub 16T
  • ARISUN tires 20x1-3/8"
  • KMC chain


RECOMMENDED SIZE: 1m32 – 1m47
WEIGHT: 8.8 Kg without pedal

More details



479,99 € Tax incl.

Recommended retail price : 479,99 € TTC

Availability :

Buy in local shop

Reference Bar Code Colors Unit price Avail. Quantity
POSCOBI038 764333097808 Black
479,99 €
POSCOBI039 764333097815 White
479,99 €
POSCOBI040 764333097822 Red
479,99 €

SPECIFICATIONS :

FRAME
 Expert 19.75" Top Tube 6061 T6 Alloy, Integrated Head Tube, 1-1/8", Water Decals
FORK
 Full Cr-mo, 1-1/8" Steer Tube
HEADSET
 Integrated IS 42/42 1-1/8", Sealed Bearing
HANDLEBAR
 Cr-mo 5.75" Rise, Diameter 22.2mm, 24.5" Wide, 8° Back Sweep & 2° Up Sweep
GRIPS
 Single Ply 130mm Flangeless
STEM
 53mm 6061 T6 Alloy  Top Load
BB
 Euro Square 118mm Sealed Bearing
CHAINRING
 Aluminium 42 teeth 5 Bolts BCD 110mm Steel
CRANK
 3 Pieces Crank 165mm Alloy Arm, Cr-mo Chain Ring Bolts / Nuts
PEDAL
 Platform Nylon 9/16"
CHAIN
 KMC Z33 1/2"x3/32"
FREEWHEEL 16 Tooth 1/2"x3/32"
FRONT HUB
 28H, Double Contact Seals Bearing, 3/8" Axle/Nuts
REAR HUB
 28H, Double Contact Seals Bearing, 3/8" Axle/Nuts
SPOKES
 Front 213mm, Rear 211mm, 14 Gauge, Steel
NIPPLES
 16mm, 14 Gauge, Brass
RIMS
 Double Wall Alloy 28H 1-3/8" Schrader Valve
TIRES
 Arisun XLR8 1-3/8" Wire Bead
TUBES
 20x1-3/8" Schrader Valve
BRAKE LEVER
 Junior/Expert Alloy
BRAKE CALIPER
 V-Brake 95mm
SADDLE
 Expert/Pro Combo Padded, 25.4mm Alloy Post
SEAT CLAMP
 28.6mm Alloy 1 Bolt


GEOMETRIES :

Sizes TT CS min LR HA SA HT SPL BBH Wheels
Micro 16.15"
410.2 mm		 10.85"
275.6 mm		 1.8"
46 mm		 71° 69° 4"
100 mm		 8"
203.2 mm		 9.1"
231.1 mm		 18x1"
Mini 17.25"
438.1 mm		 12.5"
317.5 mm		 1.8"
46 mm		 72° 70° 4"
100 mm		 8.65"
219.7 mm		 10.6"
269.2 mm		 20x1-1/8"
Junior 19"
482.6 mm		 13"
330.2 mm		 1.8"
46 mm		 73° 72° 4"
100 mm		 8.75"
222.2 mm		 10.6"
269.2 mm		 20x1-1/8"
Expert 19.75"
501.6 mm		 13.25"
336.5 mm		 1.8"
46 mm		 74° 72° 4"
100 mm		 8.75"
222.25 mm		 11"
279.4 mm		 20x1-3/8"
Pro 20.5"
520.7 mm		 14.25"
361.95 mm		 1.8"
46 mm		 74° 72° 4.33"
110 mm		 9.25"
234.95 mm		 11"
279.4 mm		 20x1.75"
