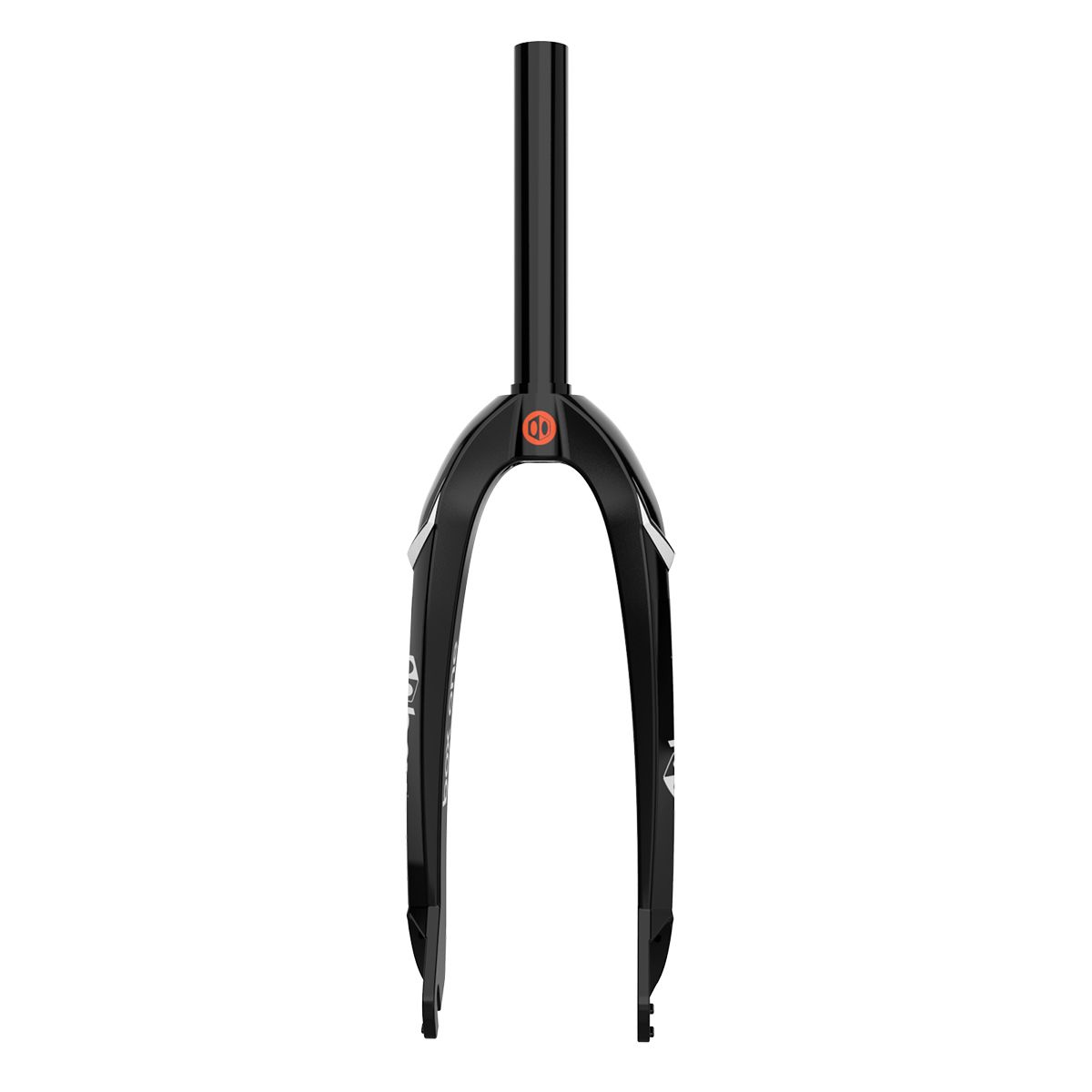

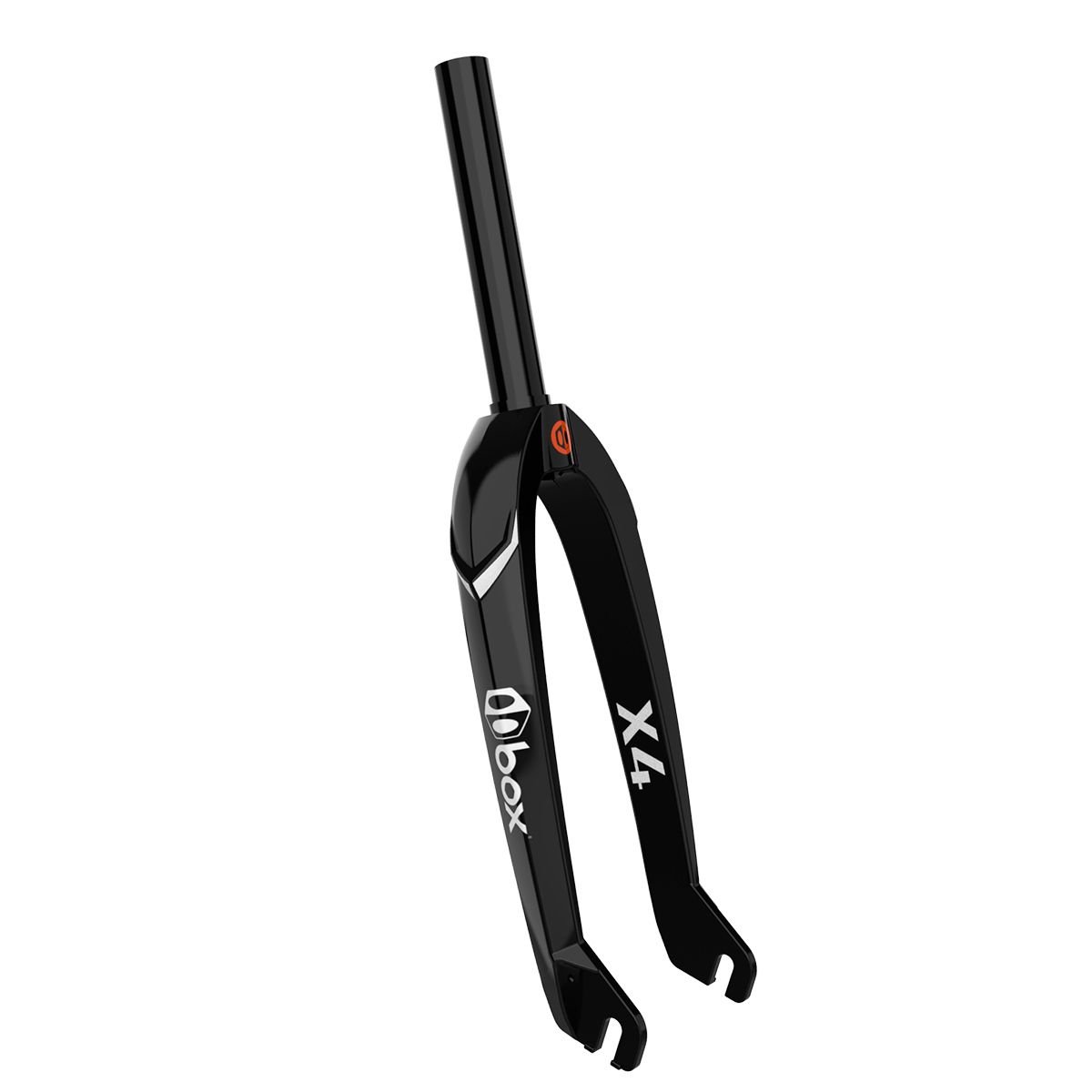

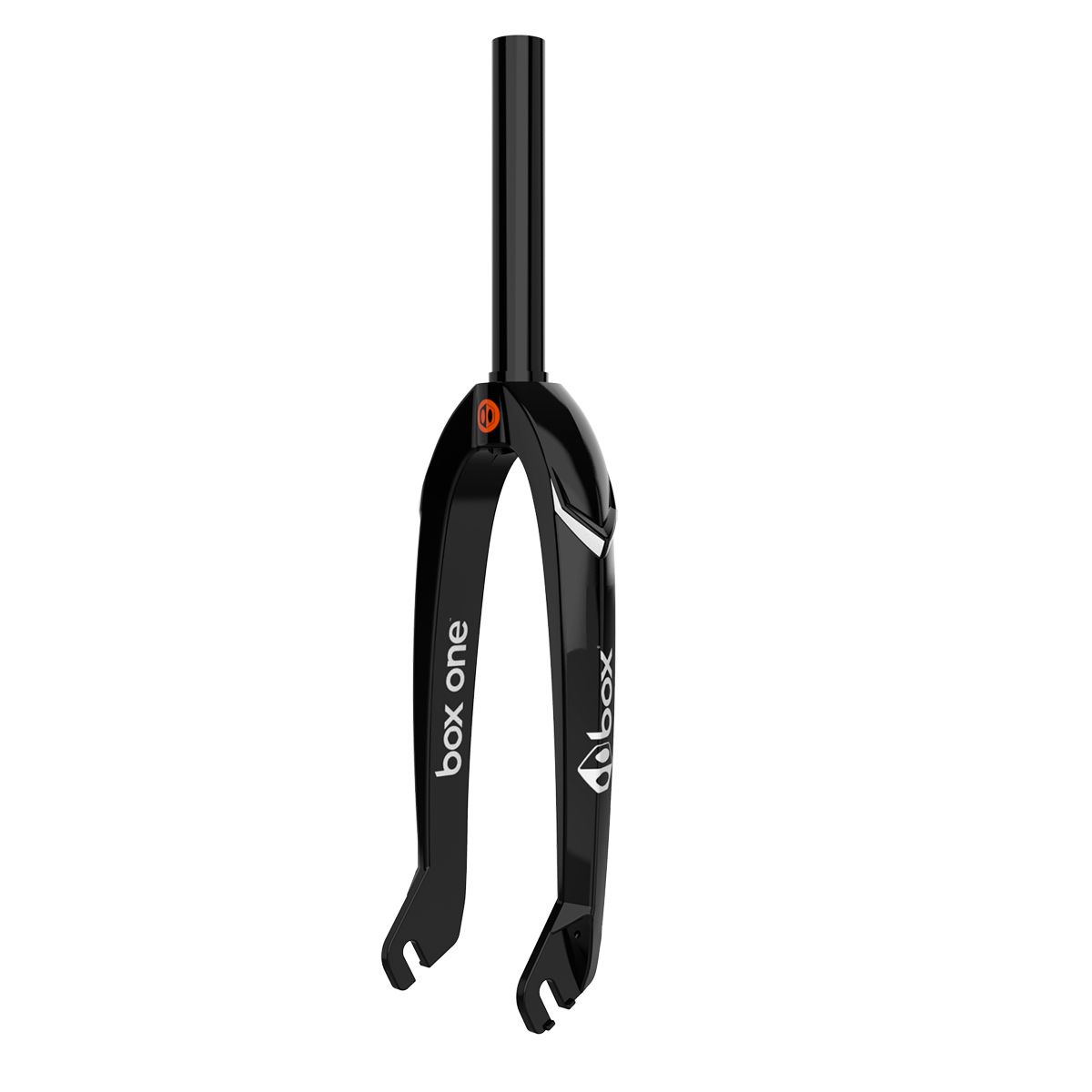

BOX one X4 Pro 24" 10mm fork

All Box One forks are designed and manufactured using Box’s Oversized technology. These forks are the most critical component for ensuring bike control. Box has redistributed carbon from low-stress areas to those subjected to high loads. These muscular steerer tubes aren’t just for looks—they’re essential for achieving superior steering stiffness. Combined with Box’s other Oversized components, they offer increased responsiveness and reduced response time.

Key differences: This fork model is specifically designed for taller riders and therefore features a lightweight 1-1/8-inch 7000-series aluminum steerer tube and 10mm cold-forged dropouts.

Weight limit: 115 kg (253 lb) with restrictions in accordance with Category 2 of EN 16054:2012

SPECIFICATIONS:

• Legs: High-modulus unidirectional carbon fiber
• Steerer tube: 7075-T6 aluminum
• Crown and dropouts: 6061-T6 aluminum
• Height: 24”
• Pivot: 1-1/8" straight
• Offset: 32 mm
• Dropouts: 10 mm
• Height from crown to axle: 24” 354 mm
• Weight: 575 g

COMPATIBILITY:

• For 24“ frames with integrated 1-1/8” steerer tube
• For 24" wheels with 10 mm axle
