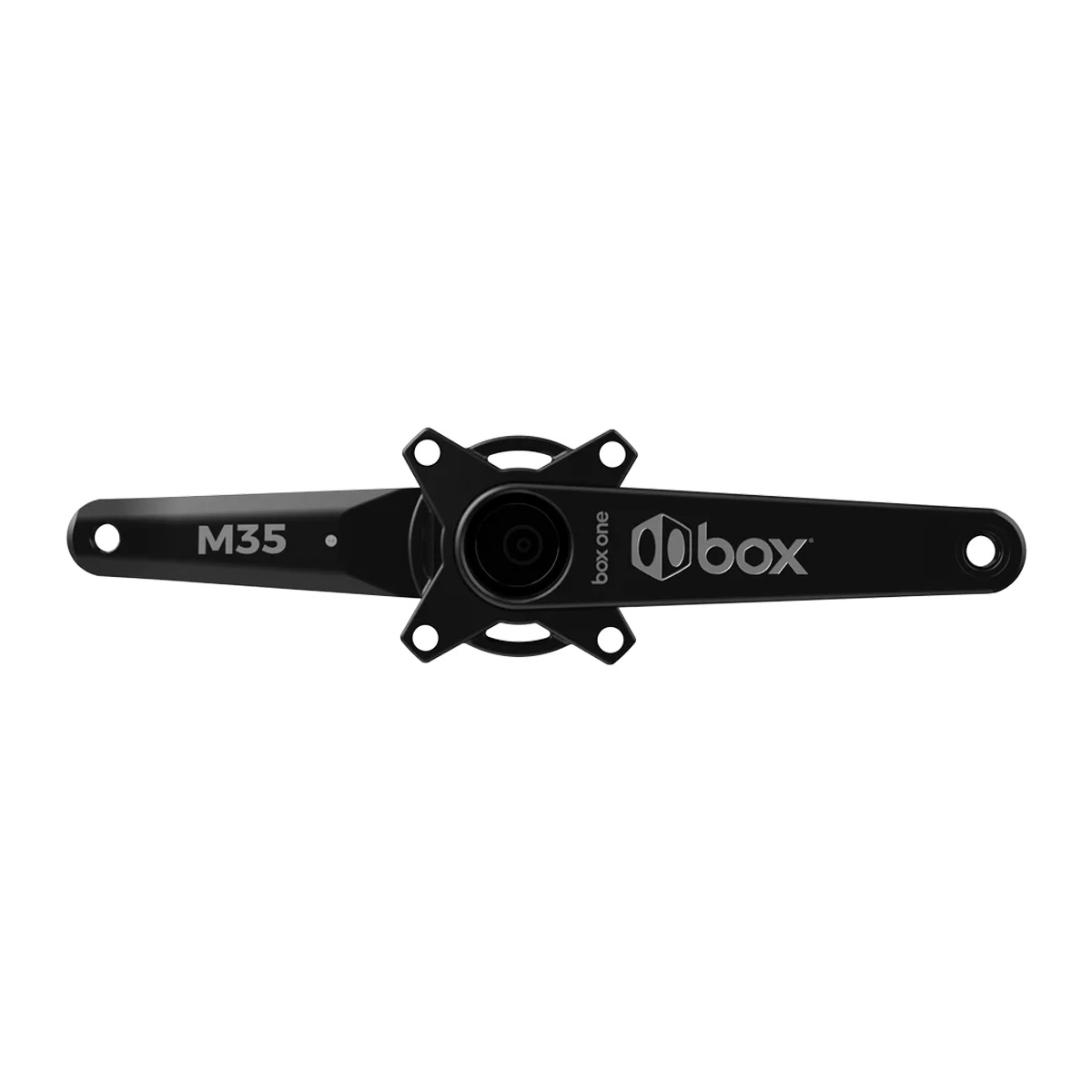

BOX one M35 Crankset

One of a kind, the BOX One M35 crankset has proven to be the go-to choice for Elite BMX Race riders. It is the first crankset in the world to feature a 35mm oversized spindle external bottom bracket system intended exclusively for BMX frames with BB30 / PF30 bottom brackets. Cold forged from 7075 aluminum, its oversized hollow cranks and axle make it the stiffest BMX Race crankset on the market today.

FEATURES :
• 2-piece crankset
• Forged Aluminum 7075-T6 Hollow cranks
• 35mm Forged Aluminum 7075-T6  axle
• CNC machined aluminum spider
• 4 bolts mount BCD diameter 104mm
• Chain line: 44.5mm
• Q-factor: 168mm
• Weight: 1020g (175mm)

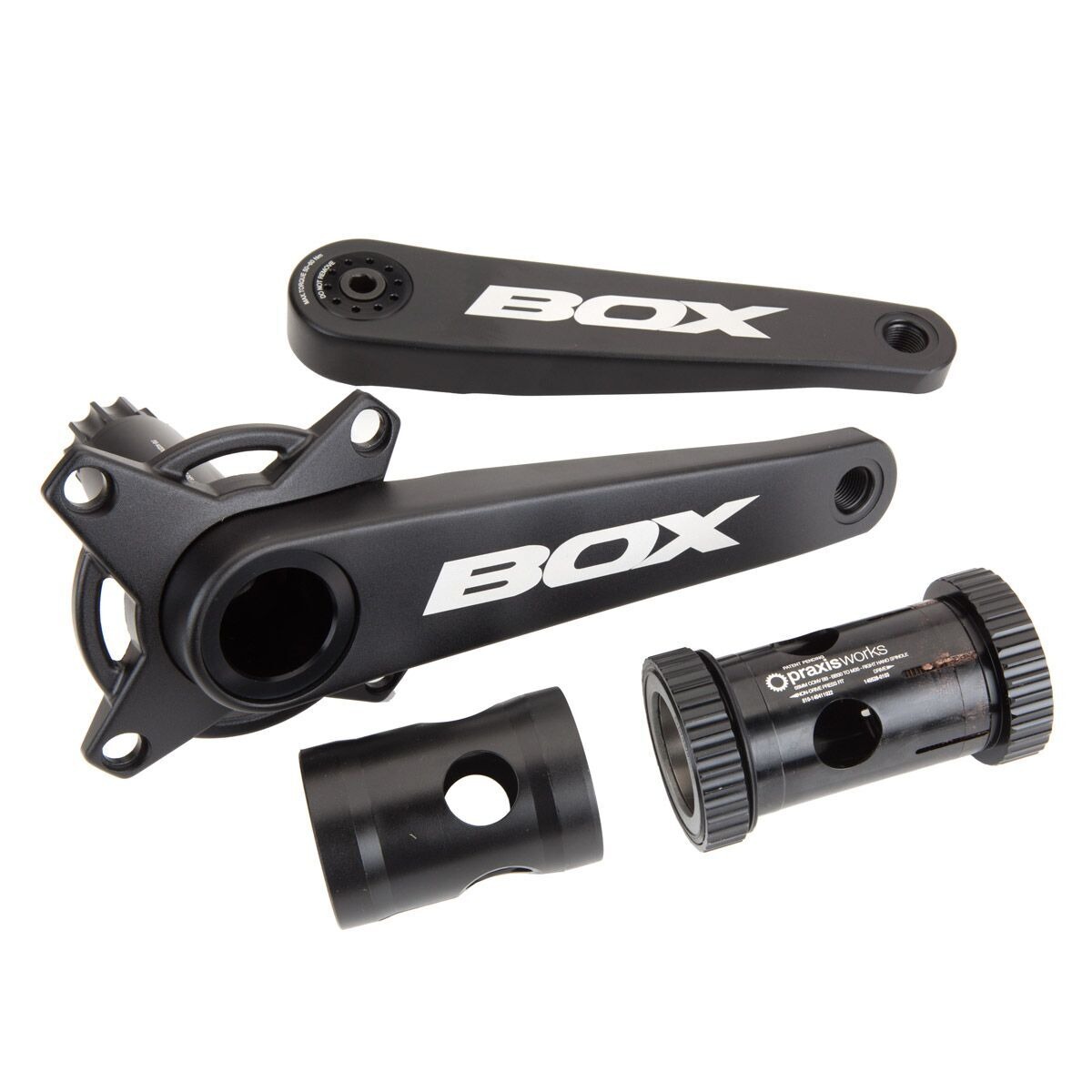

• Sold with BOX M35 bottom bracket and installation tool
• Drive-side bottom bracket seal not include because isn't require

COMPATIBILITY:
• ONLY FOR FRAMES COMPATIBLE WITH PF30 / BB30 BOX
• NOT COMPATIBLE with Euro BSA/BSC, Press Fit BB86 or T47 bottom brackets.

Do not use pedal washers when installing pedals on these cranks. The M35 cranks have been designed for use without pedal washers.
