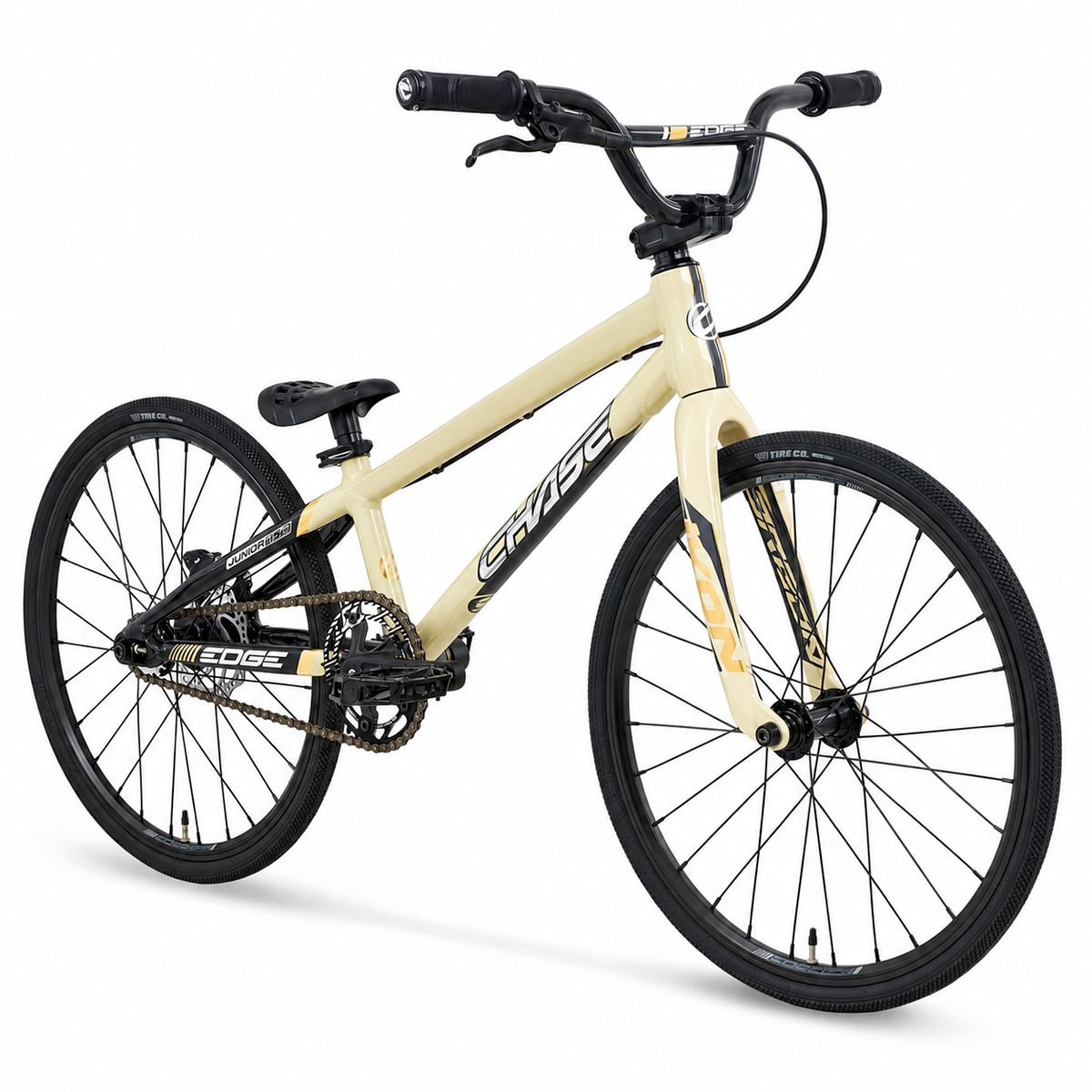

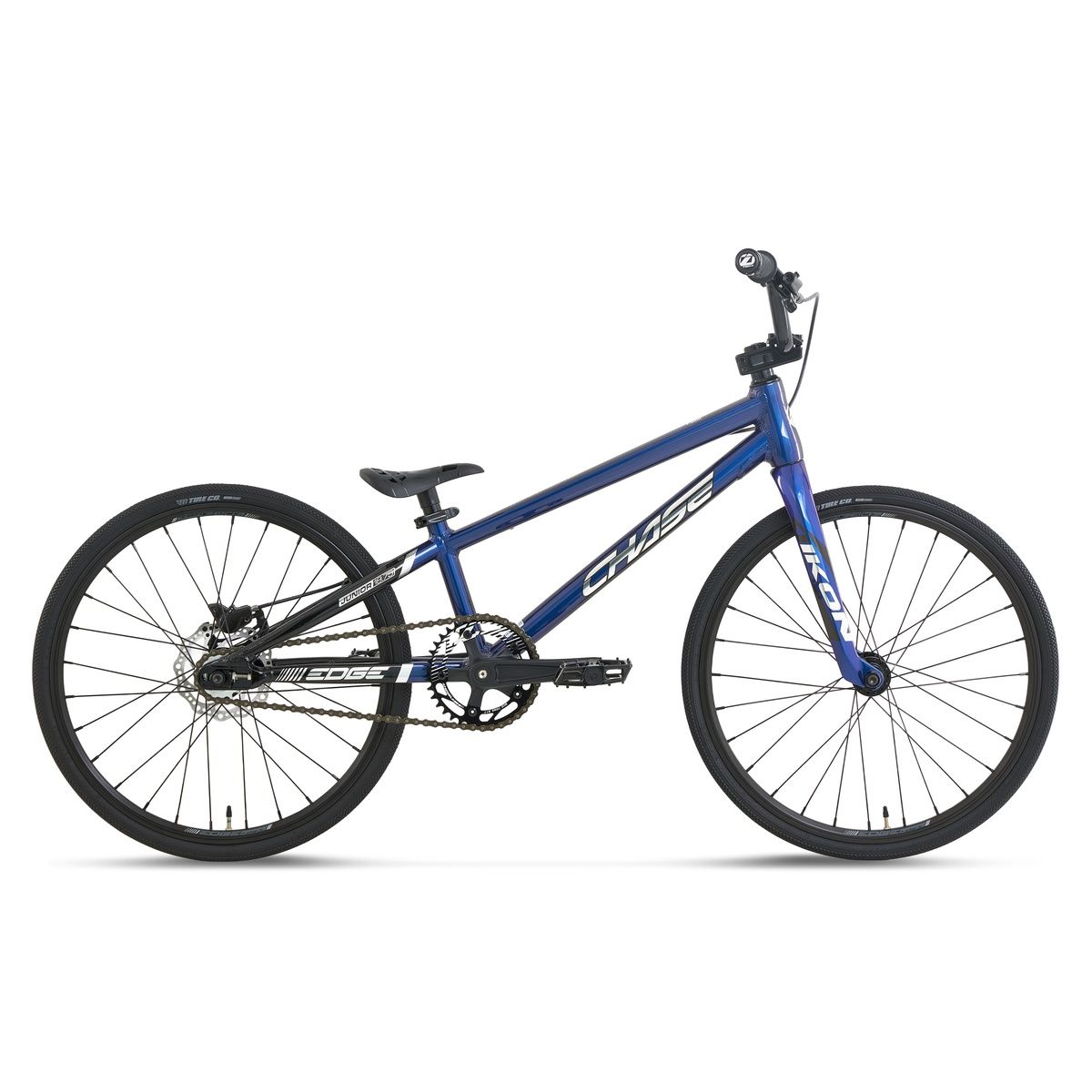

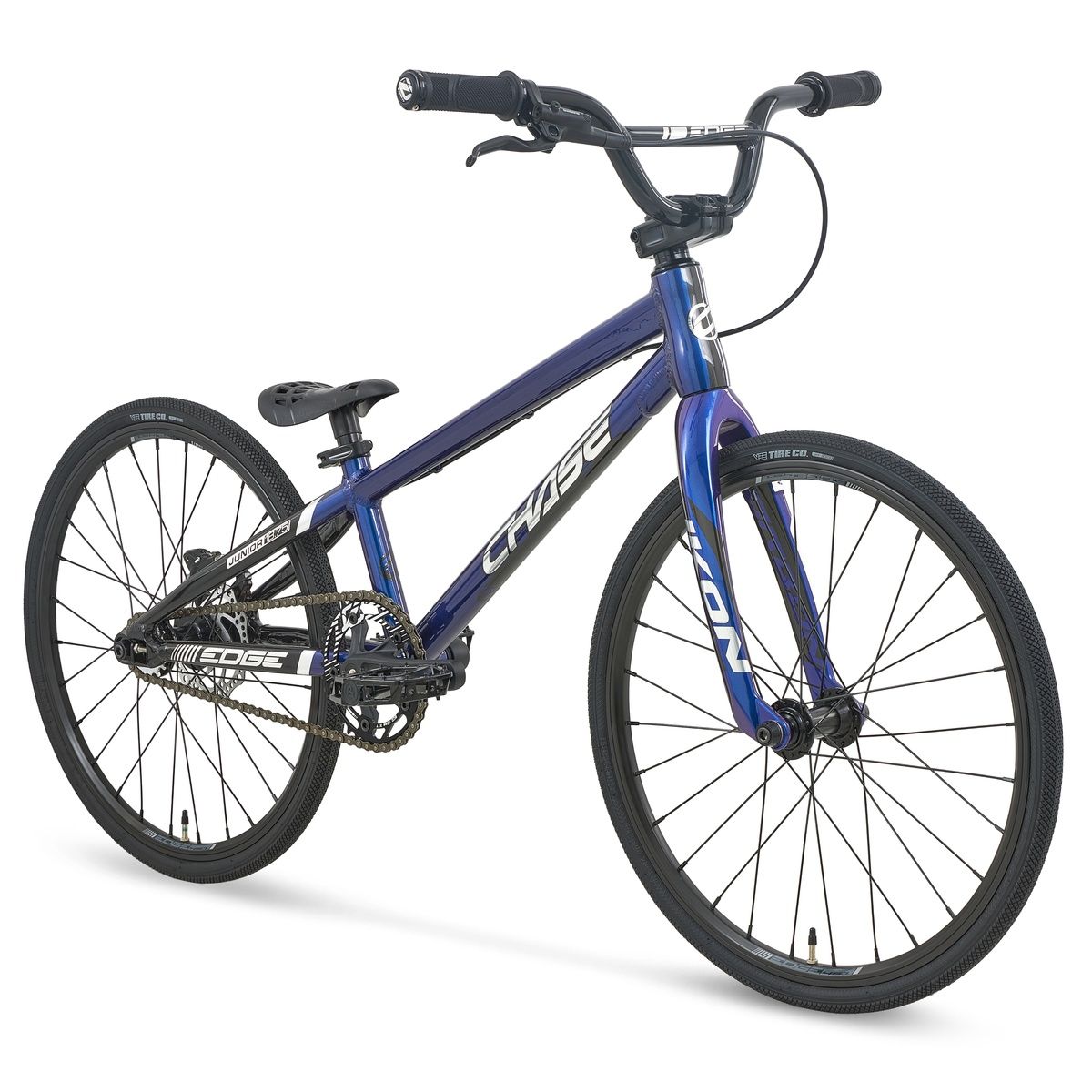

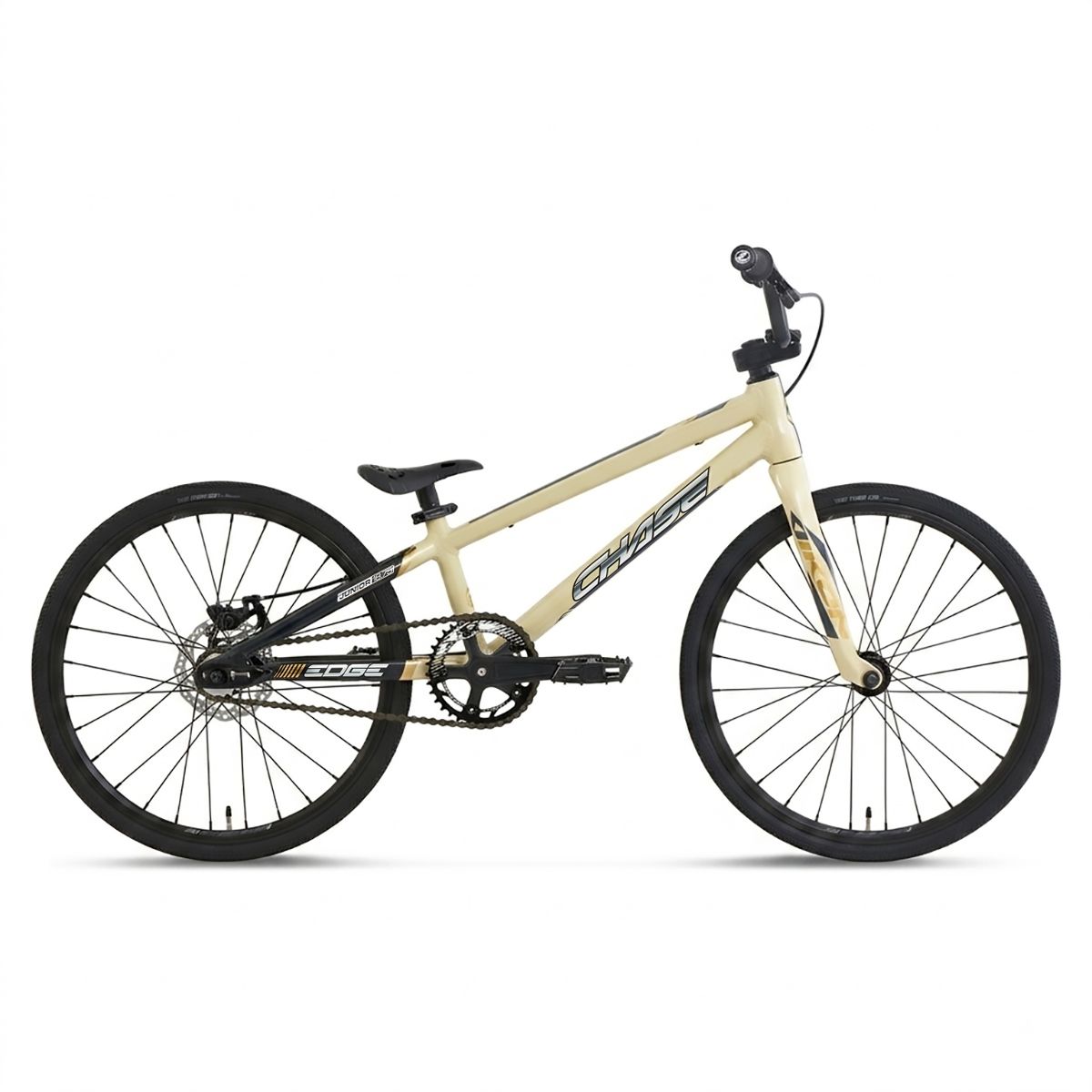

CHASE EDGE JUNIOR

The all-new CHASE Edge is a race-ready BMX bike, ideal for riders looking to get serious and take their riding to the next level.
Already considered a refined machine, the new Edge has been further improved: it now features Shimano hydraulic disc brakes (on Junior sizes and up; mechanical for Micro and Mini), all-new 2-piece aluminum Chase cranksets with a 24mm spindle (Expert XL and up), optimized gear ratios and crank arm lengths, a two-tone paint job with fresh graphics, and enclosed dropouts with an integrated chain tensioning system. The Edge frame is constructed from triple-butted, hydroformed 6061 aluminum tubing and features an integrated head tube. Other highlights include a 4130 chromoly steel fork and handlebar (on the Micro model), Ikon Carbon fork options on two colorways, double-wall rims, a cassette rear hub with a triple-pawl engagement system, and Vee Rubber Speedster tires. The combination of these components arguably makes the CHASE Edge one of the highest-performing race BMX bikes on the market today.

• FRAME: Chase Edge Junior 18.75" NEW Top Tube With Closed Drop Out, Integrated Chain tensioner system
• FORK: Ikon Mini/Junior Full Carbon, 1" Steer Tube
• STEM: Chase Edge 40mm Alloy
• HANDLEBAR: Chase Edge 4.25″ Alloy
• HEADSET: Integrated Sealed Bearing
• CHAINRING: Insight 37T 5 Bolts BCD 110mm
• CRANKSET: Chase Edge Alloy 145mm, 113mm squared axle BB
• HUBS: 28H, Sealed Bearing, 3/8" Bolts Front, ISO 28H, Sealed Bearing, 3/8" Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets Rear, 16T cog
• RIMS: Chase Edge Alloy 451 Double Wall 24H 20"x1-1/8" Presta Valve Front and Rear
• TIRES: Vee Rubber SpeedSter 20"x1-1/8" Wire Bead Front and Rear

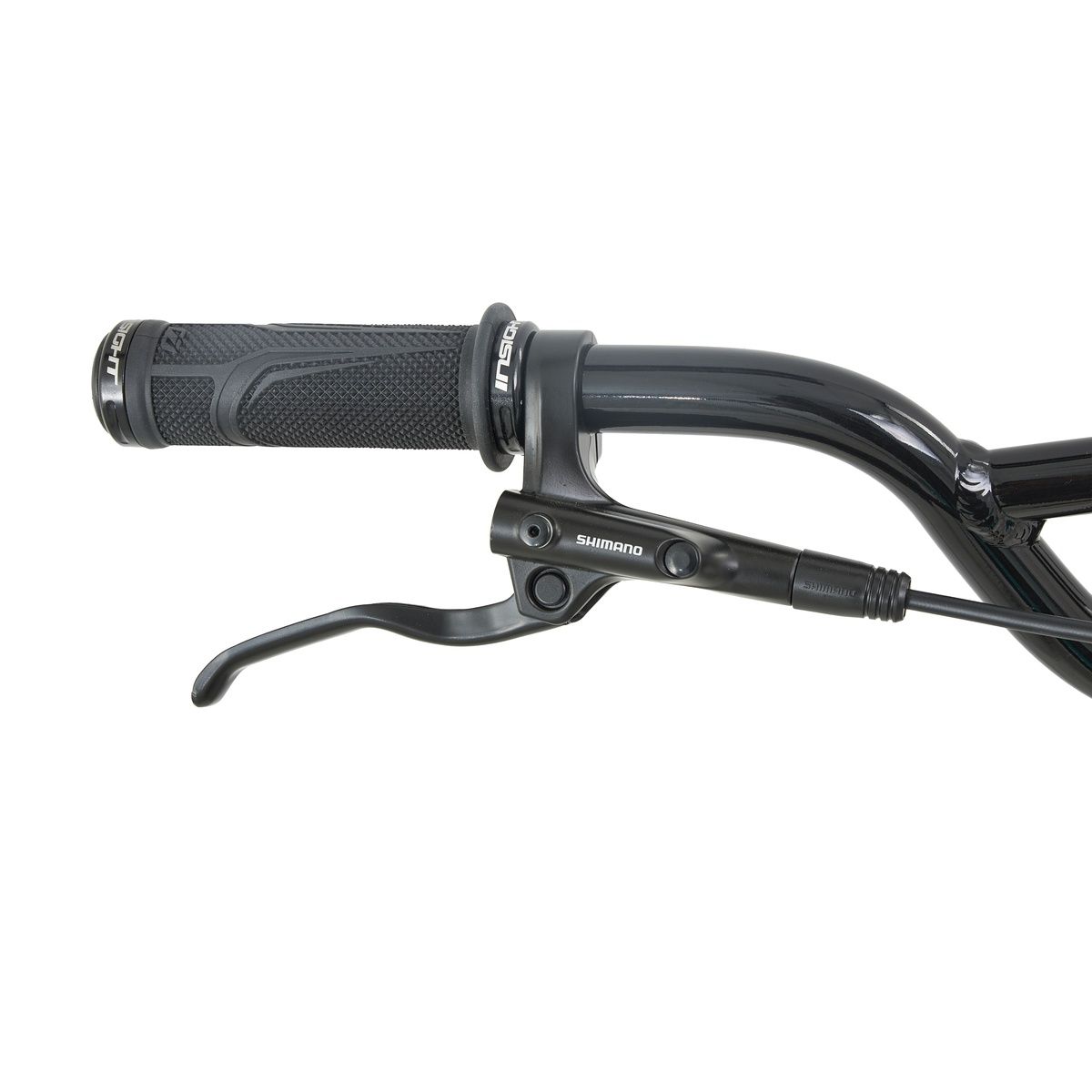

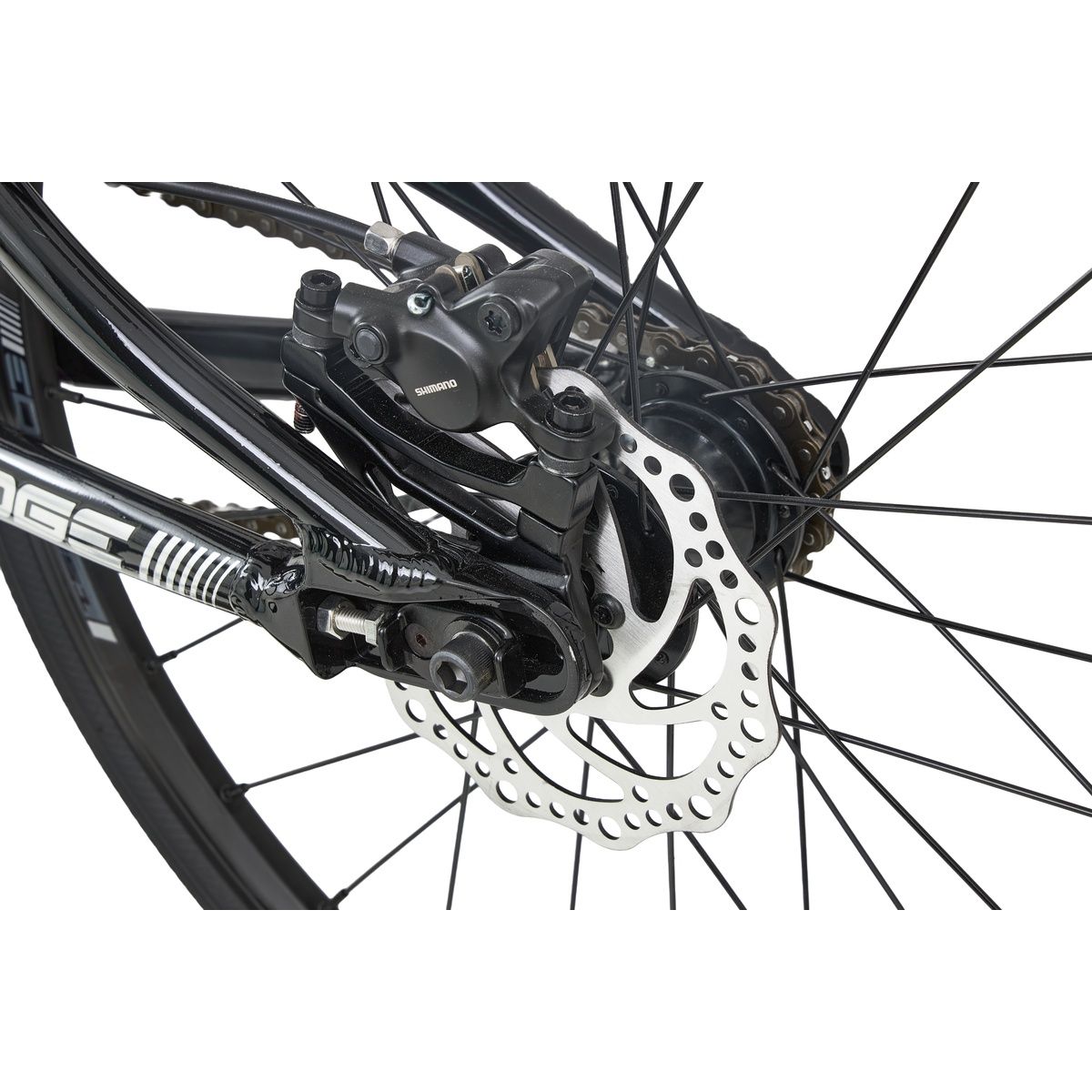

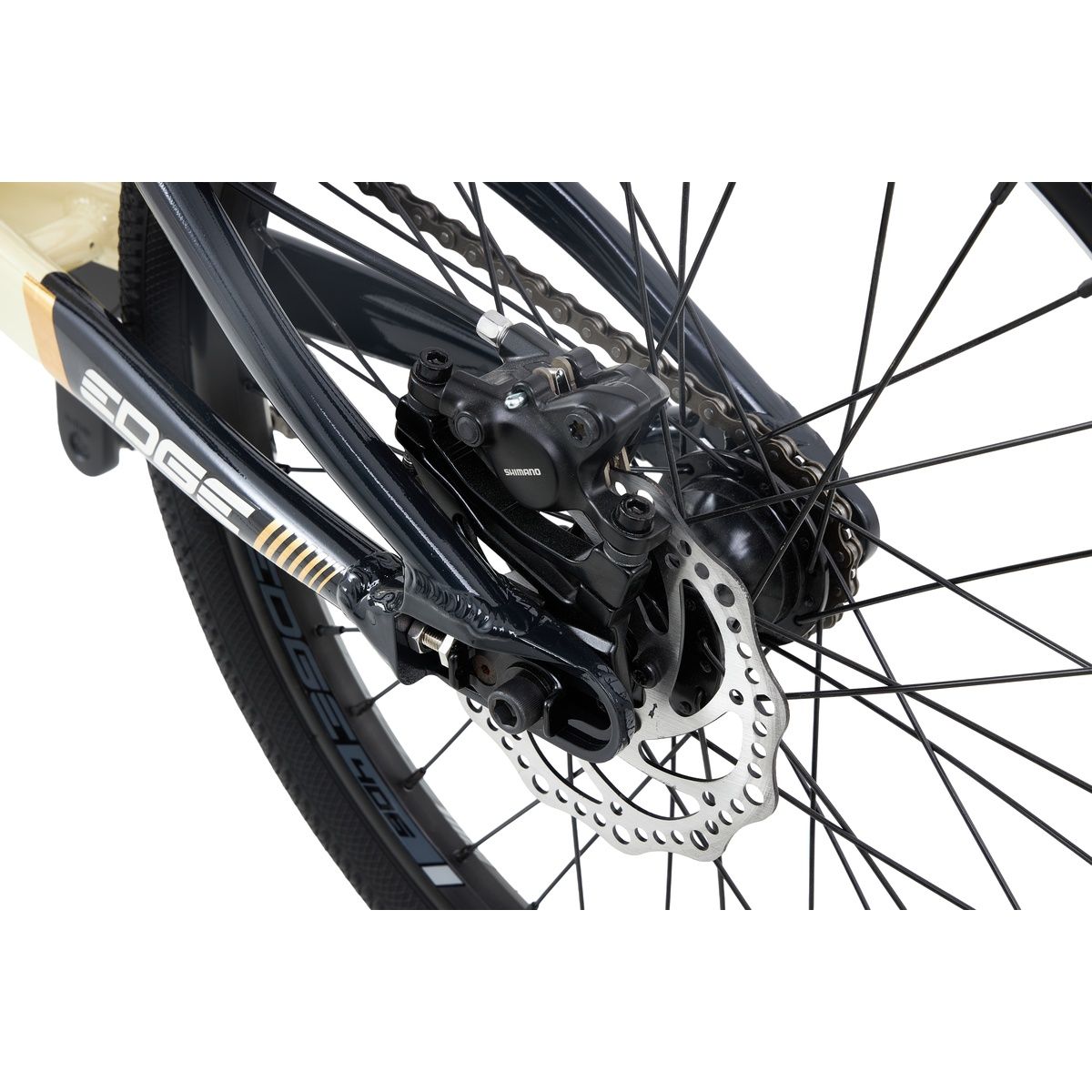

• BRAKES: Shimano Hydraulic BL-MT200(R) / BR-MT200(R) ISO 140mm

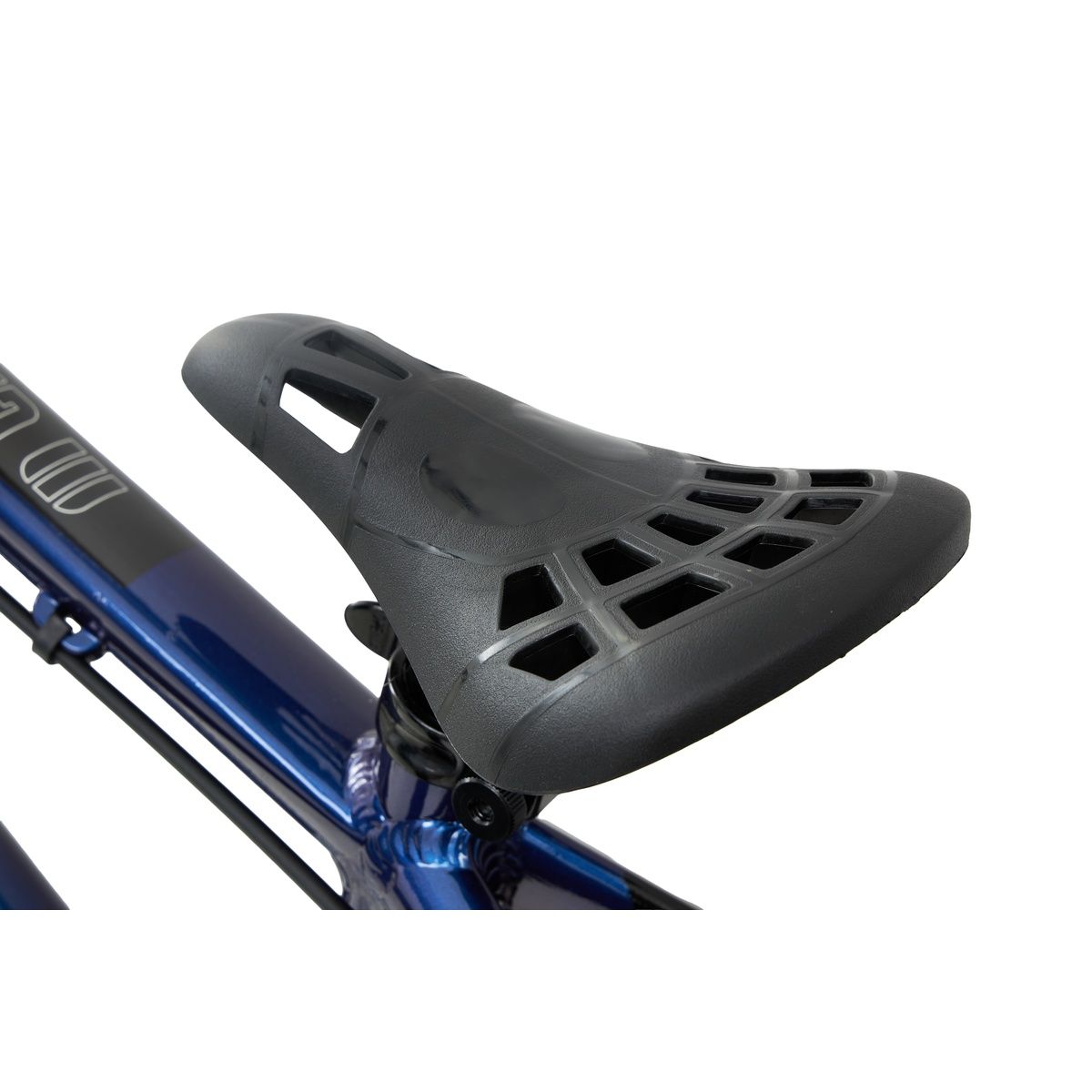

• SEAT: Mini Combo Alloy Post/Nylon Seat

RECOMMENDED SIZE: 1m22 – 1m35
WEIGHT: 7.95Kg without pedal
