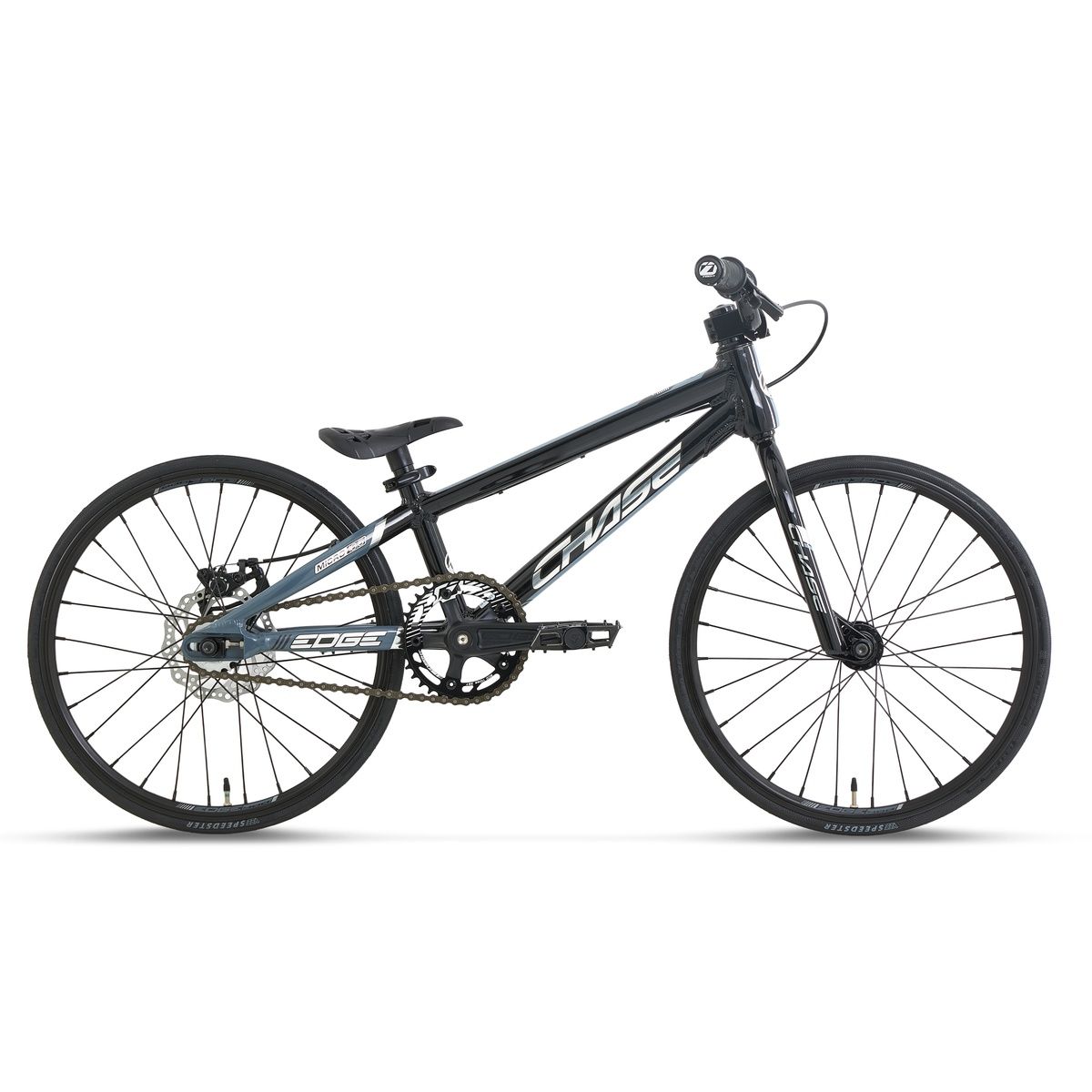

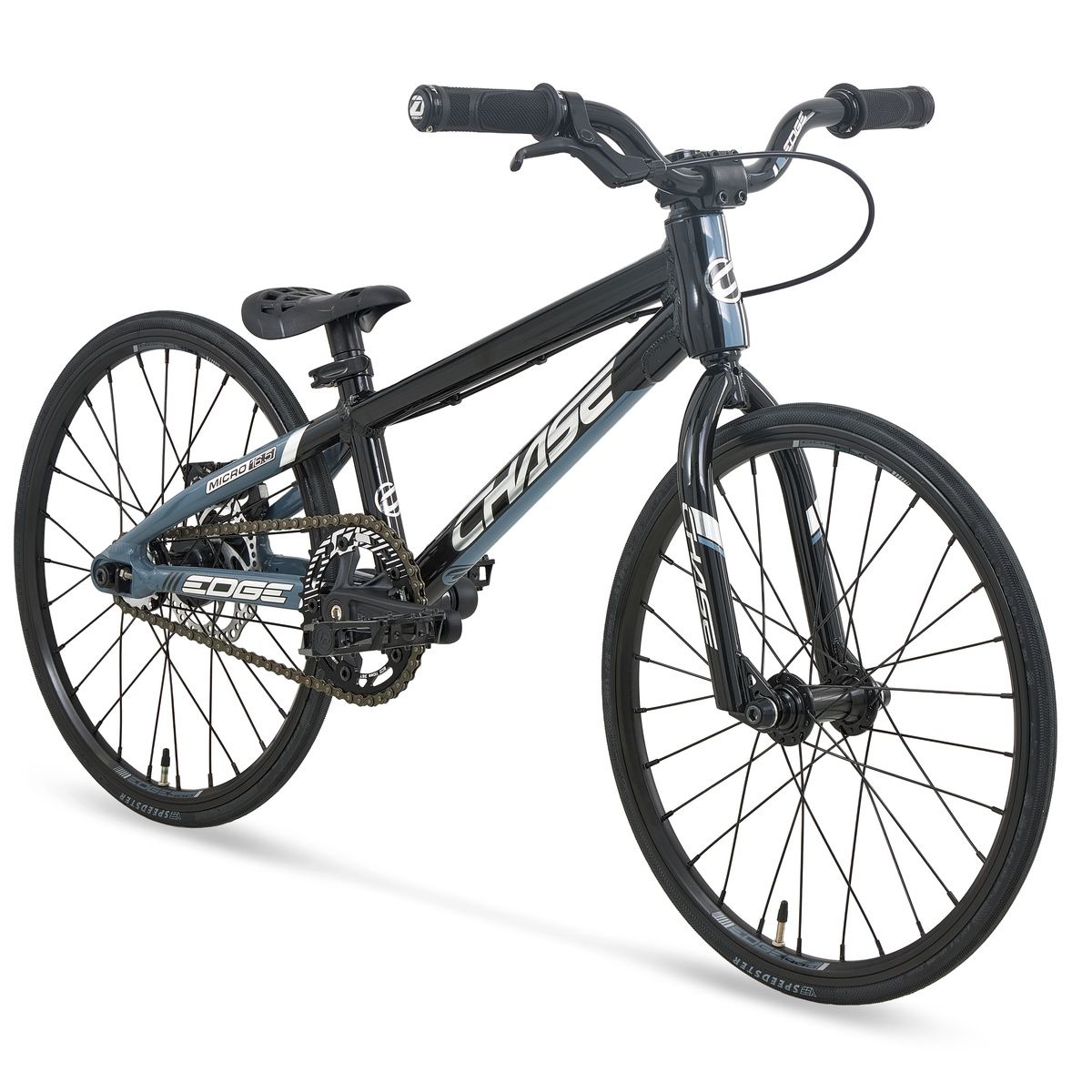

CHASE EDGE MICRO

The all-new CHASE Edge is a race-ready BMX bike, ideal for riders looking to get serious and take their riding to the next level.
Already considered a refined machine, the new Edge has been further improved: it now features Shimano hydraulic disc brakes (on Junior sizes and up; mechanical for Micro and Mini), all-new 2-piece aluminum Chase cranksets with a 24mm spindle (Expert XL and up), optimized gear ratios and crank arm lengths, a two-tone paint job with fresh graphics, and enclosed dropouts with an integrated chain tensioning system. The Edge frame is constructed from triple-butted, hydroformed 6061 aluminum tubing and features an integrated head tube. Other highlights include a 4130 chromoly steel fork and handlebar (on the Micro model), Ikon Carbon fork options on two colorways, double-wall rims, a cassette rear hub with a triple-pawl engagement system, and Vee Rubber Speedster tires. The combination of these components arguably makes the CHASE Edge one of the highest-performing race BMX bikes on the market today.

• FRAME: Chase Edge Micro 16.25" NEW Top Tube 6061 T6 Alloy, Closed Drop Out
• FORK: Chase Edge Full Cr-mo, 1" Steer Tube With Tapered Blades
• STEM: Chase Edge 1" Steer Tube 40mm, 6061 T6 Alloy
• HANDLEBAR: Chase Edge Alloy 2.25" Rise
• HEADSET: Integrated IS 42/42 Reductor 1", Sealed Bearing
• CHAINRING: Insight 36T 5 Bolt 110mm 1/2"x3/32" 3mm Alloy
• CRANKSET: Chase Edge 3 Piece Crank 130mm Alloy
• HUBS: 28H, Sealed Bearing, 3/8" Bolts Front, ISO 28H, Sealed Bearing, 3/8" Bolts, 3 Pawls Triple Angle Engagement 24T Ratchets Rear
• RIMS: Double Wall 28H 20"x1"
• TIRES: VEE RUBBER Speedster 18″x1″ Front and Rear
• BRAKES: ISO 140mm Mechamical System

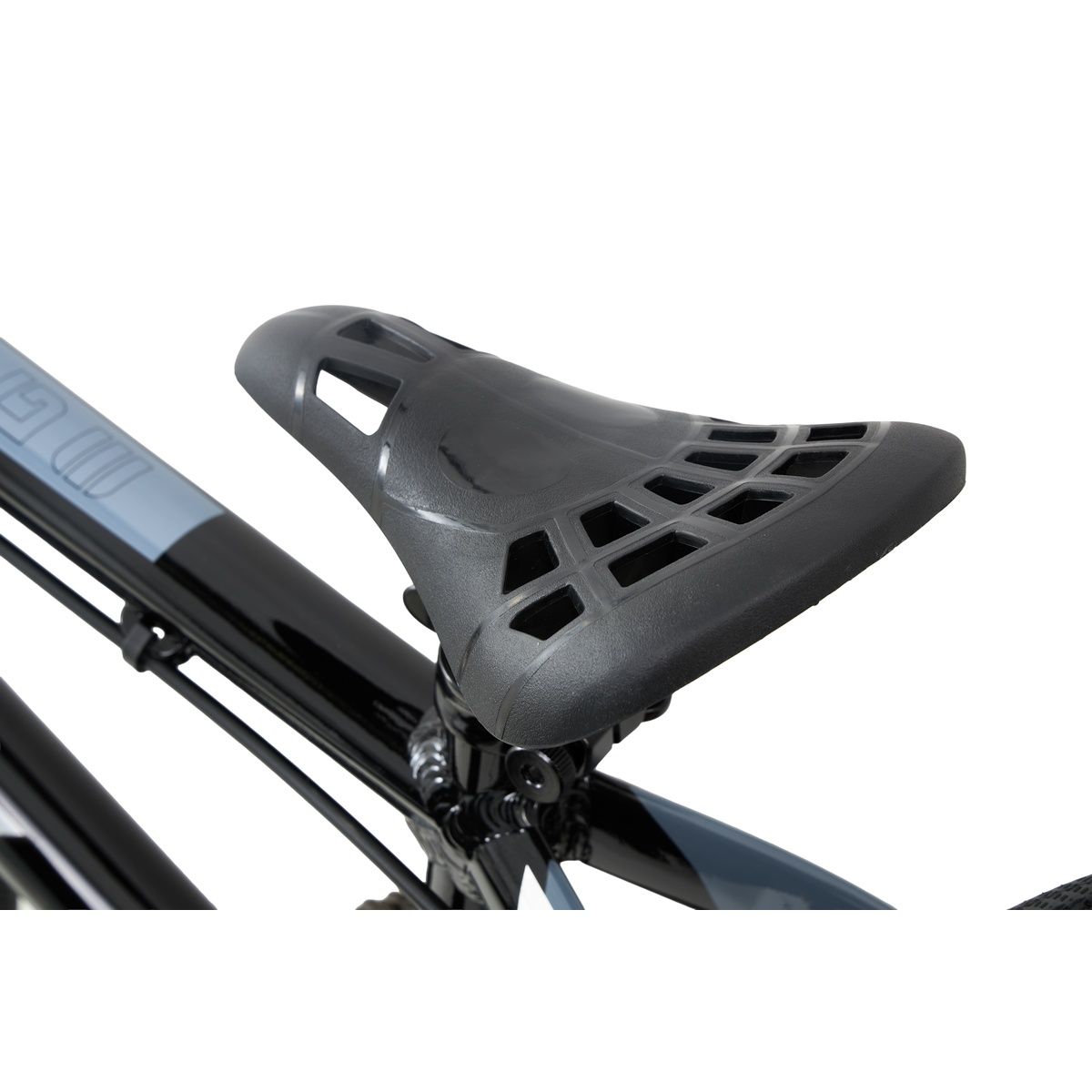

• SEAT: Mini Combo Alloy Post/Nylon Seat

RECOMMENDED SIZE: 1m00 – 1m15
WEIGHT: 6.99Kg without pedal

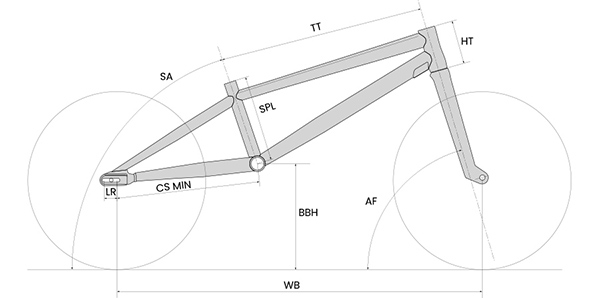

SIZE GUIDE
