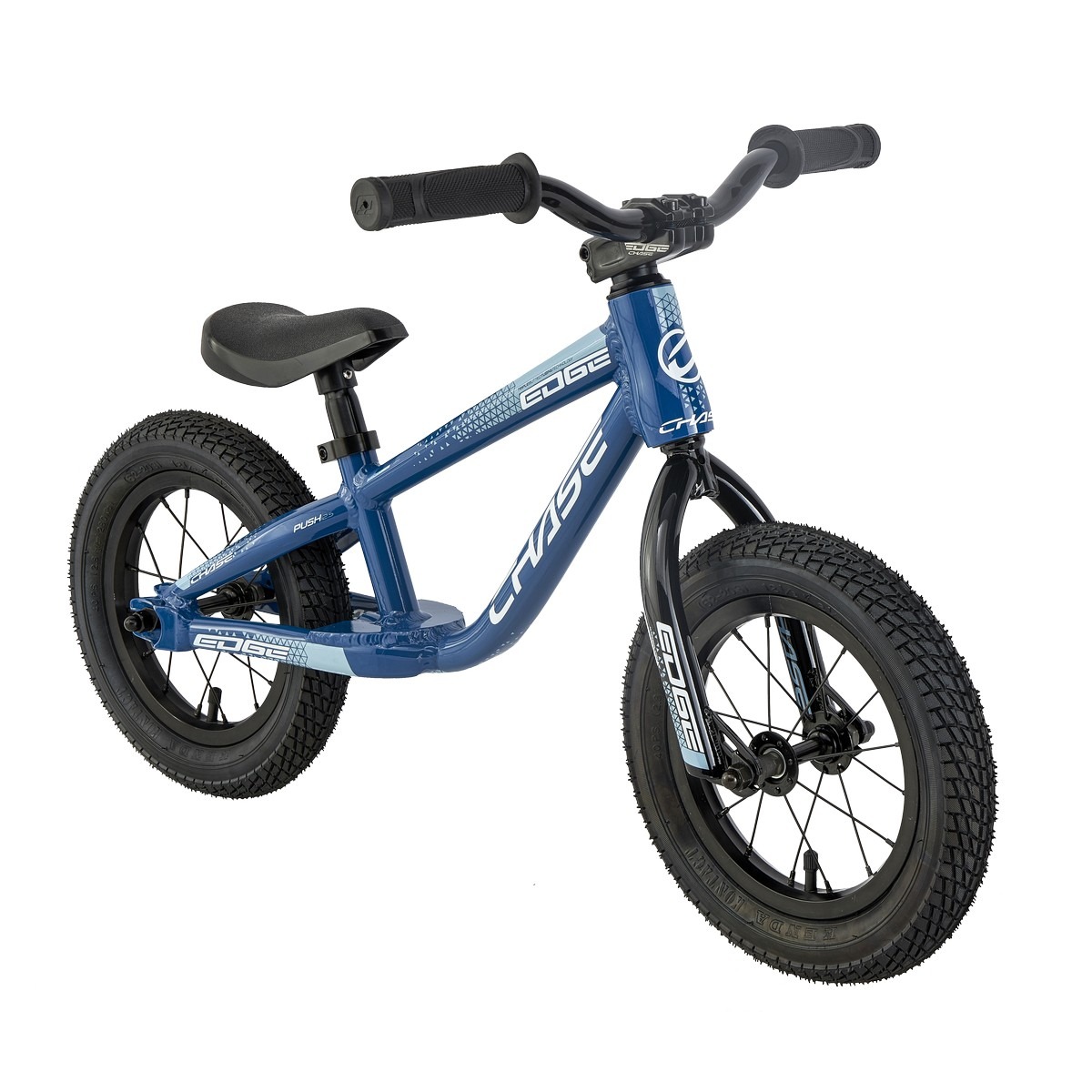

Based on the CHASE Edge, the CHASE Edge balance bike is ideal for developing control and balance before switching to a real BMX bike.

FEATURES :
• Aluminum 6061-T6 Triple butted frame
• Integrated headtube
• Chromoly fork and handlebar
• CHASE double wall rims
• KENDA Kontact tires

RECOMMENDED SIZE: less than 1m00
WEIGHT: 4.5 Kg

SIZES CHART

More details



SALE !-25%

179,99 € Tax incl.

Recommended retail price : 239,99 € TTC

Availability :

Buy in local shop

Reference Bar Code Colors Unit price Avail. Quantity
CHACOBI160 711484476860 Teal
179,99 €
239,99 €
CHACOBI161 711484476877 Dark Blue
179,99 €
239,99 €

SPECIFICATIONS :

FRAME CHASE Edge Balance 12.5’’ Top Tube, 6061 T6 Alloy Triple butted Hydroformed, Integrated Head Tube
FORK
 CHASE Edge Balance Full Cr-mo, 1" Steer Tube With Tapered Bladess
HEADSET
 Integrated 1’’, Sealed Bearing
HANDLEBAR
 CHASE Edge Cr-mo, 1.18" Rise, 18.1" Width, 6° Back Sweep, 0° Up Sweep
GRIPS
 INSIGHT C.O.G.S 115mm Lock on
STEM
 CHASE Edge 40mm Alloy 6061 T6
HUBS
 Mini, 16H, 10mm axle, Double Contact Seals Bearings
SPOKES
 14 Gauge
NIPPLES
 Steel
RIMS
 CHASE Edge 012 single wall 16H 12″x1.75″ Schrader Valve
TIRES
 KENDA kontact 12’’x2.25’’
TUBES
 12''x1.5"-1.75" Schrader Valve
SADDLE
 CHASE Mini combo
SEAT POST
 CHASE Edge Mini Combo 25.4x150mm
SEAT CLAMP
 CHASE Edge QR Alloy 28.6mm


GEOMETRIES :



SIZES TT CS min LR HA SA HT SPL BBH Wheels
Balance 12.5"
311.15 mm		 8.5"
207 mm		 1.8"
46 mm		 70° 71° 3.35"
85 mm		 5.6"
142 mm		 6.6"
167.6 mm		 12x2.25"
Micro 16.25"
412.75 mm		 10.85"
275.6 mm		 1.8"
46 mm		 71° 69° 4"
100 mm		 8"
203.5 mm		 10.25"
254 mm		 18x1"
Mini 17.25"
438.15 mm		 12.25"
312 mm		 1.8"
46 mm		 72° 70° 4.33"
110 mm		 8.8"
225 mm		 10.6"
269.2 mm		 20x1-1/8"
Junior 18.75"
476.25 mm		 12.5"
317.5 mm		 1.8"
46 mm		 73° 72° 4.33"
110 mm		 8.8"
225 mm		 10.6"
269.2 mm		 20x1-1/8"
Expert 19.75"
501.65 mm		 13"
330.2 mm		 1.8"
46 mm		 73° 72° 4.33"
110 mm		 8.8"
225 mm		 11"
279.4 mm		 20x1-3/8"
Expert XL 20"
508 mm		 13.5"
353 mm		 1.8"
46 mm		 73° 72° 4.7"
120 mm		 8.8"
225 mm		 11.5"
292.1 mm		 20x1.50"
Pro 20.5"
520.7 mm		 14"
355.6 mm		 1.8"
46 mm		 74° 72° 4.7"
120 mm		 9.4"
238 mm		 11"
279.4 mm		 20x1.75"
Pro XL 21"
533.4 mm		 14.15"
359.4 mm		 1.8"
46 mm		 74° 72° 4.7"
120 mm		 9.3"
238 mm		 11.5"
292.1 mm		 20x1.75"
Pro XXL 21.5"
546.1 mm		 14.15"
359.4 mm		 1.8"
46 mm		 74° 72° 4.7"
120 mm		 9.3"
238 mm		 11.5"
292.1 mm		 20x1.75"
Cruiser 21.5"
546.1 mm		 14.5"
368.3 mm		 1.8"
46 mm		 74° 71° 4.7"
120 mm		 10.6"
270 mm		 12"
304.8 mm		 24x1.75"


Complete Bike specs are subject to change throughout the 2023 model year due to parts upgrades or parts shortages and changes that are made out through our production cycle to improve the quality of the complete bikes. Photo & listed Specs may slightly differer due to this.
