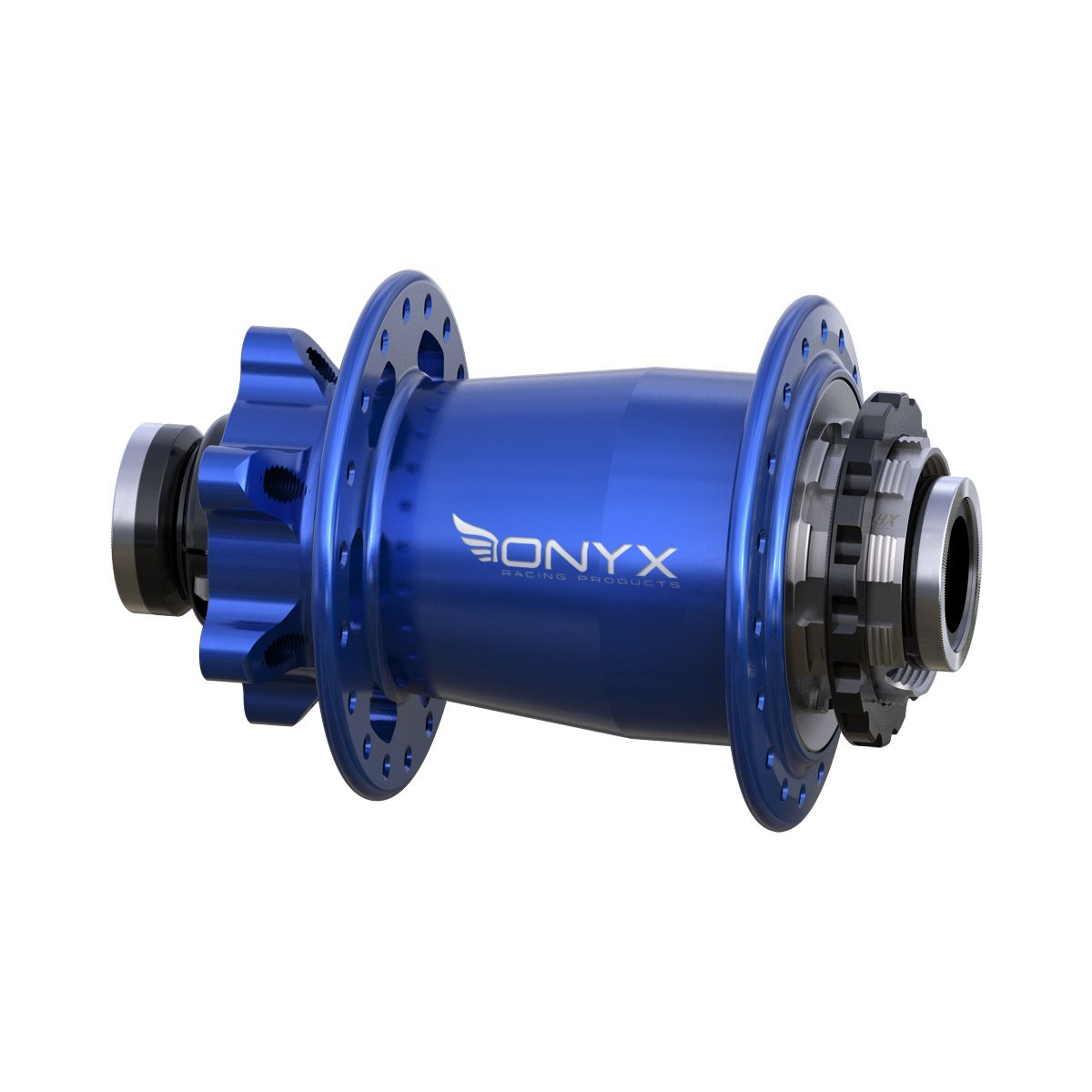

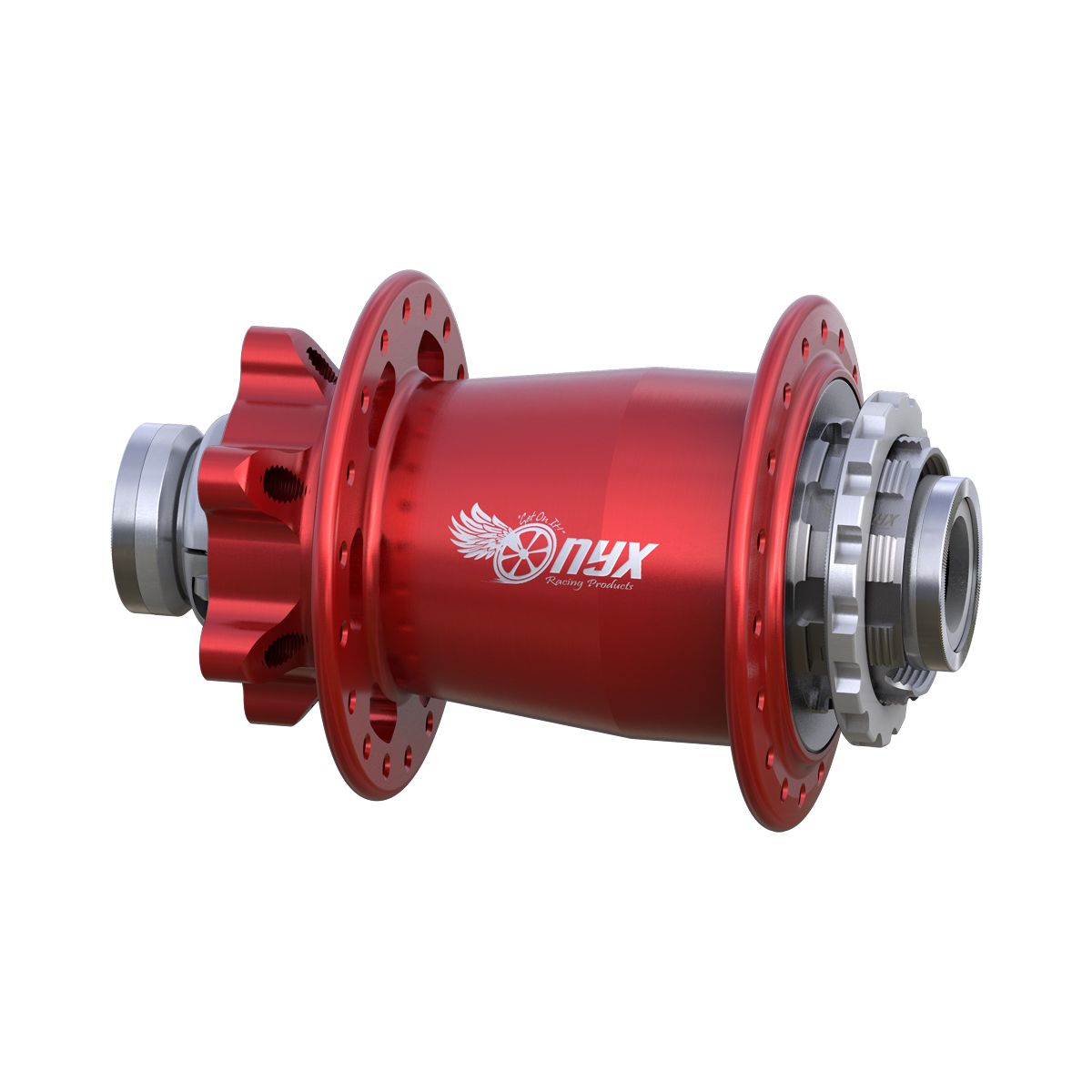

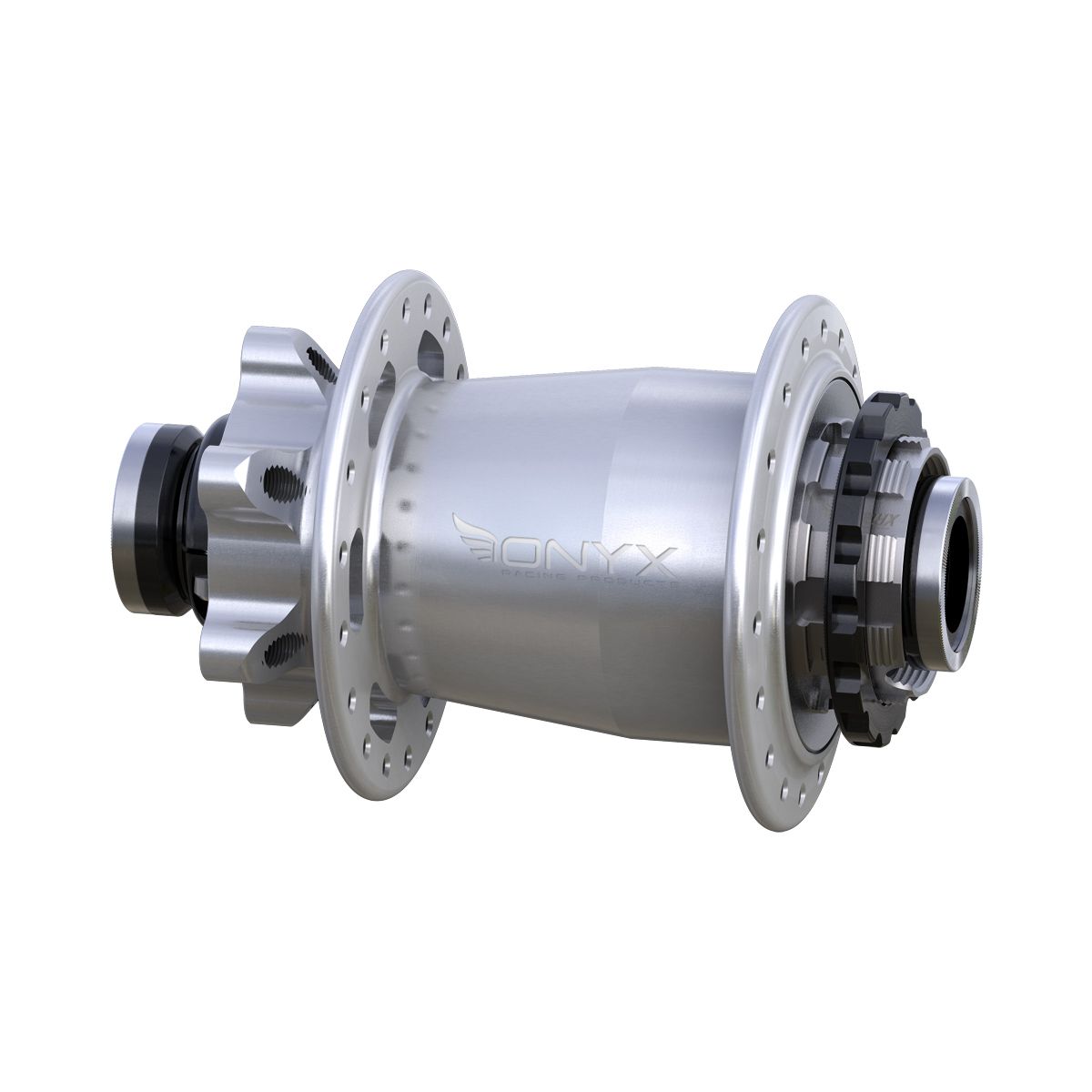

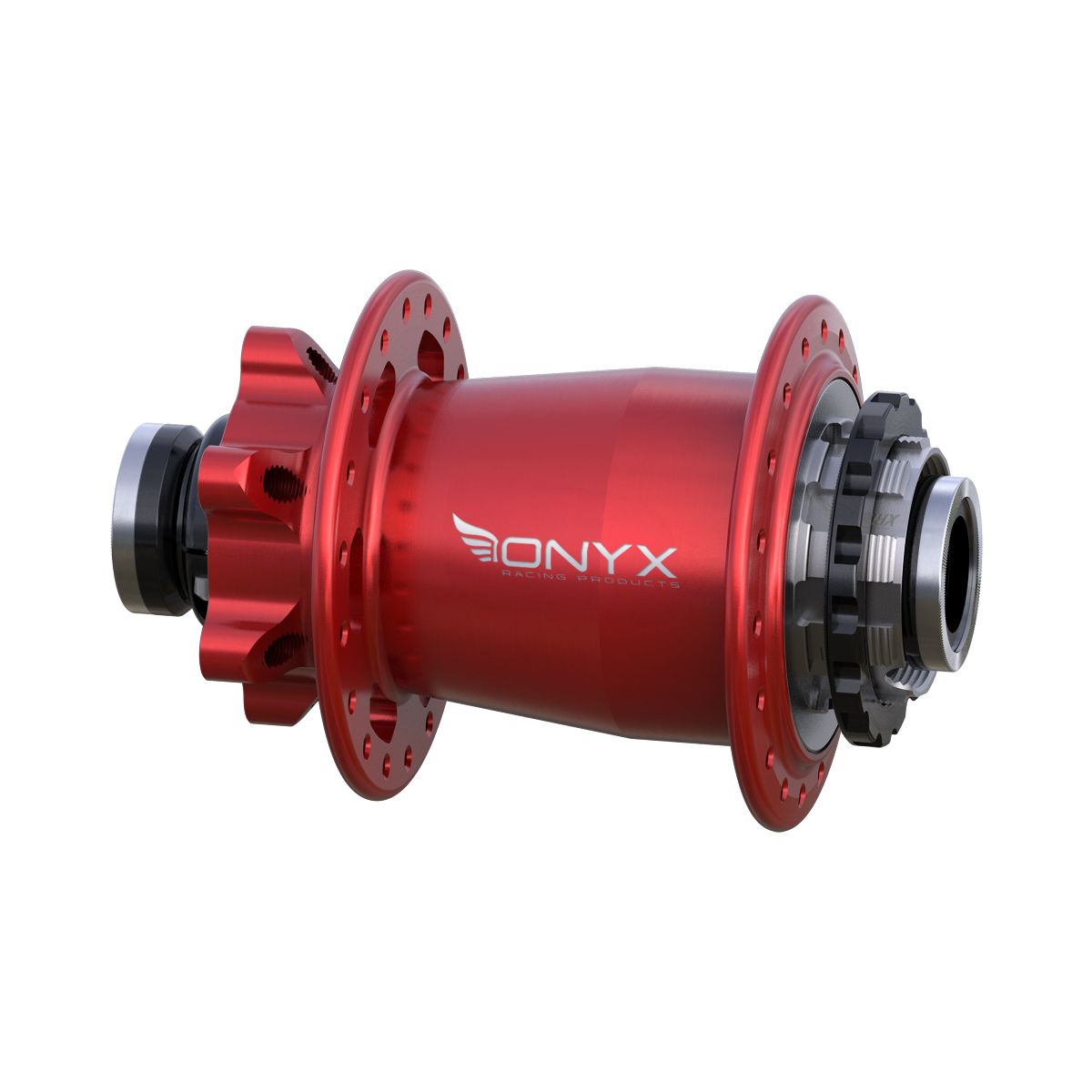

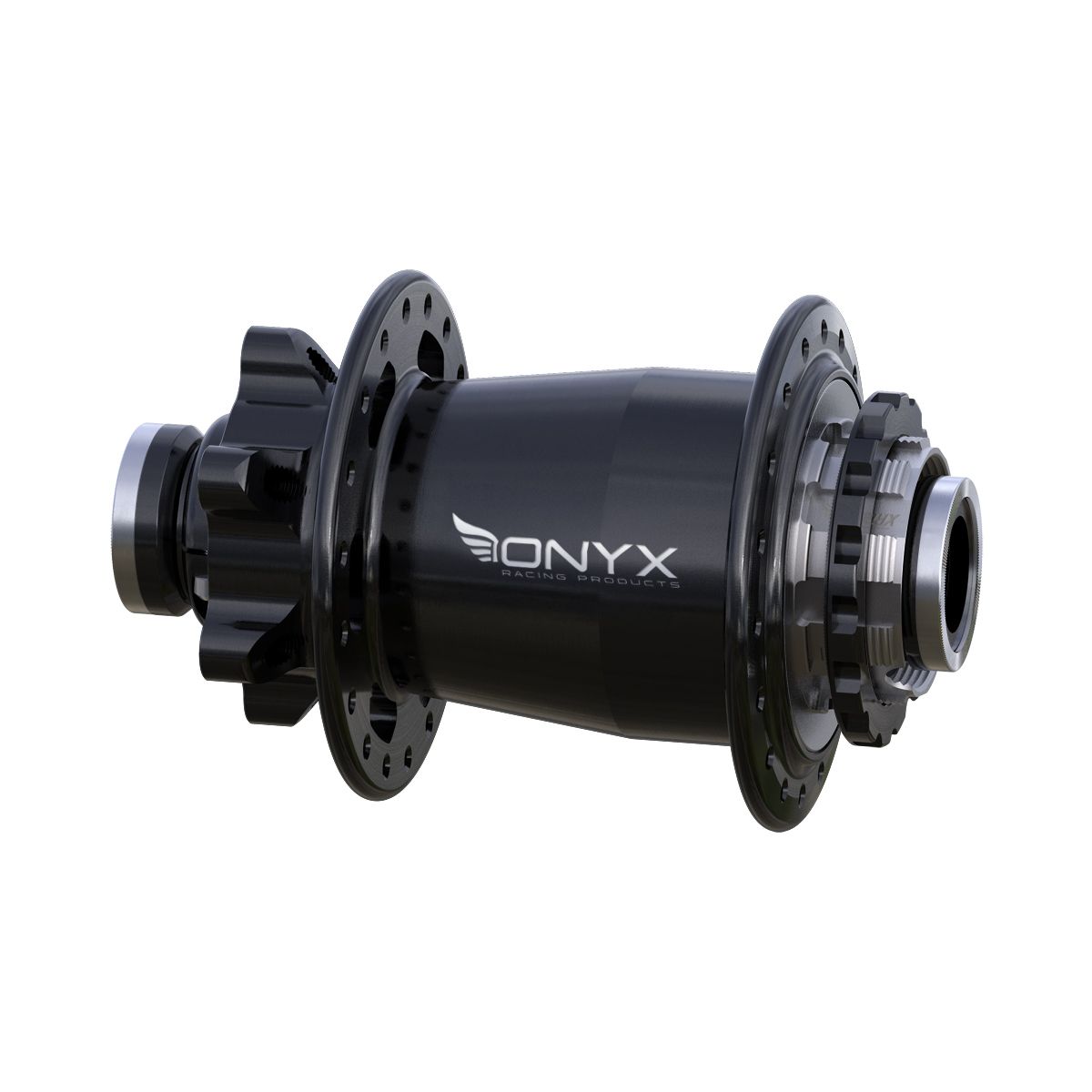

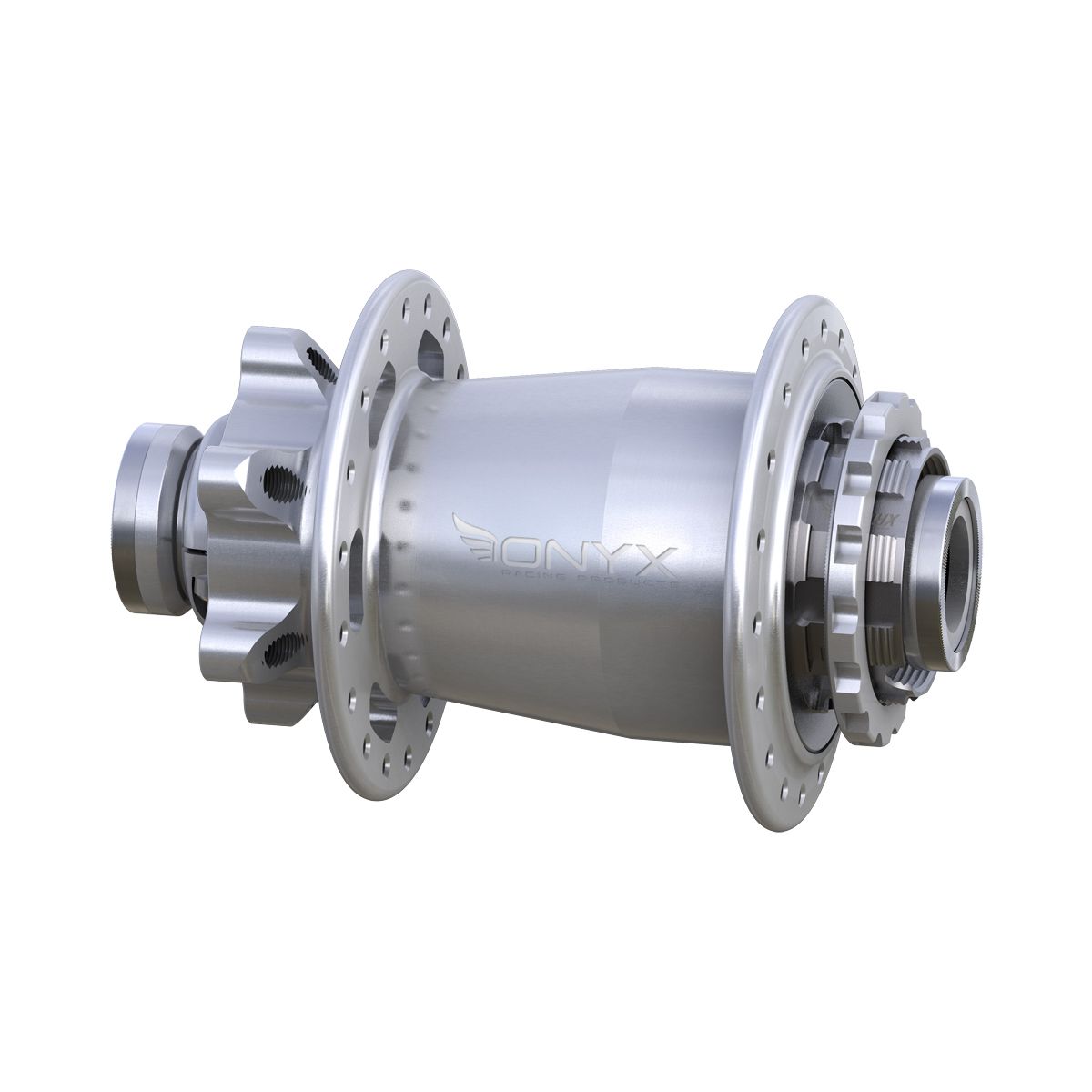

ONYX ultra ISO 15mm Rear hub 36H
ONYX ultra ISO 15mm Rear hub 36H
ONYX ultra ISO 15mm Rear hub 36H ONYX ultra ISO 15mm Rear hub 36H ONYX ultra ISO 15mm Rear hub 36H ONYX ultra ISO 15mm Rear hub 36H

ONYX ultra ISO 15mm Rear hub 36H

Machined from high-end aluminum, the ONYX Ultra rear hub offers BMX riders the famous quality of ONYX products made in the USA. It is equipped with the ONYX instant engagement system offering you direct engagement without any friction when pedaling. It is mounted on hybrid-ceramic bearings which have a very low coefficient of friction and excellent power transfer. It is also equipped with a 6 screw ISO type disc holder for pilots who wish to switch to disc braking. It is intended for riders using a frame that offers the option of mounting a 15mm diameter axle at the rear.

FEATURES :
• CNC machined 7075-T6 aluminum body
• Sealed hybrid-ceramic bearings
• ISO disc rotor bracket
• Aluminum freehub body - Shimano standard
• ONYX Instant engagement
• Aluminum axle body
• Axle diameter: 15mm thru
• Width: 110mm
• Drilling: 36 holes
• Weight: 420g

Cog and axle sold separately

NOTE: color shade may vary slightly depending on production run

ONYX hubs require regular maintenance to maintain full operation
ONYX Maintenance Videos

ONYX WARRANTY

More details



Availability :

629,00 € Tax incl.

Recommended retail price : 629,00 € TTC

Reference Bar Code Colors Unit price Availability Quantity Buy
ONYHUBS325 151424423255 Black
629,00 €
ONYHUBS326 151424423262 Polished
629,00 €
ONYHUBS327 151424423279 Red
629,00 €
ONYHUBS328 151424423286 Blue
629,00 €



A - Hub Center To Flange Center, Non-Drive Side 20.15mm
B - Hub Center To Flange Center, Drive Side 33.22mm
C - Axle Width 110mm
Spoke Hole Circle Diameter, Drive Side 60mm
Spoke Hole Circle Diameter, Non-Drive Side 60mm
Spoke Hole Counts 36
Spoke Tension 120kgf Max

Compatible with
