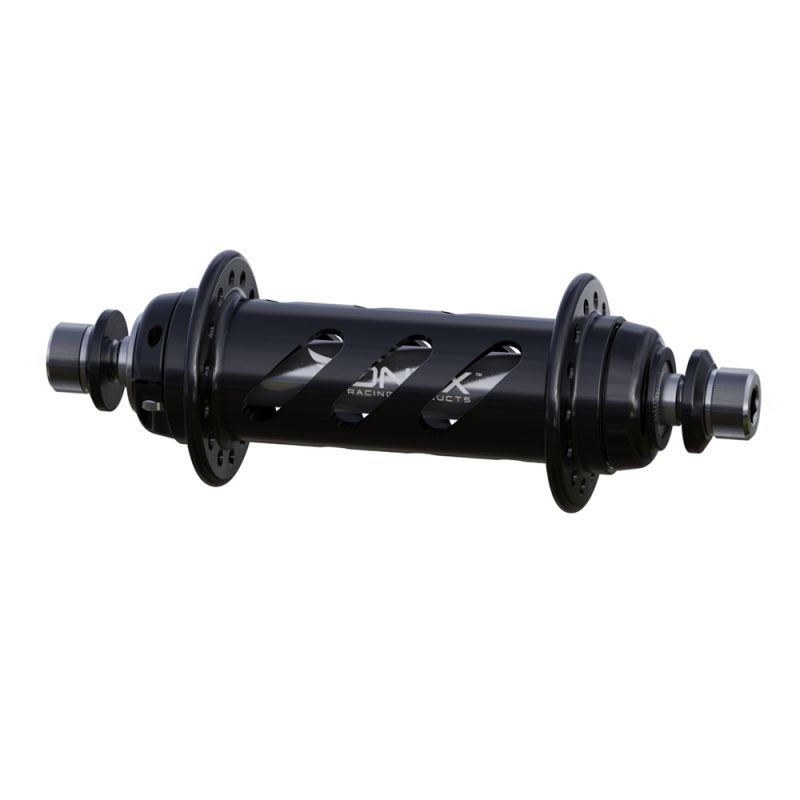

ONYX helix OHM Front hub 28H

The ONYX OHM Helix front hub offers BMX riders the famous quality of ONYX products but at a more affordable price. Machined from high-end aluminum, it is equipped with standard bearings which have a very low coefficient of friction and excellent power transfer.

• CNC machined and perforated 7075-T6 aluminum body
• Sealed standard bearings
• Aluminum axle body
• BTR steel 8mm screw tightening
• Axle diameter: 10mm
• Width: 100mm
• Drilling: 28 holes
• Weight: 144g

Recommended rider weight: <54Kg

ONYX hubs require regular maintenance to maintain full operation
ONYX Maintenance Videos


More details

169,00 € Tax incl.

Recommended retail price : 169,00 € TTC

Availability :

Reference Bar Code Colors Unit price Avail. Quantity
ONYHUBS320 151424423200 Black
169,00 €


A - Hub Center To Flange Center, Non-Drive Side 33.84mm
B - Hub Center To Flange Center, Drive Side 33.84mm
C - Axle Width 100mm
Spoke Hole Circle Diameter, Drive Side 33.81mm
Spoke Hole Circle Diameter, Non-Drive Side 33.81mm
Spoke Hole Counts 28
Spoke Tension 120kgf Max



Wheel types Front
Axle Diameters 10mm
Spokes 28
