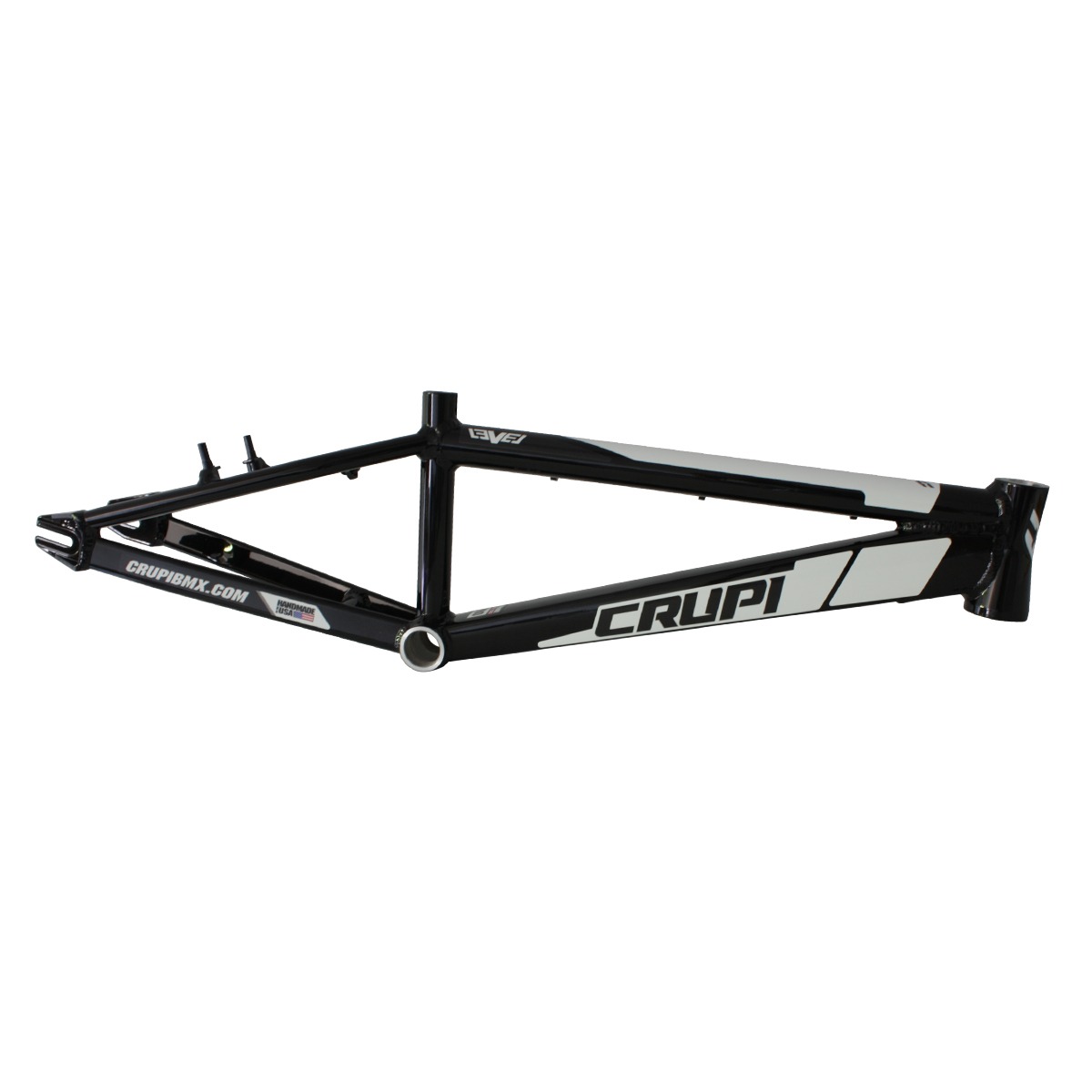

CRUPI Level Frame Black/white
The CRUPI Level frame is an evolution of the Catalina, it now features a tapered head tube and a slightly longer rear triangle to provide more cornering stability. Still as light and entirely made in the USA, it allows pilots of all levels to achieve the best performance in the race.
FEATURES :
• Aluminum 6061 T6 frame
• MADE IN USA
• Tapered headset 1-1/8 '' - 1.5 ''
• 5 specific cable runs
• Integrated CNC machined steering tube
• CNC machined dropouts
• Euro BSA 68x73mm bottom bracket
Here is the new CRUPI Level frame is an evolution of the previous model the Catalina, it now has a tapered head tube but also has a slightly longer rear triangle to offer more stability in turns and different welds to the tube saddle Always also Ultra light, it allows pilots of all levels to achieve the best performance in the race. This 100% made in the USA frame is constructed from high quality 6061- T6 butted aluminum with still a square section down tube for more rigidity These reinforced tubes maintain the strength and rigidity of the frames at the head tube and housing crankset while reducing weight Undeniable proven reliability!
GEOMETRIES :
| Sizes | TT | CS | HA | HS OD | SA | SP OD | BBH | Wheels | Weight |
| Pro | 20,5″ | 14″ | 74° | intégré conique IS 42/52 | 71° | 26,8 mm | 11,6″ | 20x1.50/1.75 | 1.40 Kg |
| Pro XL | 21,5″ | 15″ | 74° | intégré conique IS 42/52 | 71° | 26,8 mm | 11,6″ | 20x1.75 | 1.41 Kg |
| Pro XXL | 22″ | 15″ | 74° | intégré conique IS 42/52 | 71° | 26,8 mm | 11,6″ | 20x1.75 | 1.42 Kg |
| Pro XXXL | 23″ | 15″ | 74° | intégré conique IS 42/52 | 71° | 26,8 mm | 11,6″ | 20x1.75 | 1.43 Kg |
| Cruiser Pro | 21,25″ | 15″ | 74° | intégré conique IS 42/52 | 67° | 26,8 mm | 11,6″ | 24x1.75 | 1.41 Kg |
| Cruiser Pro XL | 22,75″ | 15″ | 74° | intégré conique IS 42/52 | 67° | 26,8 mm | 12″ | 24x1.75 | 1.42 Kg |
*Weight given by the manufacturer.
YOU MIGHT ALSO LIKE
-
-
-
ELEVN Pivotal seat post 26.8mm
15,60 € -
CRUPI Quad Wheelset 20"x1.75"
678,99 € -
CRUPI Seatpost clamp 31.8mm
24,50 €
FEATURES
| Materials | Aluminium |
| Headset Types | Tapered Integrated - IS |
| Bottom bracket Types | Euro |
| Braking types | V-Brake |
