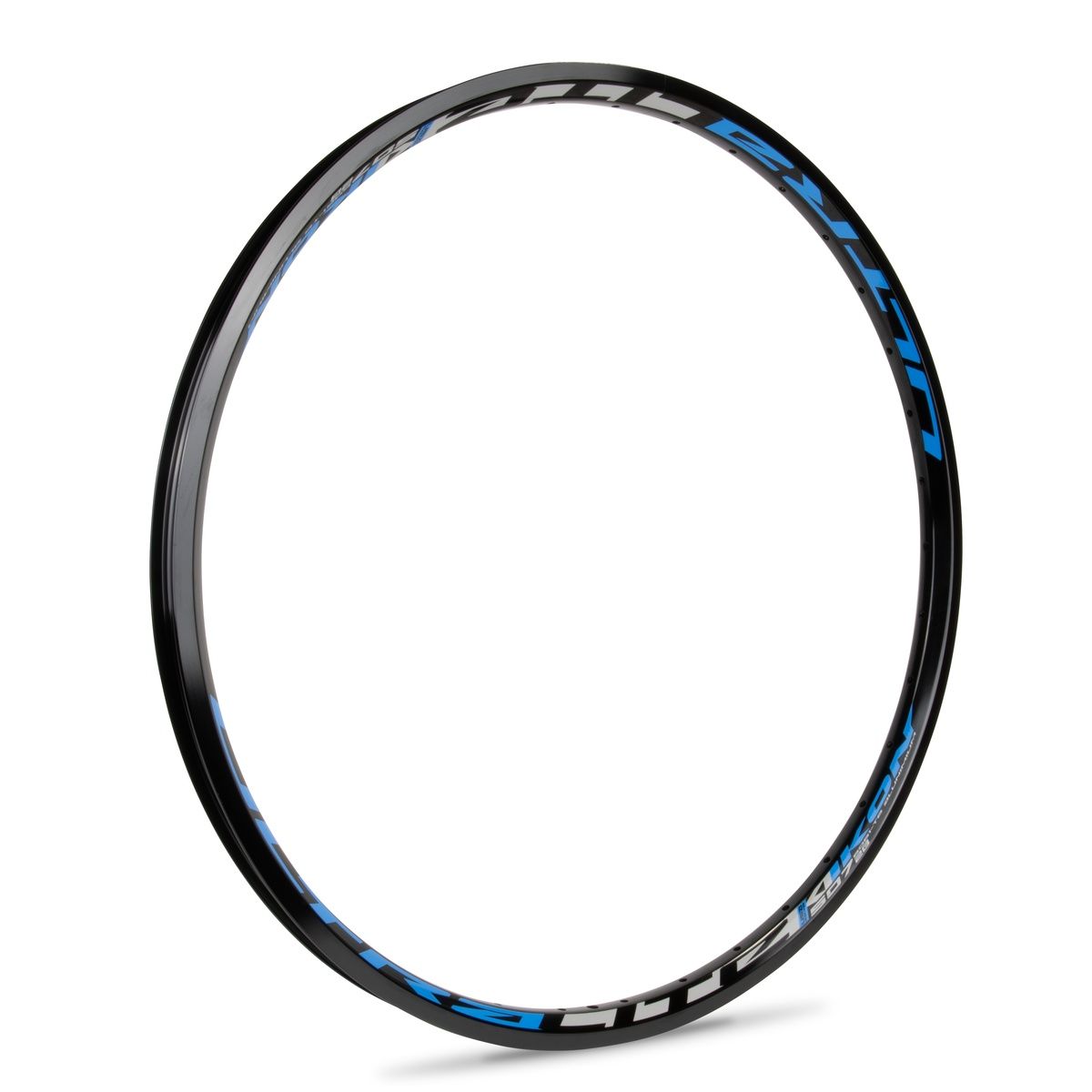

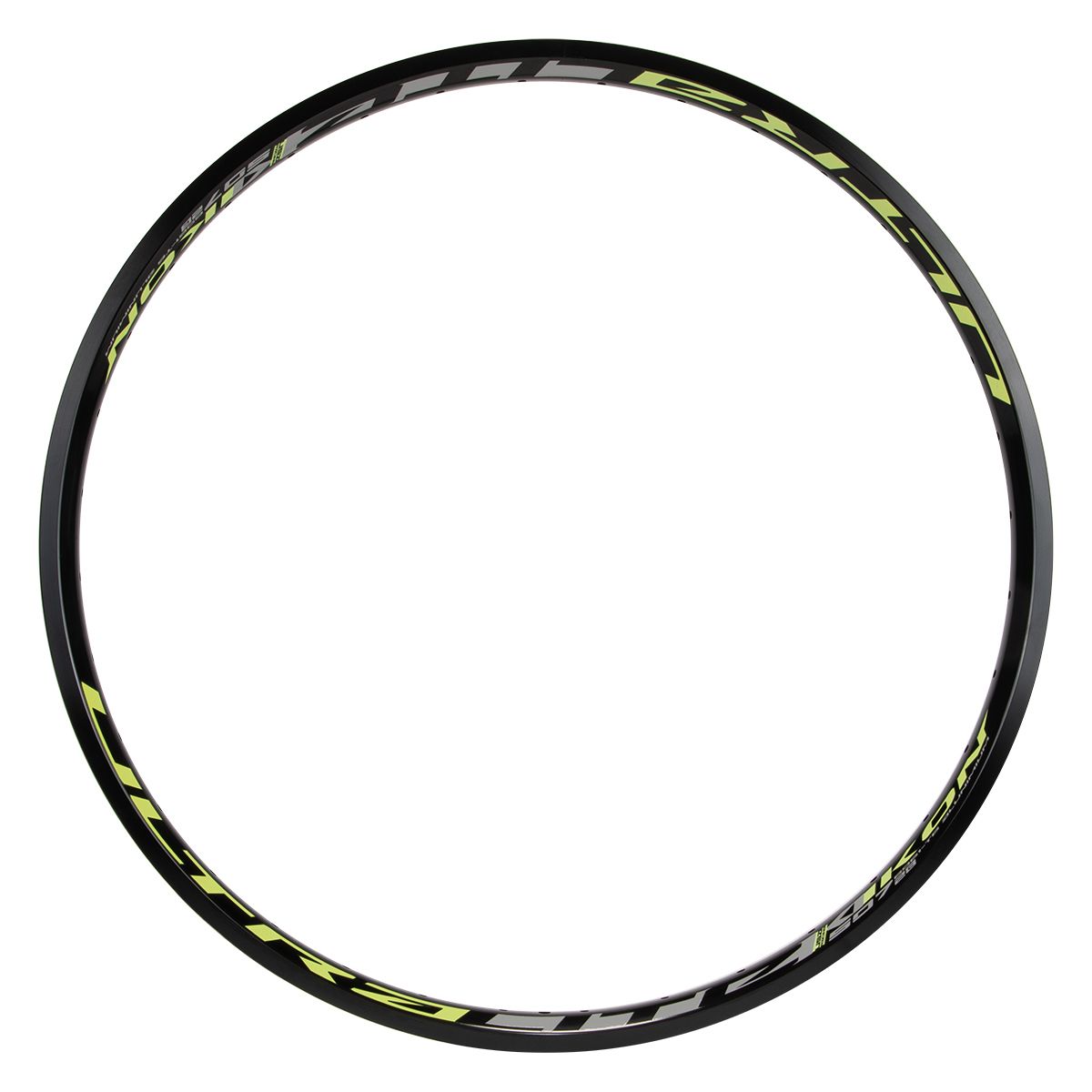

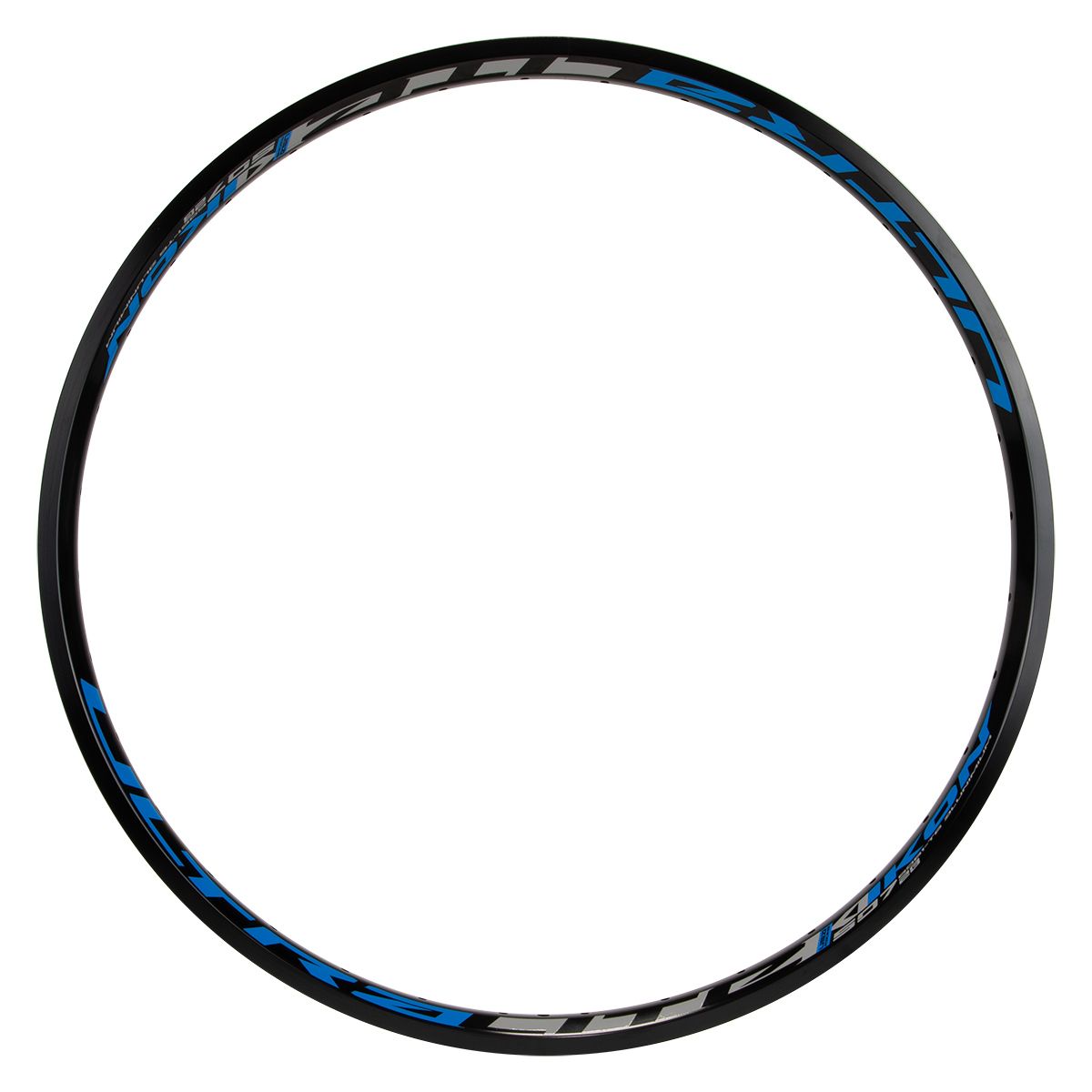

IKON Ultralite Rear Rim 507x28 36H

Made of 6061 Aluminum with an anodized finish, IKON UltraLite rims are specially designed for the practice of BMX Racing in competition. They are available with 2 different aero rim profiles for the front or the rear depending on the type of braking used. In addition, they have slightly inclined holes, for a more direct angle offering a more rigid shelving.

FEATURES :
• Aluminum 6061-T6 double wall rim with anodized finish
• Optimized geometry for light weight and better resistance
• Dimensions: 507x28mm (24"x1.50"/1.75")
• Rear profile with CNC machined braking surface sidewalls
• Tubeless Ready
• Width: 28mm
• Height: 18.8mm
• ERD: 487mm
• Drilling: 36 holes
• Valve: Presta F/V
• Weight: 403g

V-BRAKE COMPATIBLE
Maximum recommended pressure: 110Psi / 7.58 bar
Recommended spoke tension: ≤115KGF

More details



65,99 € Tax incl.

Recommended retail price : 65,99 € TTC

Availability :

Reference Bar Code Colors Unit price Avail. Quantity
IKORIMS176 711484500756 Black-Neon Yellow
65,99 €
IKORIMS177 711484500800 black-red
65,99 €
IKORIMS178 711484500817 black-blue
65,99 €
IKORIMS175 711484500787 black-white
65,99 €

IKON UltraLite Alloy are specifically designed for BMX Racing. IKON is offering 2 unique rim profiles, one for the Brakeless Surface and one for the Brake Surface Rim.The light weight, double walled rim has slightly angled spoke nipple openings, for a more direct spoke/nipple angle that helps offer a stronger wheel build. The Brakeless surface rim features an aero design, while the Brake Surface rim has a machined brake tack for better stopping power. Both rims feature a brilliant finish obtained by a double polished method and then beautiful anodized in Black. We finish off the look with a Water Transfer Graphic that is offered in 4 colors on the Black rim, giving you one of the best looking and lightest rims for BMX racing made today!

Tubeless Ready System : IKON rims feature a Bead Lock System, needed for the rim to be Tubeless Ready. With the installation of additional items needed you can get the rim ready for tubeless set up, along with the usage of a tubeless specific tire. With a tubeless set up, you can lighten up your wheels, saveing rotational weight, as well as have a sealant inside your tubeless ready tire to help automatically repair small punctures. Additional items needed to convert to a Tubeless system include Special Valve, Sealant Rim Tape, and Liquid sealer.

YOU MIGHT ALSO LIKE

FEATURES

Materials Aluminium
Sizes 24 x 1.75
Wheel types Rear
Spokes 36
Wheel Diameter 507
Brake surface With
Tire Types Tubeless ready
