ONYX helix 8mm Front hub 36H

The ONYX Helix front hub offers young BMX riders the famous quality of ONYX products made in the USA: high-end machined aluminum and hybrid-ceramic bearings that have a very low coefficient of friction and excellent power transfer.

• CNC machined and perforated 7075-T6 aluminum body
• Sealed hybrid-ceramic bearings

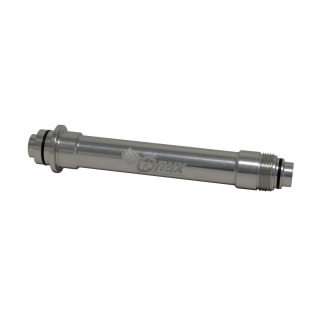

• Aluminum axle body
• M6 BTR screw tightening
• Axle diameter: 8mm
• Width: 100mm
• Drilling: 36 holes
• Weight: 165g

NOTE: color shade may vary slightly depending on production run

ONYX hubs require regular maintenance to maintain full operation
ONYX Maintenance Videos


More details

SALE !-75%

62,25 € Tax incl.

Recommended retail price : 249,00 € TTC

Availability :

Reference Bar Code Colors Unit price Avail. Quantity
ONYHUBS009 151424420094 White
62,25 €
249,00 €
ONYHUBS023 151424420230 Neon orange
62,25 €
249,00 €

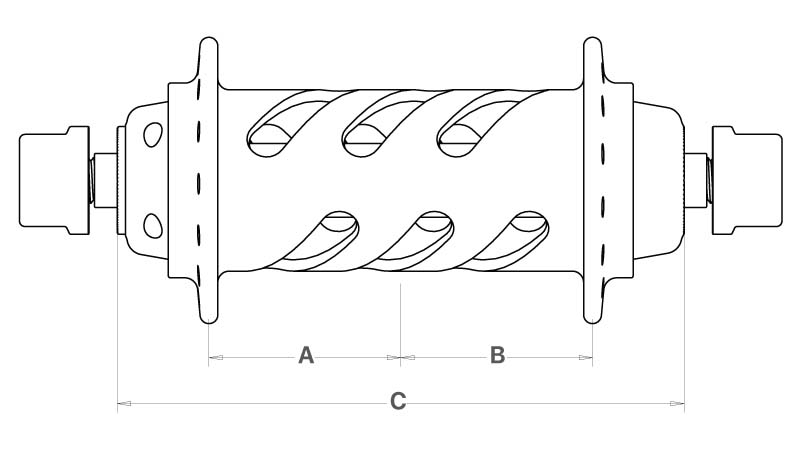

A - Hub Center To Flange Center, Non-Drive Side 33.8mm
B - Hub Center To Flange Center, Drive Side 33.8mm
C - Axle Width 100mm
Spoke Hole Circle Diameter, Drive Side 42mm
Spoke Hole Circle Diameter, Non-Drive Side 42mm
Spoke Hole Counts 36
Spoke Tension 120kgf Max



Wheel types Front
Axle Diameters 8mm
Spokes 36
Bike types BMX
